Setting The Sample Rate and Master Clock Source
2
In the upper right-hand corner, select the master Sync Clock for your system. Options are: INTERNAL,
VIDEO, and WORD DI. If using WORD DI (Digital Input), press the REF WORD IN button in order
to select the reference source from the pull-down menu. (See Figure 4) The DMX-R100 is able to derive
master clock from its word clock input (REF WORD IN), or from AES/EBU signal arriving at its 2TR
IN2 or AUX RETURNS 5 - 8, or from digital signal arriving at any two channels of any expansion card
slot providing digital audio input.
3
The current sample rate is shown in the upper left-hand corner. If you wish to use a sample rate other
than the current one, select it (options are: 44.1, 48, 88.2, and 96 kHz) and then press the CHANGE
button. (NOTE: the CHANGE button only becomes active when a new sample rate is selected, and
the DMX-R100 does not actually change its sample rate until the CHANGE button is pressed).
4
If you have not changed the sample rate from its current setting, skip ahead to the next exercise.
5
If you have changed the sample rate by selecting a new one and then pressing the CHANGE button,
the following dialog will appear: (See Figure 5)
6
Press YES to accept the new sample rate (in which case the DMX-R100 will go through a complete new
power-up cycle and reboot) or press CANCEL to return to the previous sample rate.
1-4
Chapter 1 Getting Started

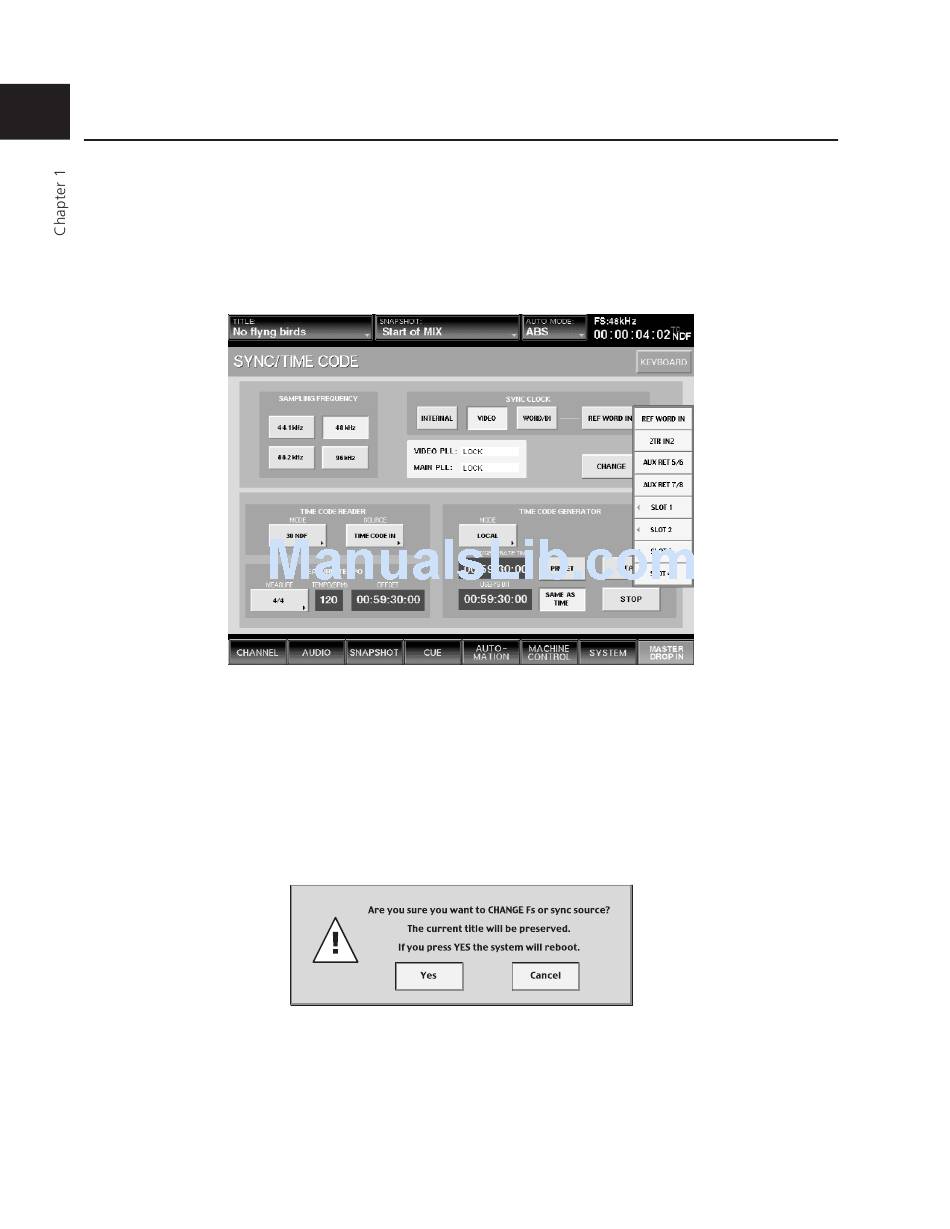

Figure 4
