Alternatively, if a standalone clock signal generator or video house sync ("blackburst") system is available, the
DMX-R100 (and all other interconnected digital audio devices) can be slaved to it, either via its reference video
or word clock input. These settings are determined in the Sync/Time Code Window; for more information, see
Chapter 3 in the DMX-R100 Operating Instructions. (See Figure 9))
House Sync Generator
DMX-R100
REF VIDEO REF WORD
(AUTO 75Ω) IN
75Ω
ON OFF
Word Clock In
Digital
Device #1
Word Clock In
Digital
Device #2

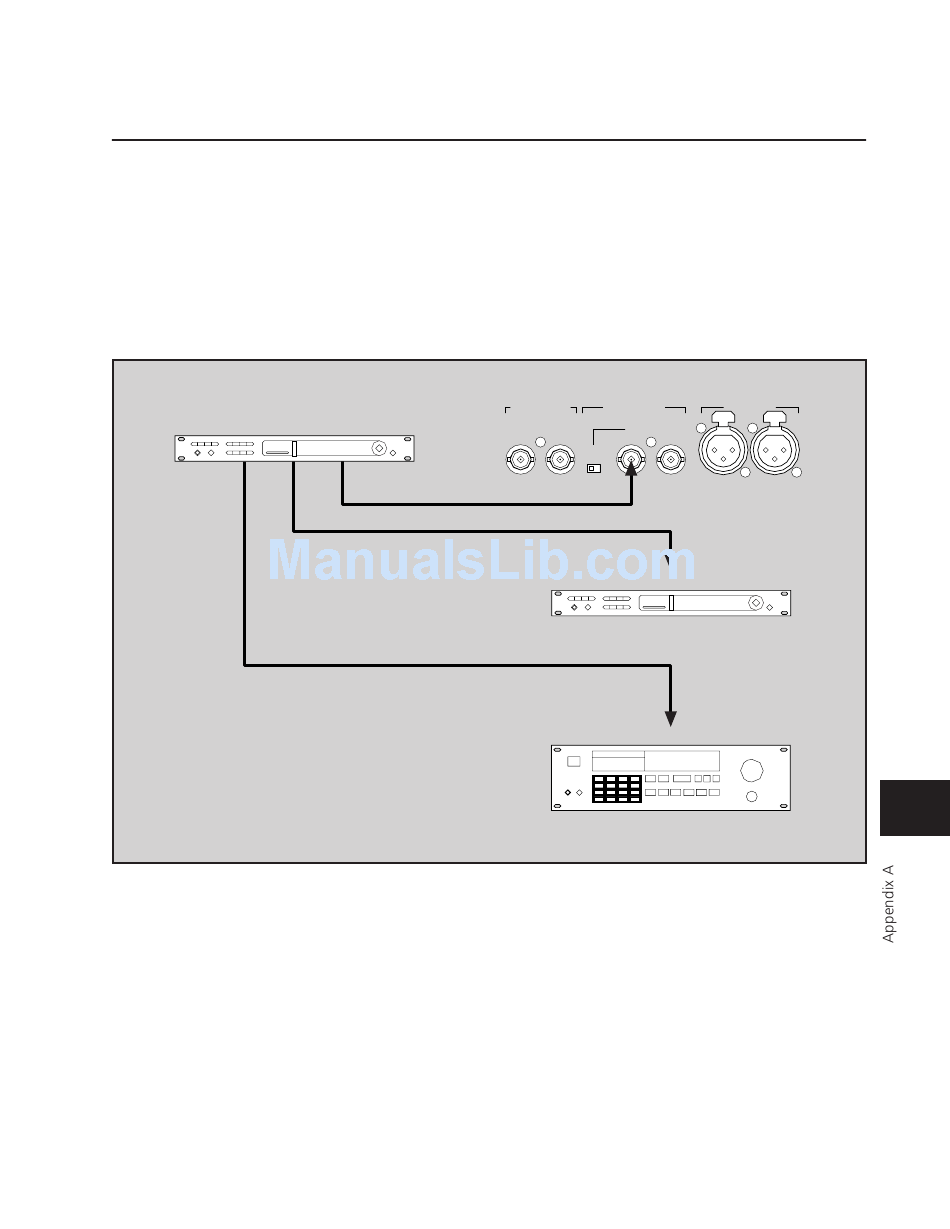

Figure 9
