Sony DMX-R100 Quick Reference page 17

Matrixing System

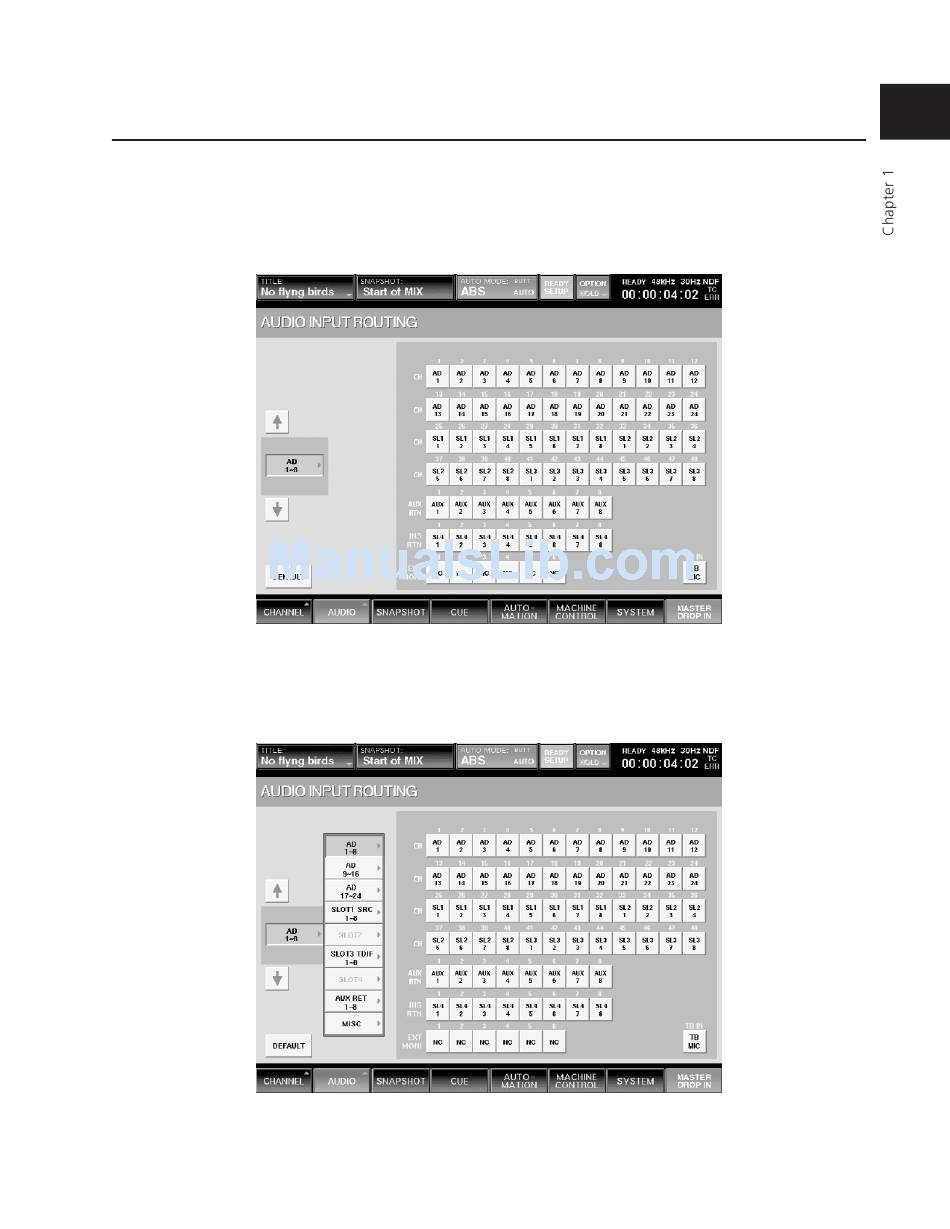

The basic procedure for using the Input Routing Window is as follows:
1
Press the AUDIO tab at the bottom of the touchscreen, then select INPUT ROUTING. The Input
Routing Window appears. (See Figure 13)
2
Press the SOURCE button on the left of the screen. A menu of possible sources (in groups of 8; the
exact listing will depend upon the number and types of expansion cards installed in your DMX-R100) will
drop down. (See Figure 14)
Figure 13
Figure 14
Chapter 1 Getting Started
1-13
