Creating Bus Inserts

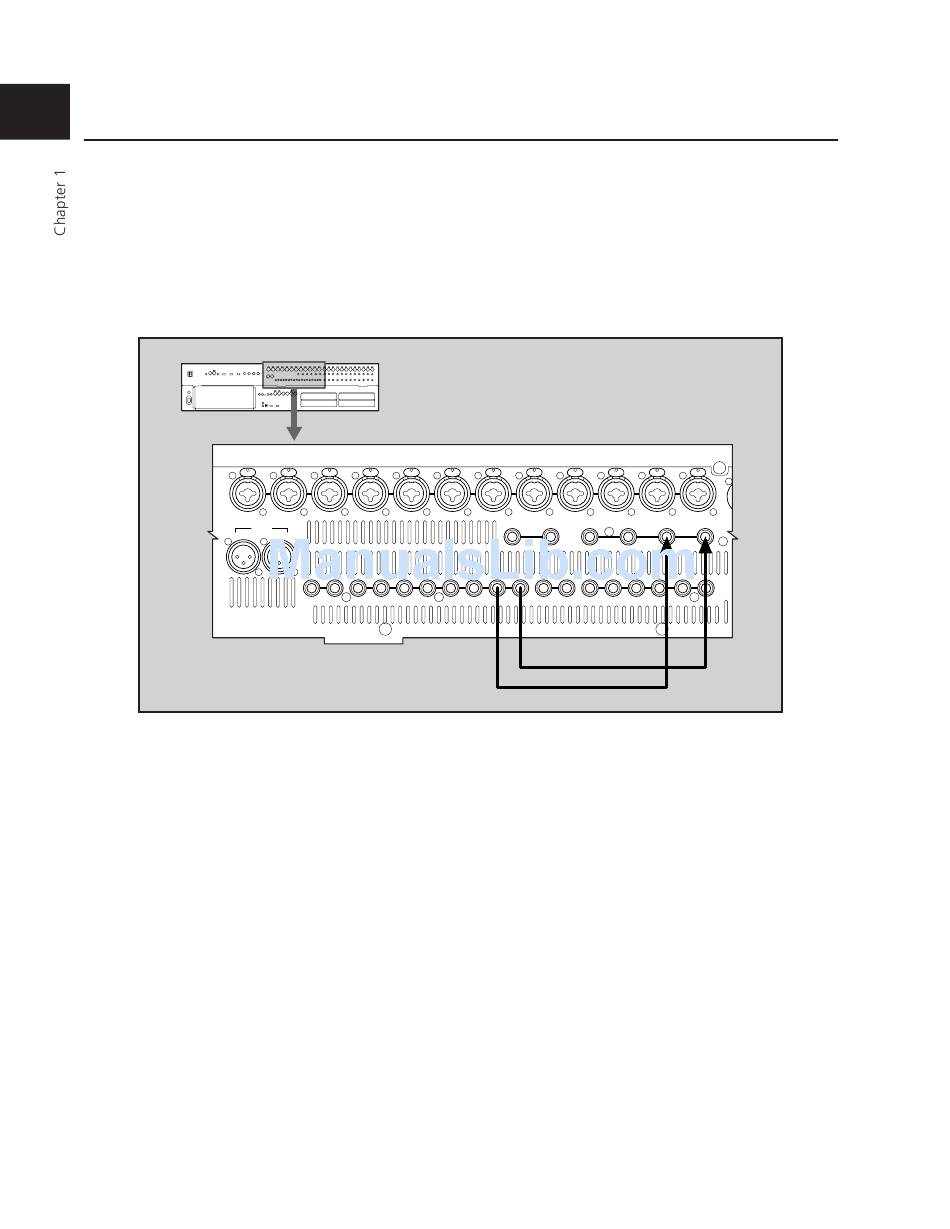

Important Note: If a bus insert is IN, signal must physically get from return to send; otherwise, you
won't hear any sound. In this exercise, Aux Sends 1 and 2 were designated as Insert sends for the PGM
bus, and Aux Returns 1 and 2 were designated as Insert returns, so you must make a physical connection
from send to return (with any desired outboard gear patched in-between) in order for audio to appear in
the PGM bus. (See Figure 32)
