Channel Windows
Touching each section in the main Channel window brings up a secondary Channel window that shows that
function in greater detail. For example, touching any area in the bus assignment section (top center of the
screen) takes you to the Input/Pan/Assign window (which can also be accessed by pressing the CHANNEL tab
at the bottom of the touchscreen, then selecting INPUT/PAN/ASSIGN. (See Figure 34)
Similarly, touching any area in the equalizer section takes you to the EQ / Filter window (also accessed by press-
ing the CHANNEL tab at the bottom of the touchscreen, then selecting EQ/FIL). (See Figure 35)
1-26
Chapter 1 Getting Started

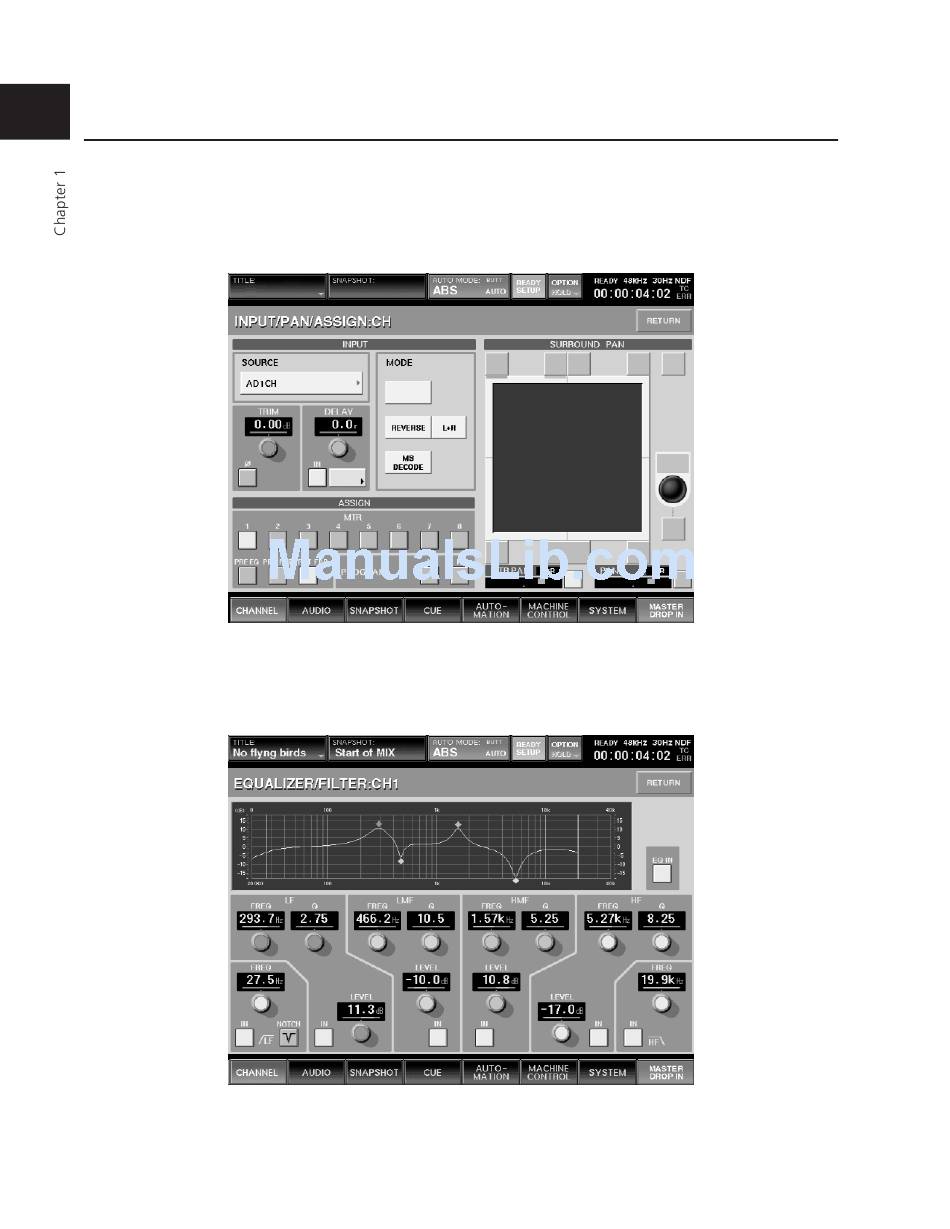

Figure 34
Figure 35
