Sony DMX-R100 Quick Reference page 23

Matrixing System
5
To route that bus to Aux Send 2 as well, simply press the Aux Send 2 button. The left PGM bus output
will now appear at both the Aux 1 and Aux 2 send output connectors. (See Figure 23)
6
You can also make output assignments in blocks. To do so, simply press the desired BUS button once
only, then press the OUTPUT button of the first of the contiguous output connectors you wish to make
the assignment to. For example, to assign Direct Outputs 41 - 48 to the Slot 1 output, press the
DIRECT OUT 41 - 48 BUS button once, then press the first of the eight Slot 1 outputs. (See Figure 24)
Note that all default settings (MTR bus outputs to the equivalent slot outputs, Aux Sends to Aux Send connec-
tors, PGM bus to PGM bus output connectors) can be instantly restored simply by touching the DEFAULT
button on the lower left-hand corner of the screen.

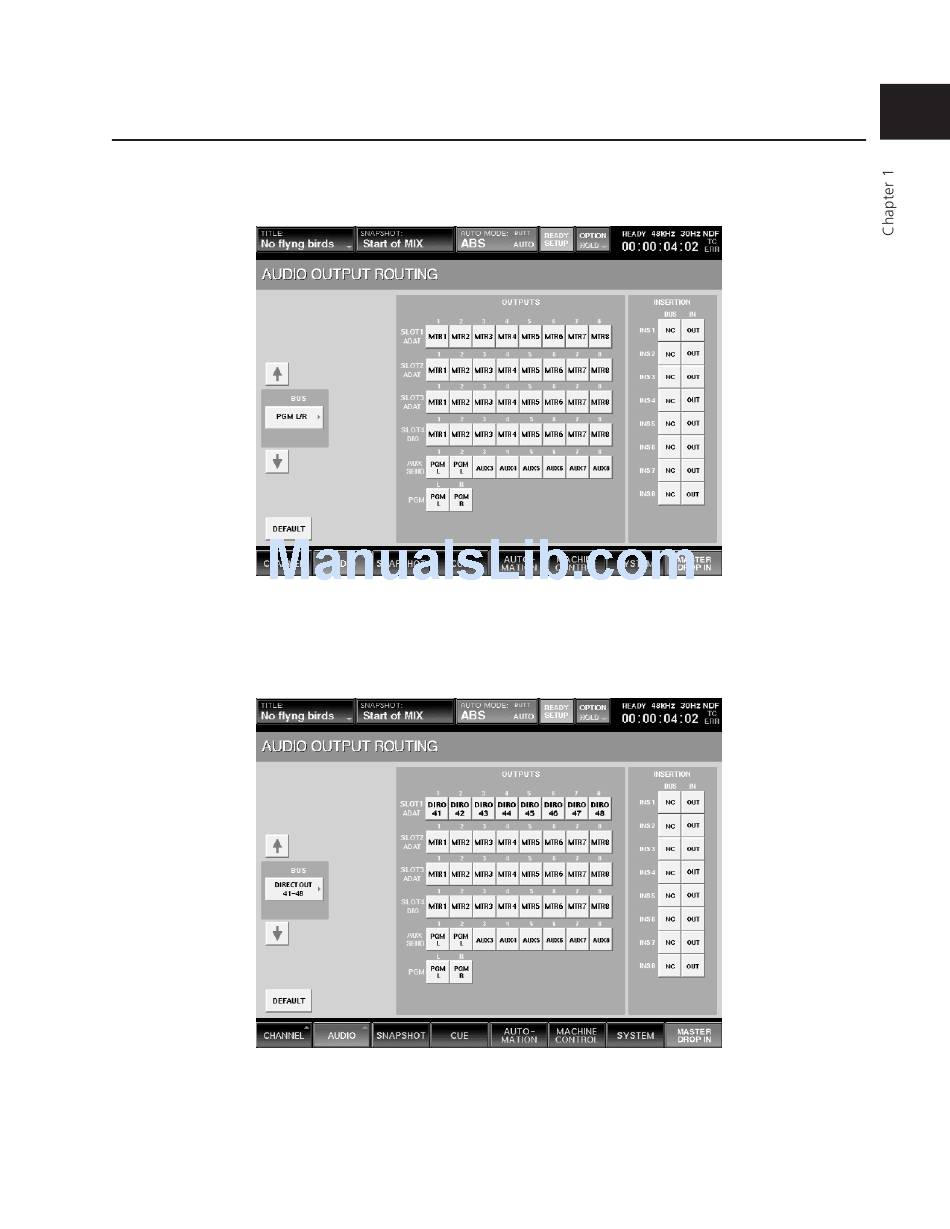

Figure 23
Figure 24
Chapter 1 Getting Started
1-19
