Control Groups
7
Move the Channel 1 fader; note that the faders for Channels 2, 3, and 4 also move, but with their relative
levels intact. Now try moving the faders for Channels 2, 3, and 4 in turn; note that any of these faders
can act as "master," effecting the level of all four channels.
8
Finally, we'll place channels 5, 6, 7, and 8 into a VCA fader control group. Press the Mode button for
GROUP3 repeatedly until it reads VCA. Then press the ON/OFF button for GROUP3 so that it reads
ON. Touch the buttons for Channels 5, 6, 7, and 8: the words "GP3" appear in each, indicating that
each of these channels have now been placed in Group 3, which has been designated as a VCA fader con-
trol group. (See Figure 10)

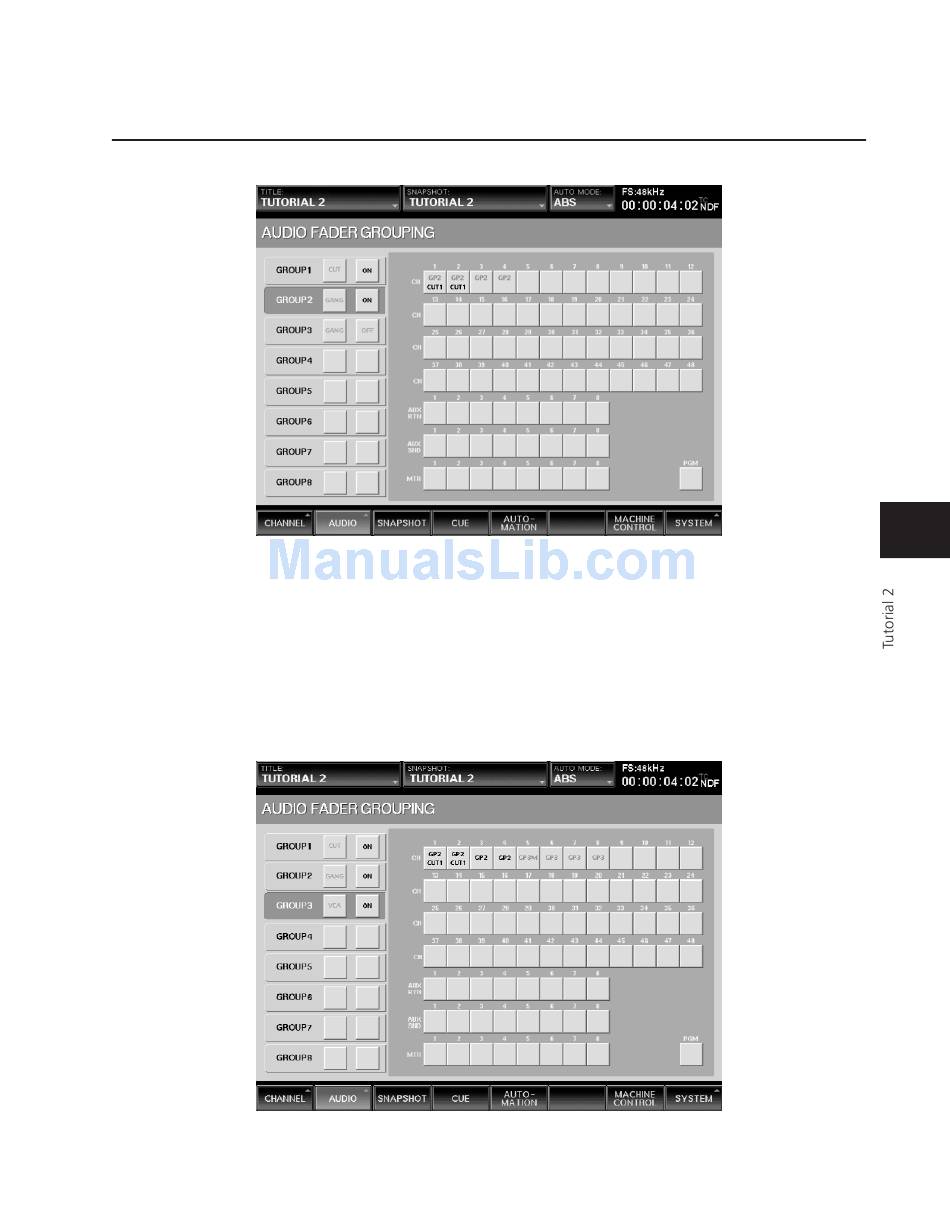

Figure 9
Figure 10
Tutorial 2 Mixing Session (Non-Automated Mixing)
T2-11
