Sony DMX-R100 Quick Reference page 15

SNAPSHOTS
Alternatively, the Isolate buttons allow you to not recall the Snapshot data for a specific channel or channels.
For example, to recall all data from a stored Snapshot except the data for channel 1, press the CH 1 button in
the Isolate Channel section at the right of the touchscreen so that it lights green (see Figure 12) and then press
RECALL. (See "Snapshot Window" in Chapter 3 of the Operating Instructions for a full explanation of all the
Isolate Channel buttons.)

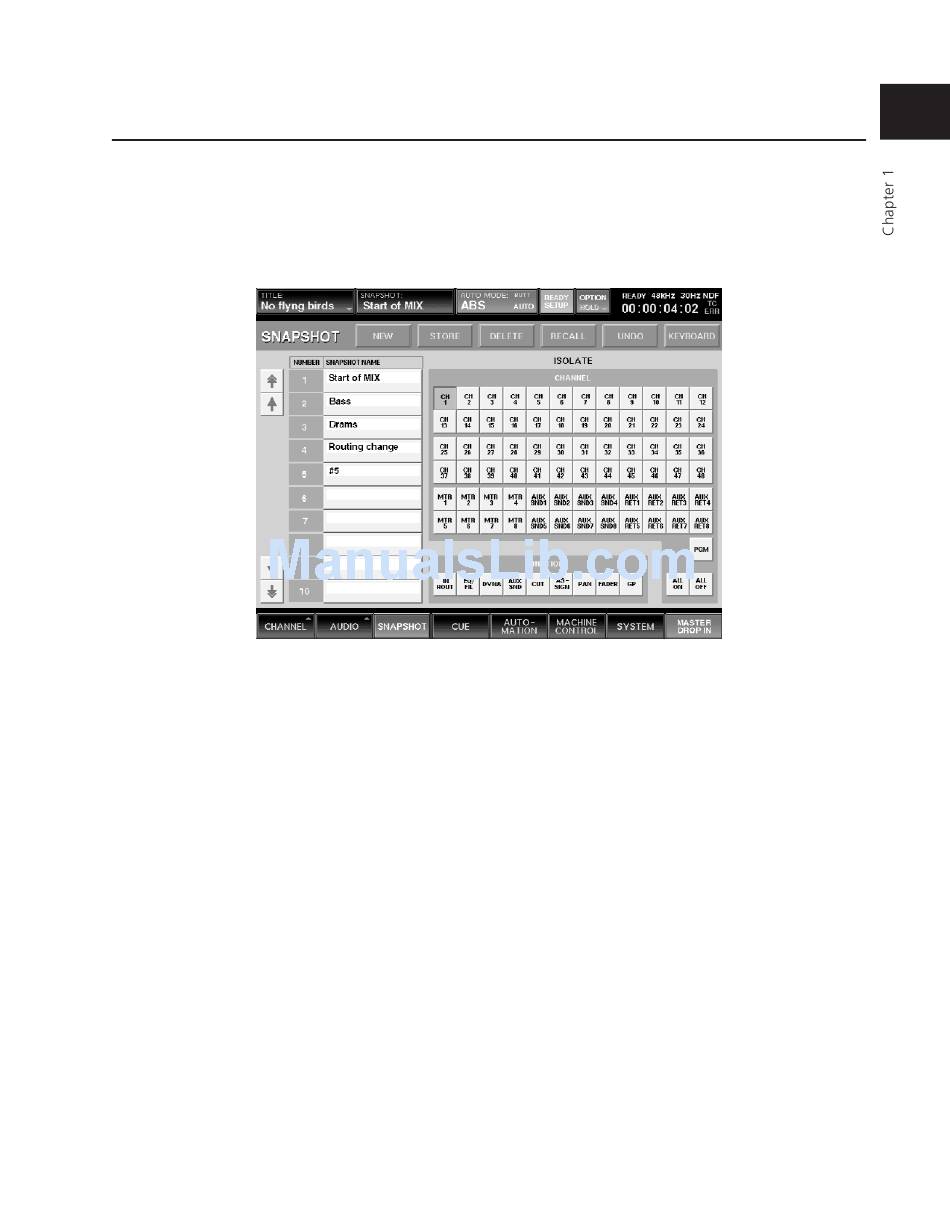

Figure 12
1-11
Chapter 1 Getting Started
