Sony DMX-R100 Quick Reference page 18

Matrixing System
3

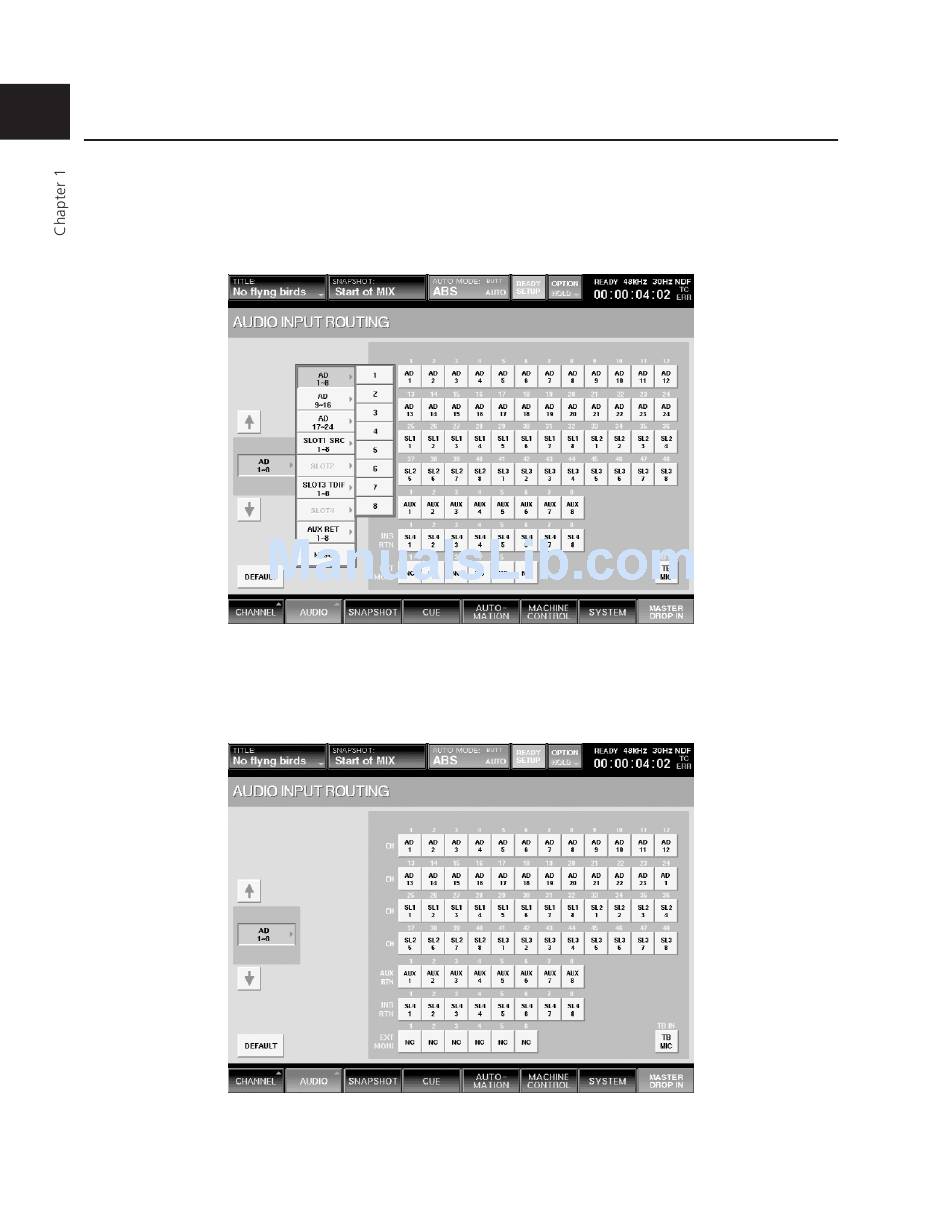

If you press a SOURCE selection a second time, a second drop-down menu will appear. This menu lists
all of the independent sources within that group of 8. For example, press the AD 1-8 button and you will
see a listing of the first 8 AD inputs (the head amp connectors). (See Figure 15)
4
To complete the patching, press a Channel button at the right of the screen to assign the selected input to
that channel. For example, press the AD 1 input, and then press Channel 24. The signal connected to
the first head amp will now appear on input channel 24. (See Figure 16)
1-14
Chapter 1 Getting Started
Figure 15
Figure 16
