Sony DMX-R100 Quick Reference page 21

Matrixing System
The basic procedure for using the Output Routing Window is as follows:
1
Press the AUDIO tab at the bottom of the touchscreen, then select OUTPUT ROUTING. The Output
Routing Window appears. (See Figure 19)
2
Press the BUS button on the left of the screen. A menu of possible buses will drop down. (See Figure 20)

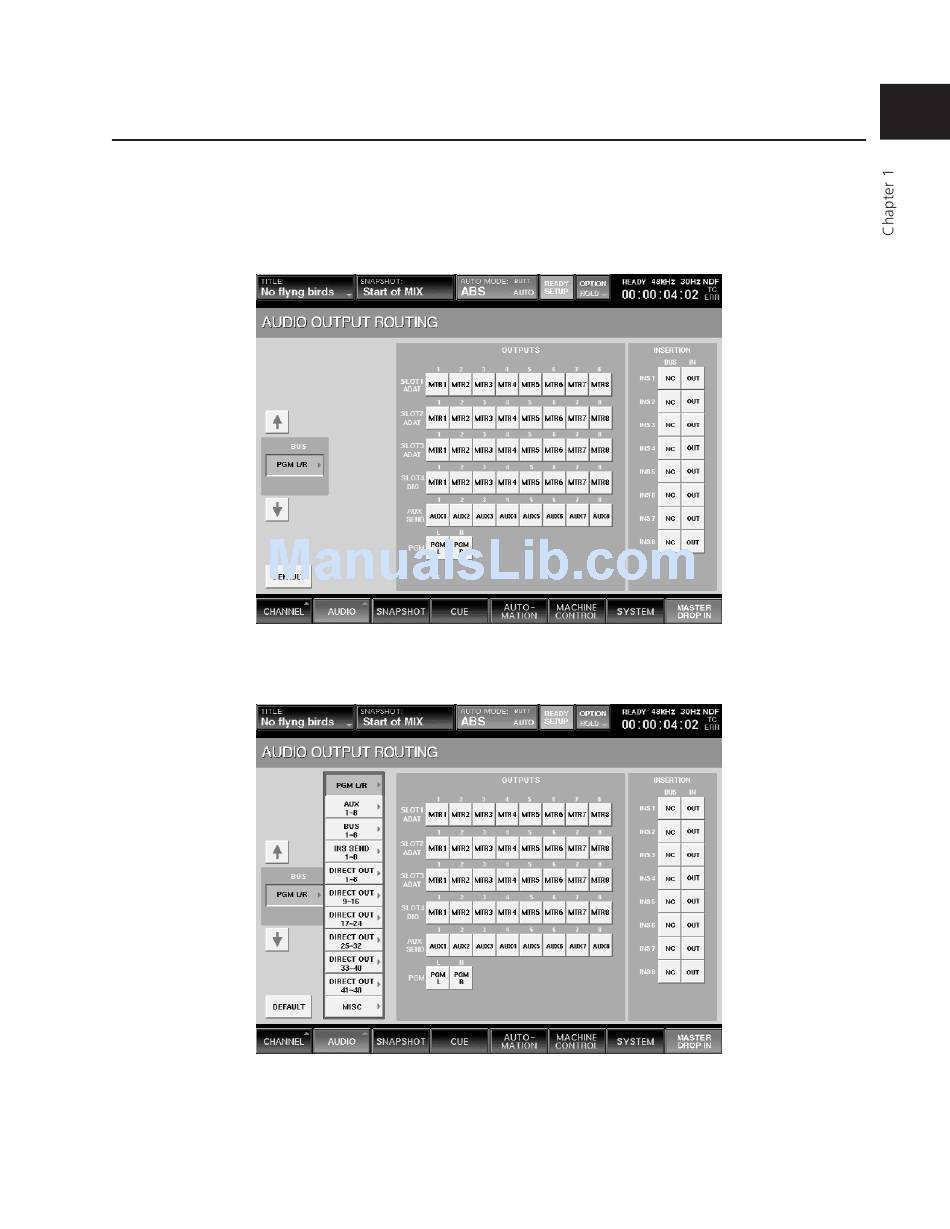

Figure 19
Figure 20
Chapter 1 Getting Started
1-17
