Sony DMX-R100 Quick Reference page 25

Creating Bus Inserts
3
Now press R in the Bus drop-down menu, and press INS 2 in the Insertion section. PGM R will be
selected for Insert 2, which will be set IN. (See Figure 26)
4
Now that the Inserts are set, the next step is to select the physical output connectors to use as the Insert
sends. To set Aux 1 as the Insert 1 send, press INS SEND 1-8 in the Bus section twice so that the drop-
down menu (1 - 8) appears. (See Figure 27)

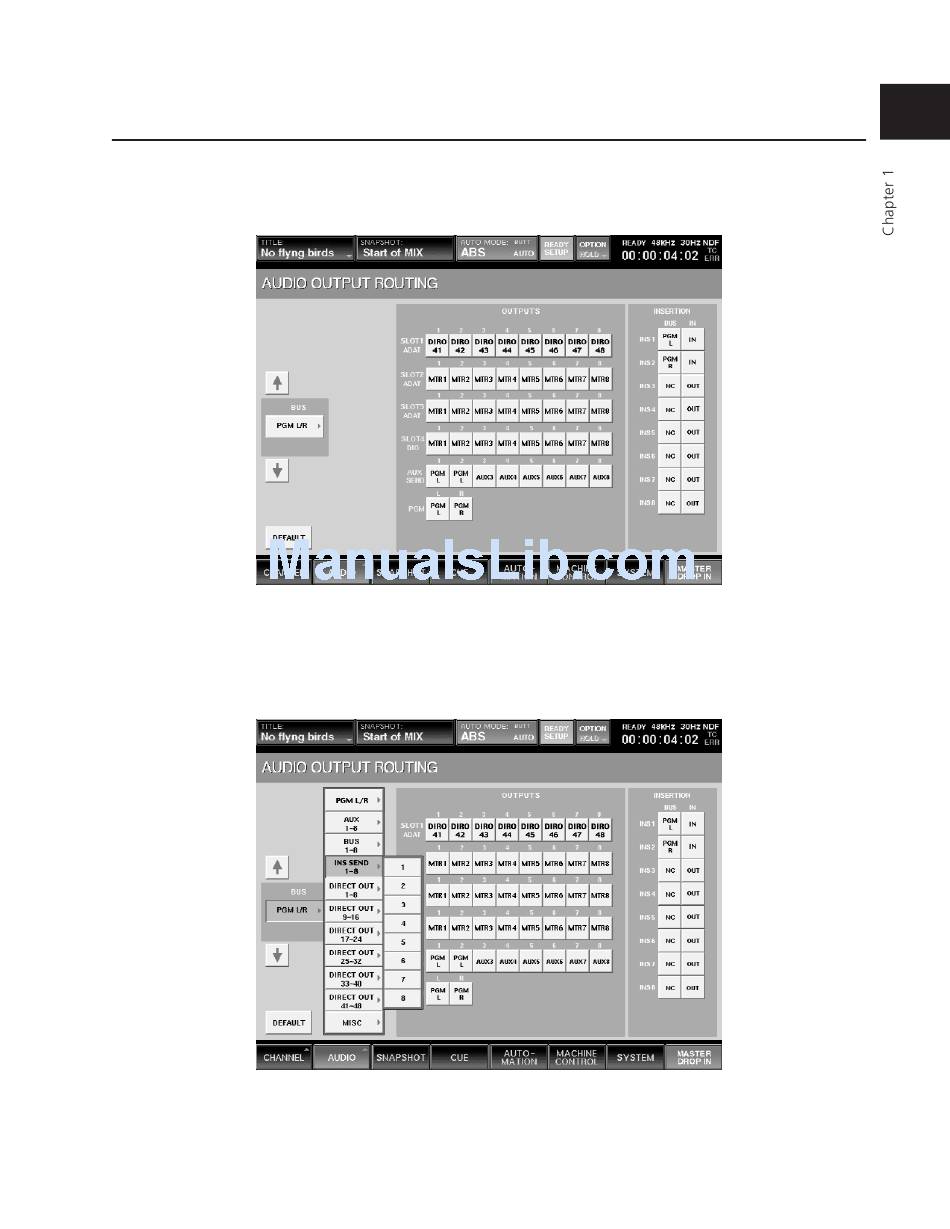

Figure 26
Figure 27
Chapter 1 Getting Started
1-21
