Creating Bus Inserts
7
The final step is to select the physical input connectors to use as the Insert returns. Press the AUDIO tab
at the bottom of the touchscreen, then select INPUT ROUTING. The Input Routing Window appears.
Press AUX RET 1-8 in the Source section twice so that the drop-down menu (1 - 8) appears.
8
From the drop-down menu, press 1, then press the INS RTN 1 button in the Channels section (right-
hand side of the screen). Aux 1 will be selected for Insert Return 1. (See Figure 30)
9
Now press 2 in the AUX RET 1-8 Source drop-down menu, then press the INS RTN 2 button in the
Channels section. Aux 2 will be selected for Insert Return 2. (See Figure 31)

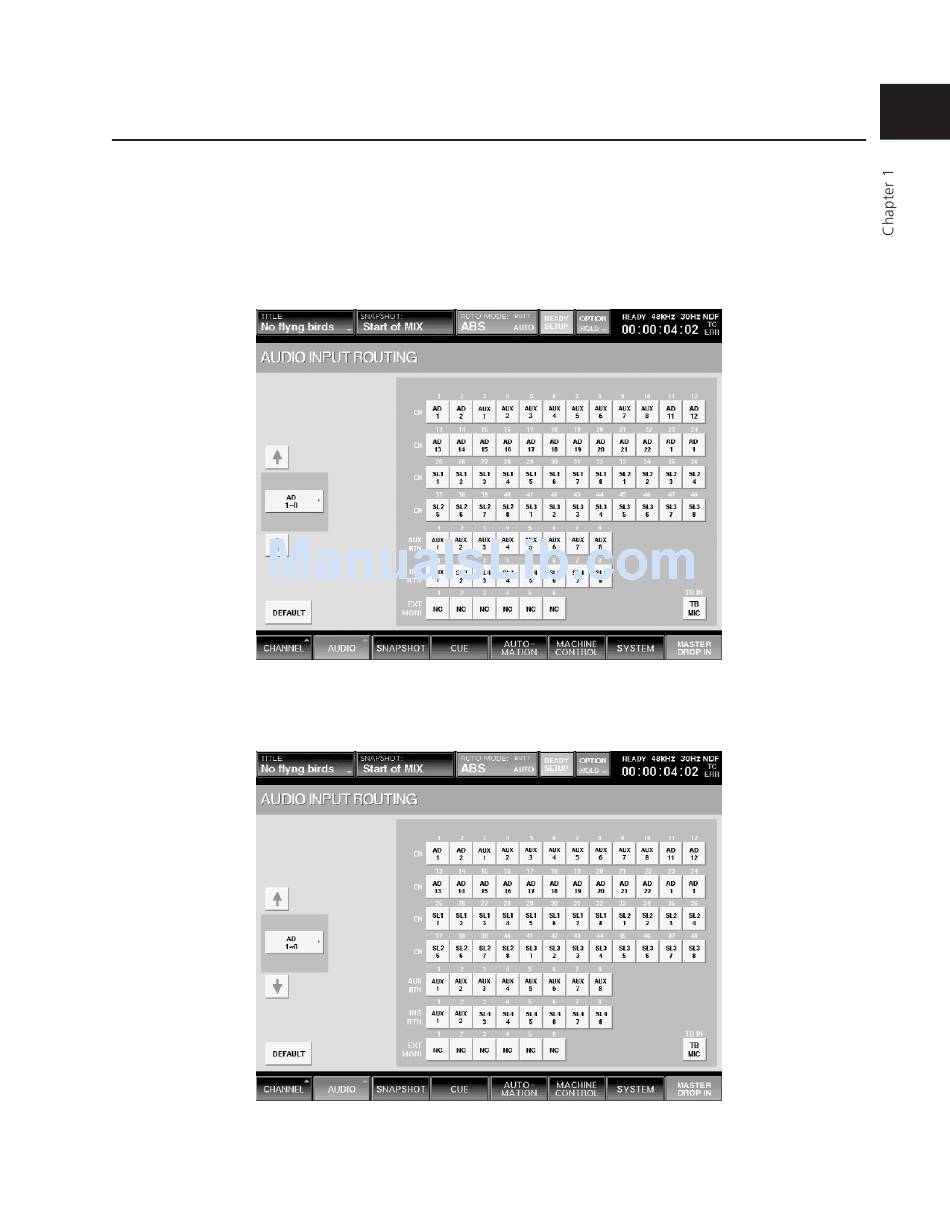

Figure 30
Figure 31
