Sony DMX-R100 Quick Reference page 19

Matrixing System
5
To mult that signal to channel 23 as well, simply press the Channel 23 button. The signal connected to
the first head amp will now appear on both input channels 23 and 24. (See Figure 17)
6
You can also make input assignments in blocks of 8. To do so, simply press the desired SOURCE button
once only, then press the Channel button of the first of 8 channels you wish to make the assignment to.
For example, to assign the signal arriving at Aux returns 1 - 8 to channels 3 - 10, press the AUX RET 1-8
Source button once, then press Channel 3. (See Figure 18)
Note that all default settings (AD 1 to Channel 1, AD 2 to Channel 2, etc.) can be instantly restored simply by
touching the DEFAULT button on the lower left-hand corner of the screen. Also, because the internal
Talkback mic appears as both a Source and a Channel (lower right-hand corner of the screen), you can easily
route its signal to any Channel(s), or, conversely, can use any input as the Talkback mic source.

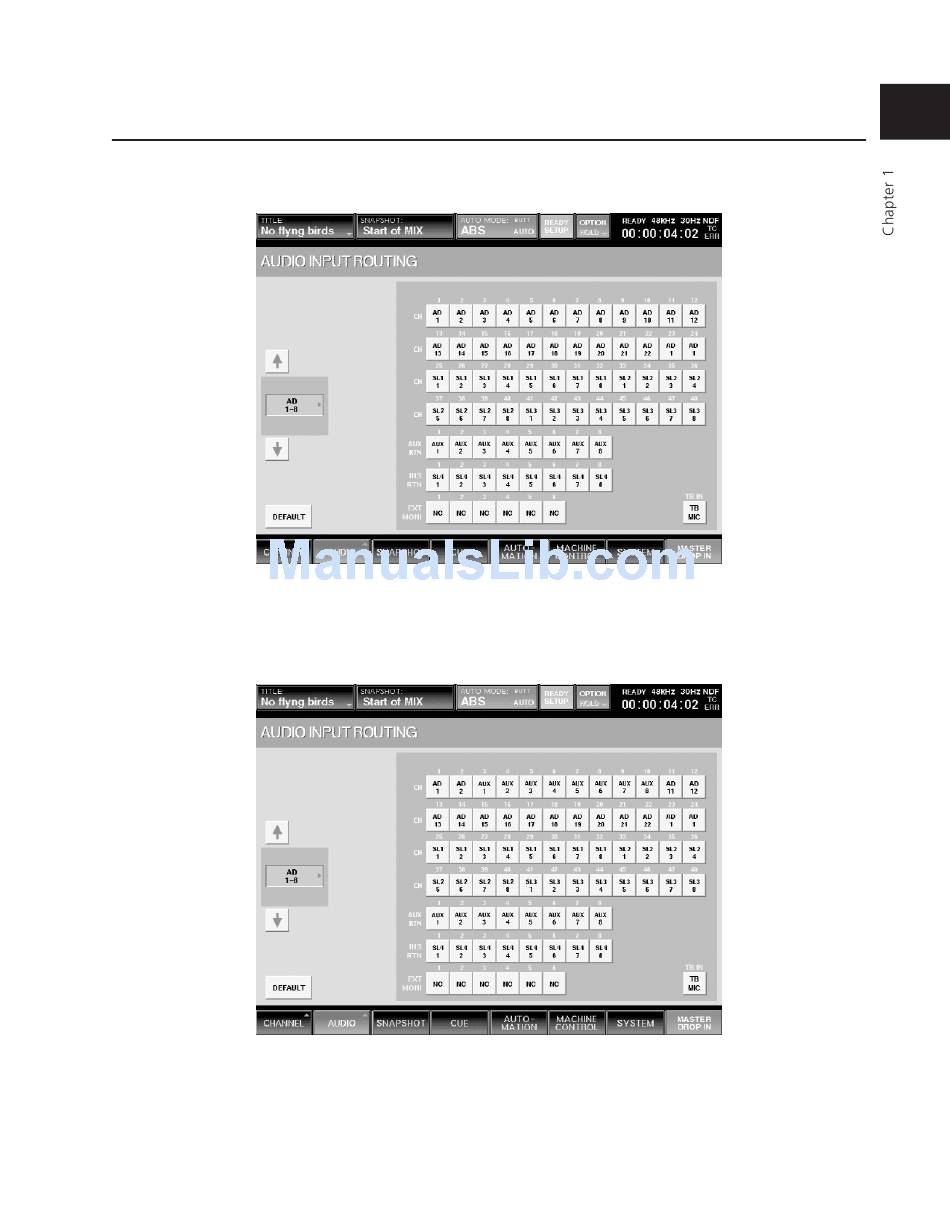

Figure 17
Figure 18
Chapter 1 Getting Started
1-15
