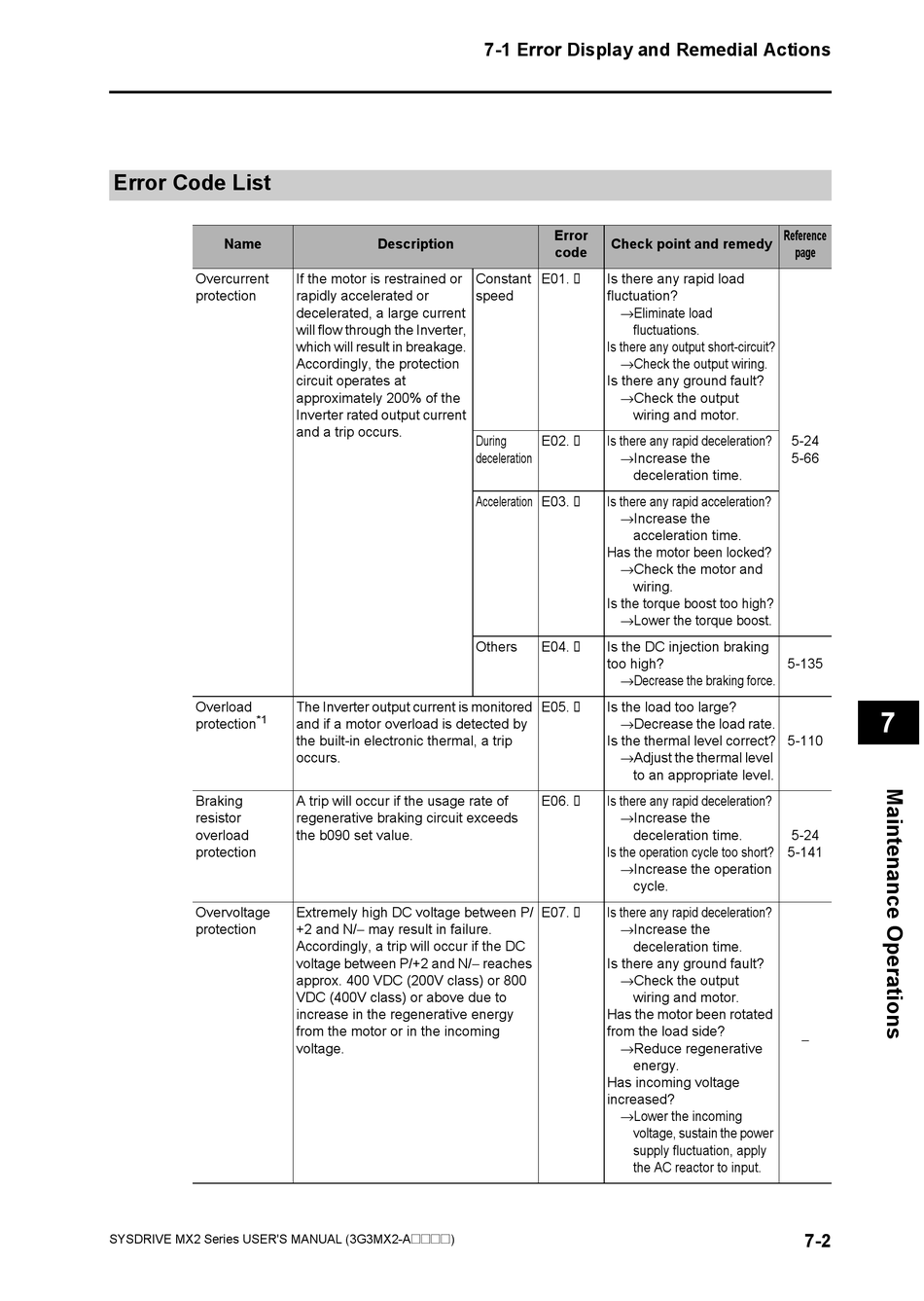

Error Code List

Name
Overcurrent
protection
Overload
*1
protection
Braking
resistor
overload
protection
Overvoltage
protection
SYSDRIVE MX2 Series USER'S MANUAL (3G3MX2-A@@@@)
Description
If the motor is restrained or
rapidly accelerated or
decelerated, a large current
will flow through the Inverter,
which will result in breakage.
Accordingly, the protection
circuit operates at
approximately 200% of the
Inverter rated output current
and a trip occurs.
The Inverter output current is monitored
and if a motor overload is detected by
the built-in electronic thermal, a trip
occurs.
A trip will occur if the usage rate of
regenerative braking circuit exceeds
the b090 set value.
Extremely high DC voltage between P/
+2 and N/− may result in failure.
Accordingly, a trip will occur if the DC
voltage between P/+2 and N/− reaches
approx. 400 VDC (200V class) or 800
VDC (400V class) or above due to
increase in the regenerative energy
from the motor or in the incoming
voltage.
7-1 Error Display and Remedial Actions
Error
Check point and remedy
code
Constant E01. Is there any rapid load
speed fluctuation?
→Eliminate load
fluctuations.
Is there any output short-circuit?
→Check the output wiring.
Is there any ground fault?
→Check the output
wiring and motor.
During E02. Is there any rapid deceleration?
→Increase the
deceleration
deceleration time.
Acceleration E03. Is there any rapid acceleration?
→Increase the
acceleration time.
Has the motor been locked?
→Check the motor and
wiring.
Is the torque boost too high?
→Lower the torque boost.
Others E04. Is the DC injection braking
too high?
→Decrease the braking force.
E05. Is the load too large?
→Decrease the load rate.
Is the thermal level correct?
→Adjust the thermal level
to an appropriate level.
E06. Is there any rapid deceleration?
→Increase the
deceleration time.
Is the operation cycle too short?
→Increase the operation
cycle.
E07. Is there any rapid deceleration?
→Increase the
deceleration time.
Is there any ground fault?
→Check the output
wiring and motor.
Has the motor been rotated
from the load side?
→Reduce regenerative
energy.
Has incoming voltage
increased?
→Lower the incoming
voltage, sustain the power
supply fluctuation, apply
the AC reactor to input.
Reference
page
5-24
5-66
5-135
7
5-110
5-24
5-141
−
7-2
