Canon imagePROGRAF iPF8400S User Manual page 556

Loading the Rewind Spool on the Media Take-up Unit
Premium Matte Paper
*1: If you cannot retract stiff paper well using Weight Flange 1 or if the diameter of the retracted paper is wider than the Rewind
Spool, use Weight Flange 2. When using Weight Flange 2, adjust the paper feed amount by executing Auto(GenuinePpr) or
Auto(OtherPaper). (See "Automatic Banding Adjustment.")
Important
•
Note
17

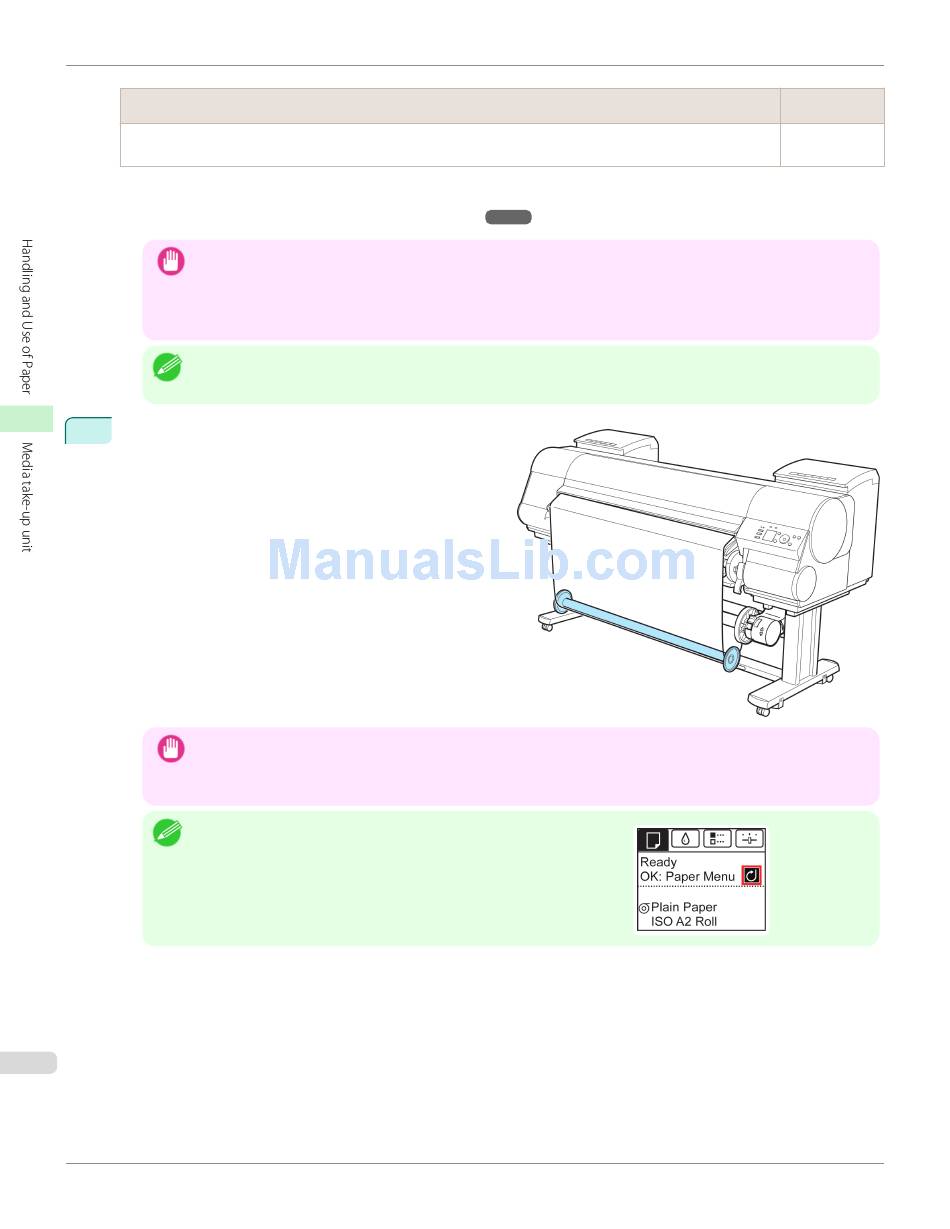

Set the Weight Roll gently on top of the slack in the roll
paper.
The media take-up unit is now ready for use. Printed
rolls can now be rewound automatically.
Important
•
Note
556
• Do not use combinations other than those identified here.
• Insert the Weight Flange and Weight Joint firmly on the Weight Roll.
• Use identical Weight Flange on the left and right ends. Insert matching Weight Flanges (1 or 2) on both ends of the
Weight Roll.
Keep unused weight rolls, weight joints, and weight flanges handy by putting them in the box and putting the box
under the Stand.
• Always set the Weight Roll on the paper. Failure to do this may cause rewinding problems.
• When setting the Weight Roll on the paper, avoid touching the paper core and causing the wound roll to become
misaligned on the left and right end. If it is misaligned on the left and right ends, a rewinding problem may result.
When the media take-up unit is in use, an icon indicating the take-up
mode is shown on the Display Screen.
Roll Type
P.775
➔
iPF8400S
Weight Flange to
Use
Weight Flange
2
User's Guide
