iPF8400S
h Cutter Unit Detachment Lever
Used when replacing the Cutter Unit.

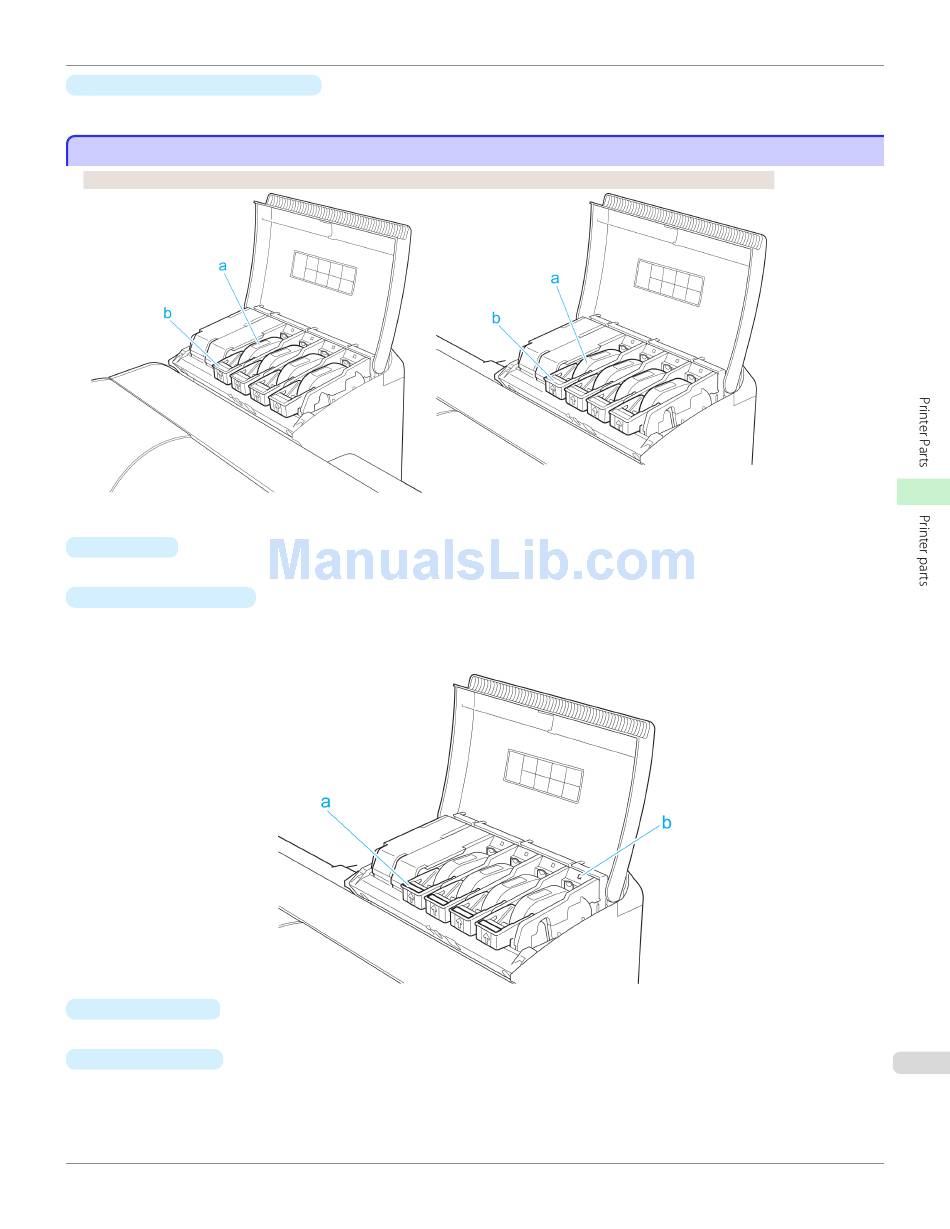

Ink Tank Cover (Inside)

Ink Tank Cover (Inside)

Left Side
*1: Note: The figure shows the printer as loaded with 700 ml (23.7 fl oz) Ink Tank.
a Ink tanks
Cartridges of ink in various colors.
b Ink Tank Lock Lever
A lever that locks the Ink Tank in place and protects it. Lift and lower the lever when replacing an Ink Tank. To
open it, lift the stopper of the lever until it stops, and then push it down toward the front. To close it, push it down
until it clicks into place.
a Ink Color Label
Load an Ink Tank that matches the color and name on this label.
b Ink Lamp (Red)
Indicates the state of the Ink Tank as follows when the Ink Tank Cover is opened.
User's Guide
Right Side
Ink Tank Cover (Inside)
663
