Cp Workgroup System With An Sb40C Storage Blade - HP Cluster Platform Express v2010 Overview

Note:
Compute nodes cannot be attached to the SB40c storage blade.

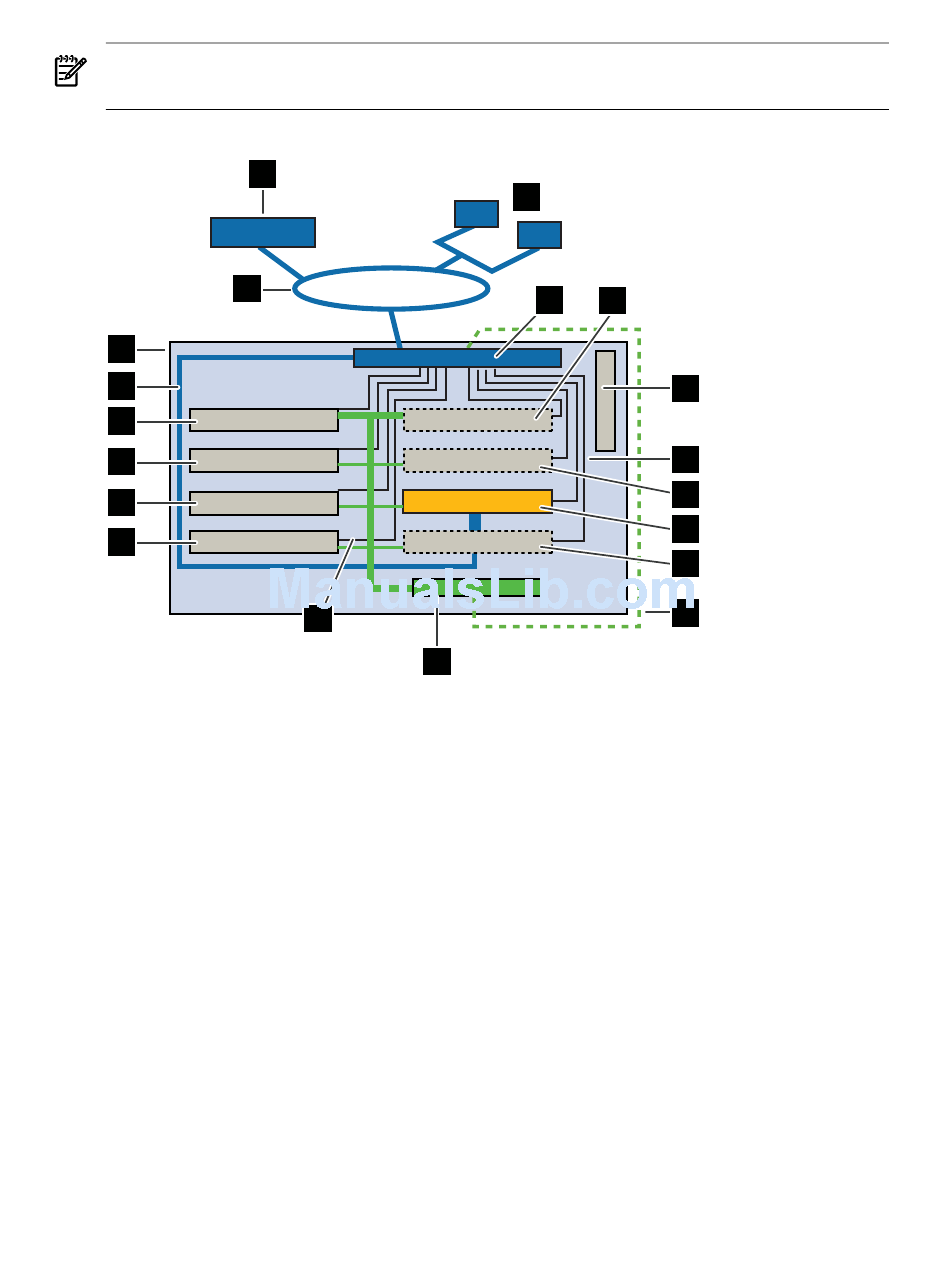

Figure B-3 CP Workgroup System with an SB40c Storage Blade
1
19
2
3
4
5
The following list describes the callouts in
1. c3000 enclosure
2. Compute node 2
3. Compute node 1
4. SB40c storage blade
5. Control node
6. Compute node 6
7. DVD drive installed in the external control node
8. Compute node 5
9. Compute node 4
10. Compute node 3
11. System interconnect and Administrative network
12. iLO access
13. Onboard Administrator (OA)
14. LAN or direct connect
15. External file sharing (CIFS, NFS)
16. Clients (such as an HP laptop)
17. HP GbE2c switch
18. Connection from control node NIC1 to the HP GbE2c switch
19. Connection from control node NIC2 to the HP GbE2c switch
66 CP Workgroup System Configuration Diagrams and Cabling Tables
15
14
18
16
17
13
Figure B-3:
6
7
1 1
8
9
10
12
