Zero-U Mounted Power Distribution Unit For C7000 Configurations - HP Cluster Platform Express v2010 Overview

The following list describes the callouts shown in
1. Installation screws and cage nuts secure the PDU to the side of the rack column, adjacent to
the rack's side panels for servicing.
2. The rack's front left column.
3. Main inlet power cable, connected to the site power supply.
4. Outlet power cables (up to 4) which connect to the power strips (see
5. Connector shield, providing support for the outlet power cables.
6. PDU main breaker switch.
7. Individual breaker switches (4).
8. Direction of view, towards the rear of the rack.
For reference purposes,
location.
Figure 1-2 Zero-U Mounted Power Distribution Unit for c7000 Configurations
2
1

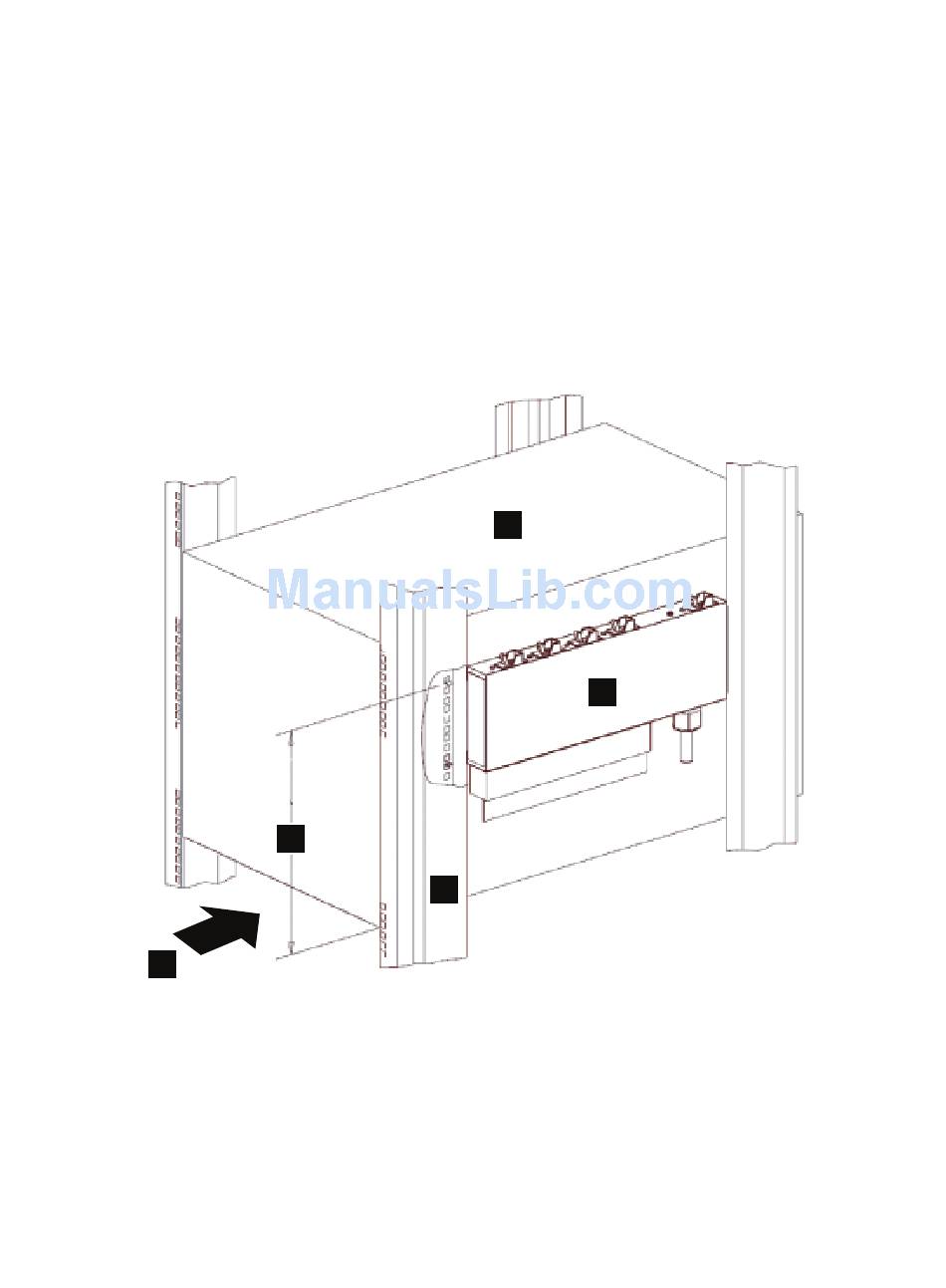

The following list describes the callouts shown in
1. Direction of view, towards the rear of the rack.
2. Place the PDU 1U down from the top of the c-Class enclosure.
3. Top of the c-Class server blade enclosure.
4. PDU component showing the main power switch, power cable, and four breakers. There is
a similar unit on the other side of the enclosure that is not shown in this figure. (There are
two PDUs for each enclosure.)
5. Right side of rack, rear column.
Table 1-1 provides the number of PDUs per rack, depending on the type of CPE configuration:
Figure 1-2 shows a CPE BladeSystem with c7000 configuration PDU
3
5
Figure 1-1:
4
Figure 1-2:
