Note:
Only one connection from each HP GbE2c switch to the HP ProCurve 2824 switch is required if
the optional InfiniBand network is present.

1.4.6.6 CPE BladeSystem Configurations with Double-Density Server Blade Control Node

Figure 1-17 shows a connections to an external network for configurations of c7000 enclosures
with a double-density server blade control node.
the connection scheme applies to all c7000 based configurations with a double-density server
blade control node. The control node is always installed in c7000 enclosure 1 which is the bottom
enclosure in the rack.

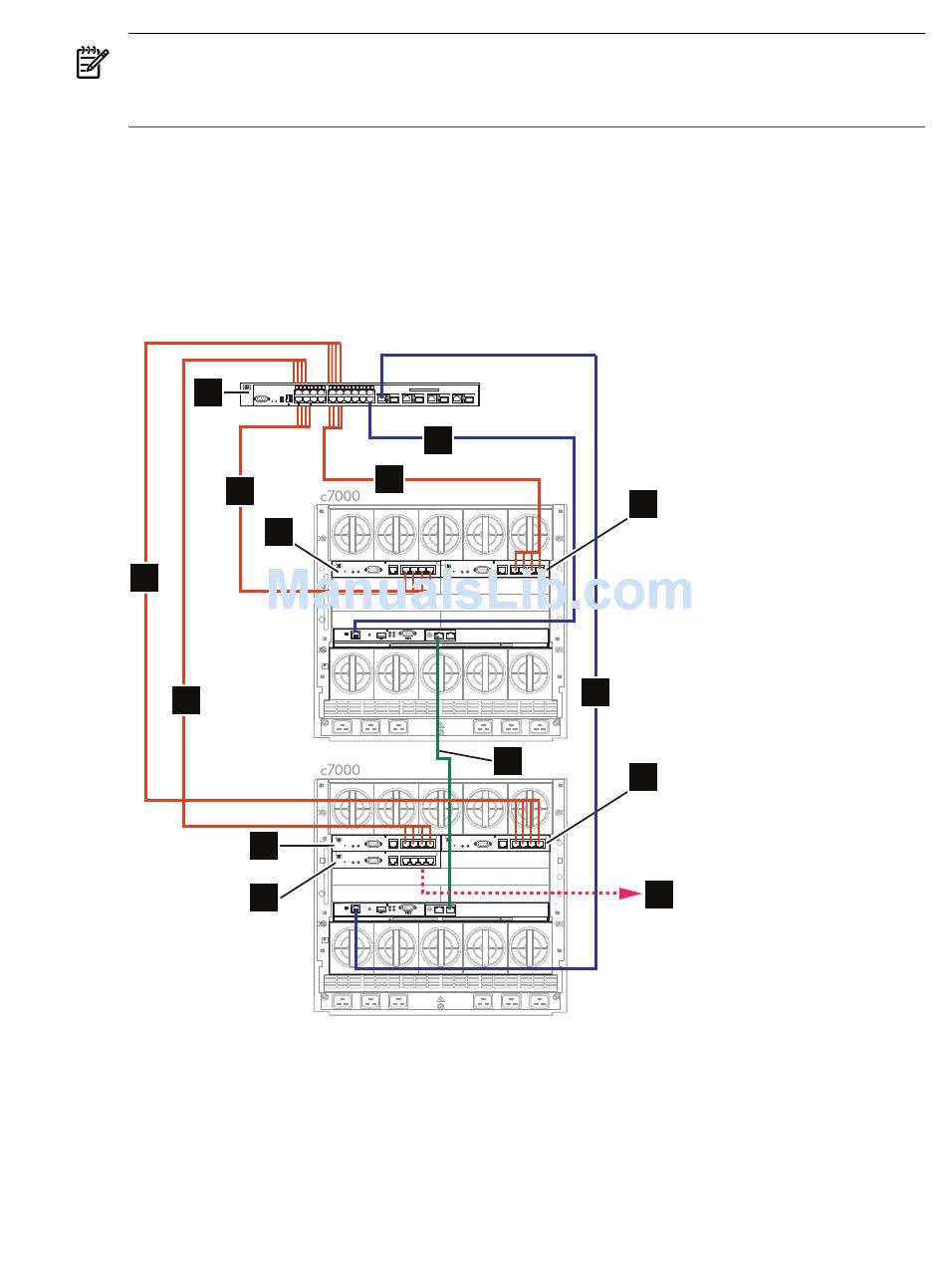

Figure 1-17 CPE BladeSystem Configurations with Double-Density Server Blade Control Node
2
1
3
The following list describes the callouts shown in
1. Four connections from an HP GbE2c switch installed in Interconnect Module Bay 2 (IMB2)
of the first HP BladeSystem c7000 enclosure to an HP ProCurve 2824 switch (see the following
note)
2. HP ProCurve 2824 switch
3. Four connections from an HP GbE2c switch installed in IMB2 of the first HP BladeSystem
c7000 enclosure to an HP ProCurve 2824 switch (see the following note)
4. Four connections from an HP GbE2c switch installed in IMB1 of the second HP BladeSystem
c7000 enclosure to an HP ProCurve 2824 switch (see the following note)
8
4
5
6
6
7
6
Figure 1-17
9
12
10
Figure 1-17:
shows two c7000 enclosures, but
1 1
13
14
1.4 CPE Architecture Overview 33
