Power Strips Used In Older Cpe Systems - HP Cluster Platform Express v2010 Overview

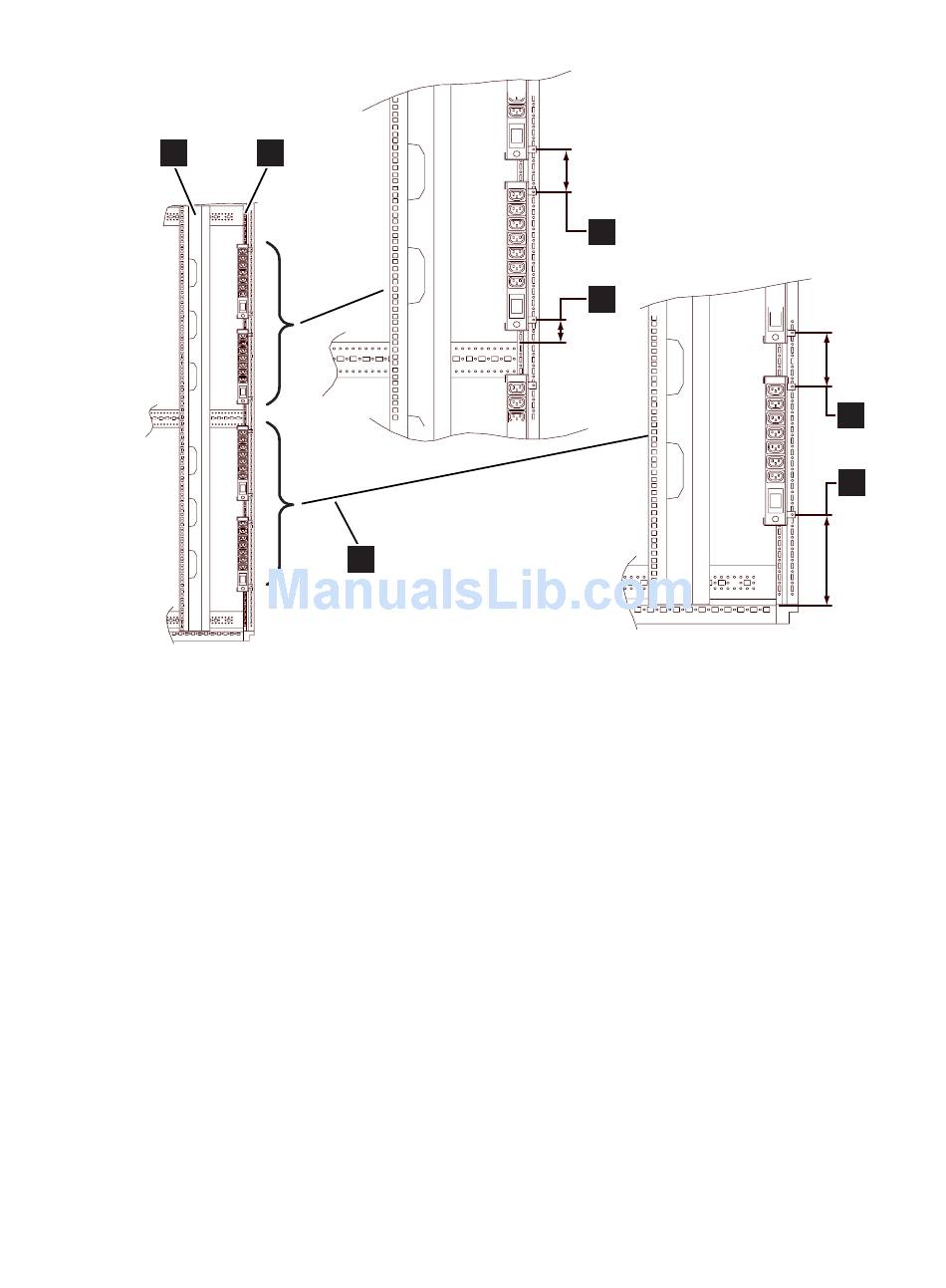

Figure 1-3 42U Power Strip Installation in a 42U Cabinet
6
Figure 1-3 shows the following PDU installation features:
1. The first power strip is located in the ninth hole from the bottom of the rack.
2. The second power strip is located in the fifth hole from the top of the first power strip.
3. The third power strip is located in the third hole from the center of the cabinet rail.
4. The fourth power strip is located in the third hole from the top of the third power strip.
5. This location is the same on 22U cabinets.
6. Center cabinet support.
7. Front cabinet support with power strips attached.

1.4.3.2 Power Strips Used in Older CPE Systems

As a reference for older CPE clusters, up to twelve power strips can be mounted on the sides of
the HP 10000 Series 42U rack, as shown in
7
5
4
3
Figure 1-4.
2
1
1.4 CPE Architecture Overview 17
