Features

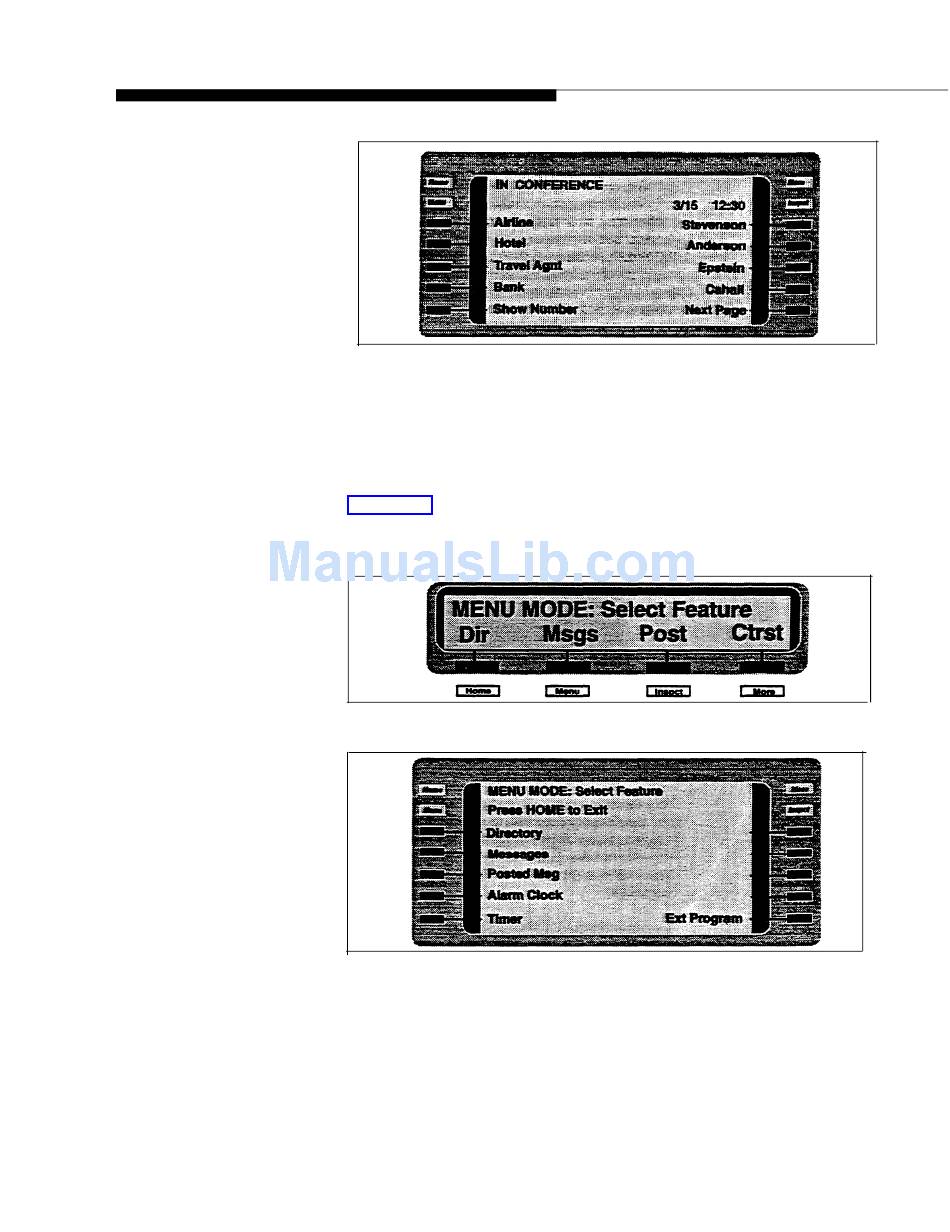

Figure 2-6

7-Line Display Home Screen

Menu Screen
The Menu screen (Figures 2-9 and 2-10) lists features and functions that are
used through the display, such as Alarm Clock and Directory. For all display
users except the QCC system operator, the Menu screen also provides access
to the Extension Programming function used to program the telephone. (See
Appendix B, General Telephone Programming Instructions, for more on the
Extension Programming function.) The Menu screen is accessed by pressing
the imprinted Menu button next to or below the display.
Figure 2-9 2-Line Display Menu Screen
Figure 2-10

7 Line Display Menu Screen

Note: The Ext Program option is not included on the Menu screen shown on a
QCC.
Display 2-141
