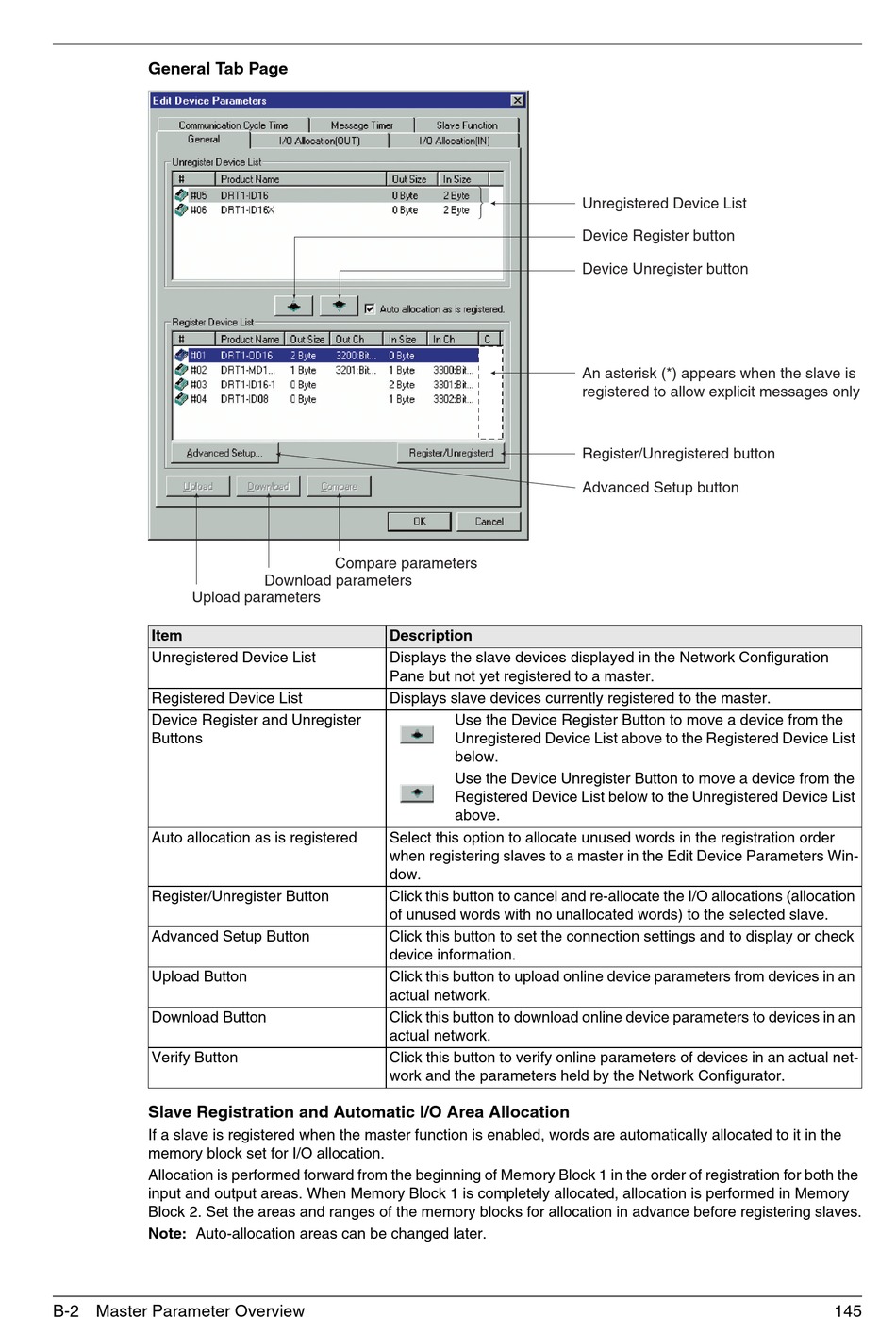

General Tab Page
Upload parameters
Item
Unregistered Device List
Registered Device List
Device Register and Unregister
Buttons
Auto allocation as is registered
Register/Unregister Button
Advanced Setup Button
Upload Button
Download Button
Verify Button
Slave Registration and Automatic I/O Area Allocation
If a slave is registered when the master function is enabled, words are automatically allocated to it in the
memory block set for I/O allocation.
Allocation is performed forward from the beginning of Memory Block 1 in the order of registration for both the
input and output areas. When Memory Block 1 is completely allocated, allocation is performed in Memory
Block 2. Set the areas and ranges of the memory blocks for allocation in advance before registering slaves.
Note: Auto-allocation areas can be changed later.
B-2 Master Parameter Overview
Compare parameters
Download parameters
Description
Displays the slave devices displayed in the Network Configuration
Pane but not yet registered to a master.
Displays slave devices currently registered to the master.
Select this option to allocate unused words in the registration order
when registering slaves to a master in the Edit Device Parameters Win-
dow.
Click this button to cancel and re-allocate the I/O allocations (allocation
of unused words with no unallocated words) to the selected slave.
Click this button to set the connection settings and to display or check
device information.
Click this button to upload online device parameters from devices in an
actual network.
Click this button to download online device parameters to devices in an
actual network.
Click this button to verify online parameters of devices in an actual net-
work and the parameters held by the Network Configurator.
¸
˝
Unregistered Device List
˛
Device Register button
Device Unregister button
An asterisk (*) appears when the slave is
registered to allow explicit messages only
Register/Unregistered button
Advanced Setup button
Use the Device Register Button to move a device from the
Unregistered Device List above to the Registered Device List
below.
Use the Device Unregister Button to move a device from the
Registered Device List below to the Unregistered Device List
above.
145
