4.
Specify a service.
A service code can be specified by using a common service code defined in the DeviceNet or by
directly specifying a service code. To specify a common service code defined in the DeviceNet, select a
service from the drop-down list.
To specify a service code directly, select the Custom Service Option in the Service Field and directly
enter a service code in hexadecimal.

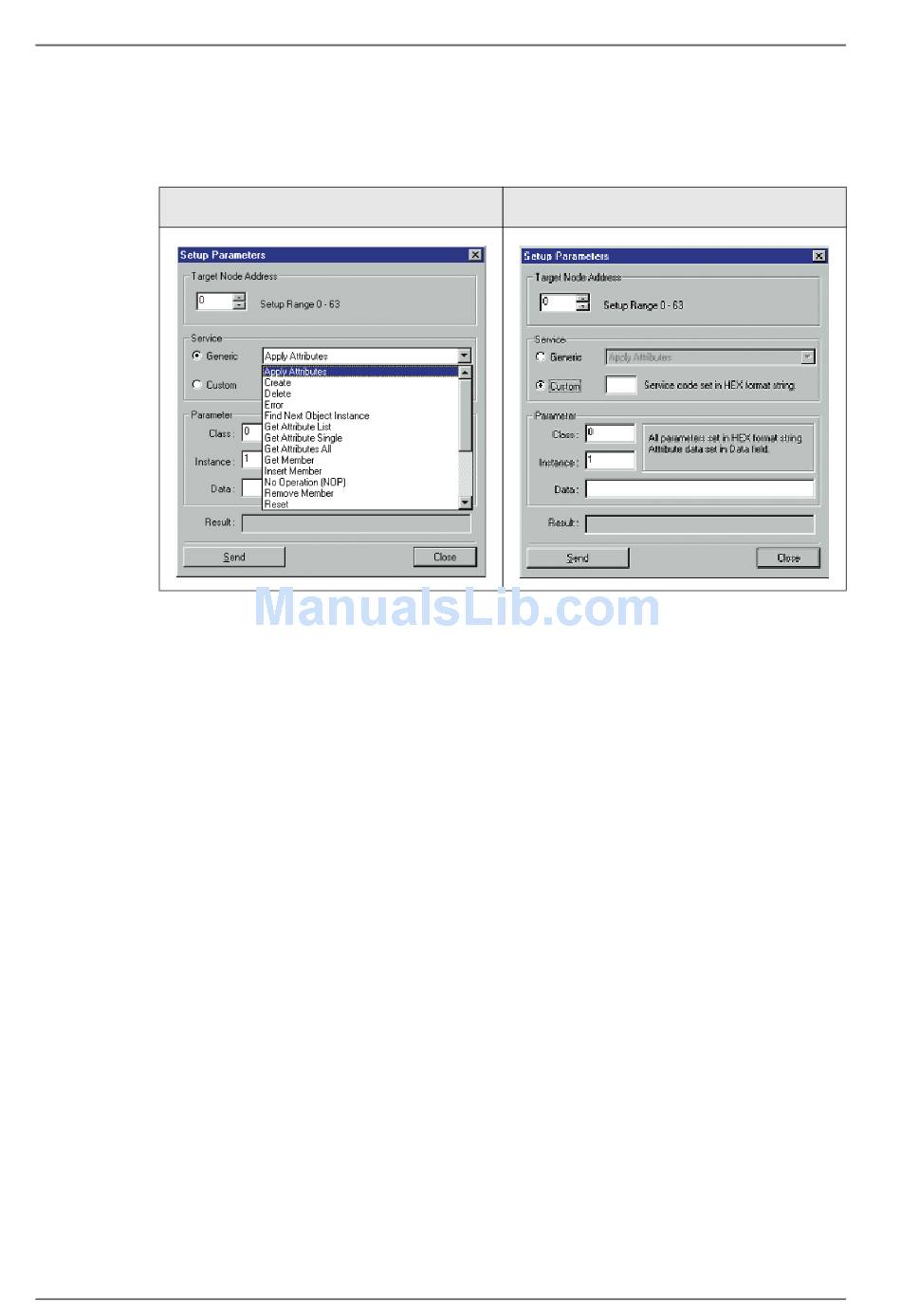

Specifying a Common Service Code Defined in
the DeviceNet
•
5.
Specify the class and instance of the parameters for which the settings are to be read or written.
6.
Enter the data based on the specified service type.
7.
Enter all the items and click the Send Button. The response from the device will be displayed in the Re-
sult Field.
8.
Click the Close Button to exit the Device Parameter Setting Window.
The Device Parameter Setting Window will close.
Example 1: Reading Parameters
1.
Select the Standard Option in the Service Field and select Get Attribute Single from the drop-down list.
2.
Specify the class and instance of the parameter to read.
3.
Enter the attribute of the parameter to read in the Data Field.
4.
Click the Send Button. The read value will be displayed in the Result Field.
Example 2: Setting Parameters
1.
Select the Standard Option in the Service Field and select Set Attribute Single from the drop-down list.
2.
Specify the class and instance of the parameter to set.
3.
Enter the attribute of the parameter to set in the Data Field.
4.
Set the value in the Parameter Area after the attribute in the Data Field.
5.
Click the Send Button.
166
Directly Specifying the Service Code
•
D Using General-purpose Tools to Set Devices
