Registering Destination DeviceNet Networks
It is necessary to register the destination DeviceNet network in advance for a connection via Ethernet. A max-
imum of 20 DeviceNet networks can be registered.
Use the following procedure to register the destination DeviceNet network.
1.
Select Network - Connect.
2.
The following window will be displayed.

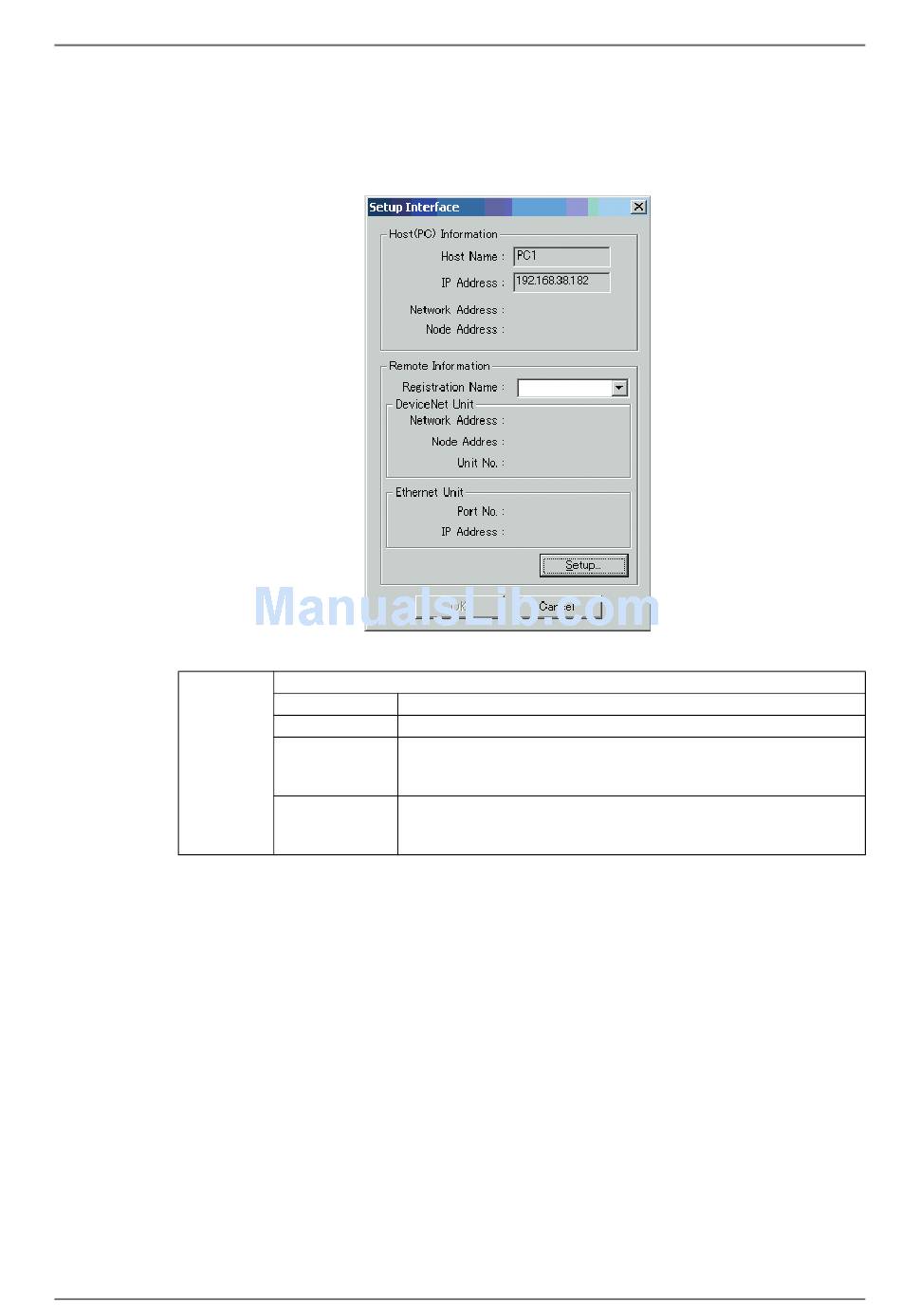

Interface Setting Window
Host (PC)
Information
A-2 Specifying the Connection Interface
Settings of the computer running the Network Configurator are displayed.
Host Name
The name of the computer is displayed automatically.
IP Address
The IP address of the computer is displayed automatically.
Network Address The FINS network address set in the computer is displayed.
(The value set in the Destination Registration Window after clicking
the Set Button in step 3 below will be displayed.)
Node Address
The FINS node address set in the computer is displayed.
(The value set in the Destination Registration Window after clicking
the Set Button in step 3 below will be displayed.)
139
