Instruction
Mnemonic
REVERSIBLE
CNTR
COUNTER
(BCD)
CNTRX
(Binary)
RESET
CNR
TIMER/
(BCD)
COUNTER
CNRX
(Binary)
CP1E CPU Unit Software User's Manual(W480)
Variations
Symbol/Operand
---
Increment
CNTR(012)
input
Decrement
N
input
S
Reset
input
N: Counter number
S: Set value
---
Increment
CNTRX(548)
input
Decrement
N
input
S
Reset
input
N: Counter number
S: Set value
@
CNR(545)
N1
N2
N1: 1st number in range
N2: Last number in range
@
CNRX(547)
N1
N2
N1: 1st number in range
N2: Last number in range
Function

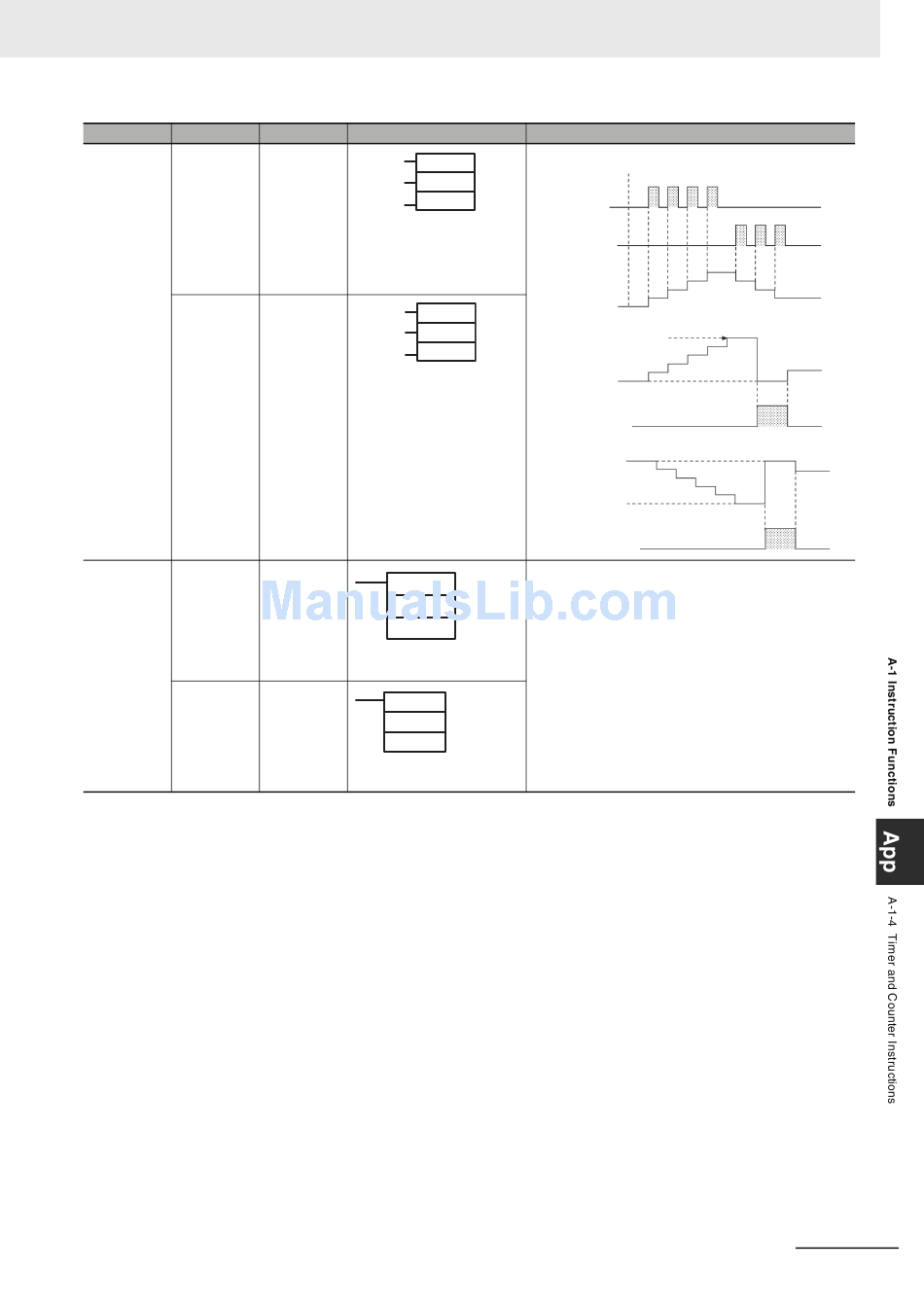

CNTR(012)/CNTRX(548) operates a reversible counter.
Increment input
Decrement input
Counter PV
0
SV
Counter PV
0
ON
Completion Flag
OFF
SV
Counter PV
0
ON
Completion Flag
OFF
CNR(545)/CNRX(547) resets the timers or counters within the
specified range of timer or counter numbers. Sets the set value
(SV) to the maximum of #9999 for CNR(BCD) and #FFFF for
CNRX(Binary).
