Stapler Door Close Limit Switch Removal - Lexmark XM3250 Service Manual

4

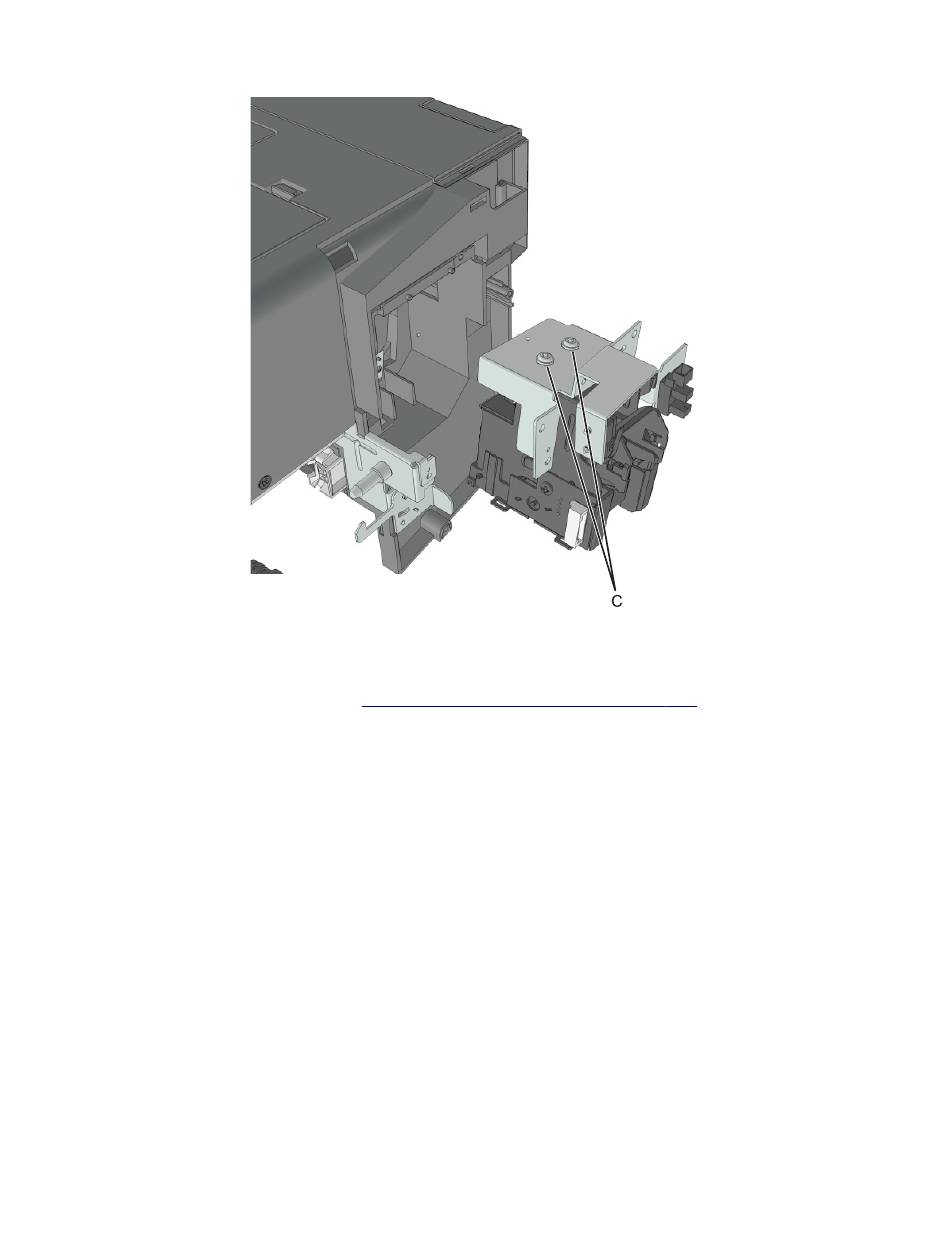

Remove the two screws (C), and remove the stapler carriage assembly.

Stapler door close limit switch removal

1
Remove the stapler right cover. See
2
Push down to release, then disconnect the switch cable (A).
"Stapler right cover removal" on page
Parts removal
333
328.
7018
