Cartridge Gearbox Removal - Lexmark XM3250 Service Manual

7
Release the cut cable.
Note: Pay attention to the cable route.
8
Open the controller board access cover, and then disconnect the cable.

Cartridge gearbox removal

1
Remove the left cover. See
2

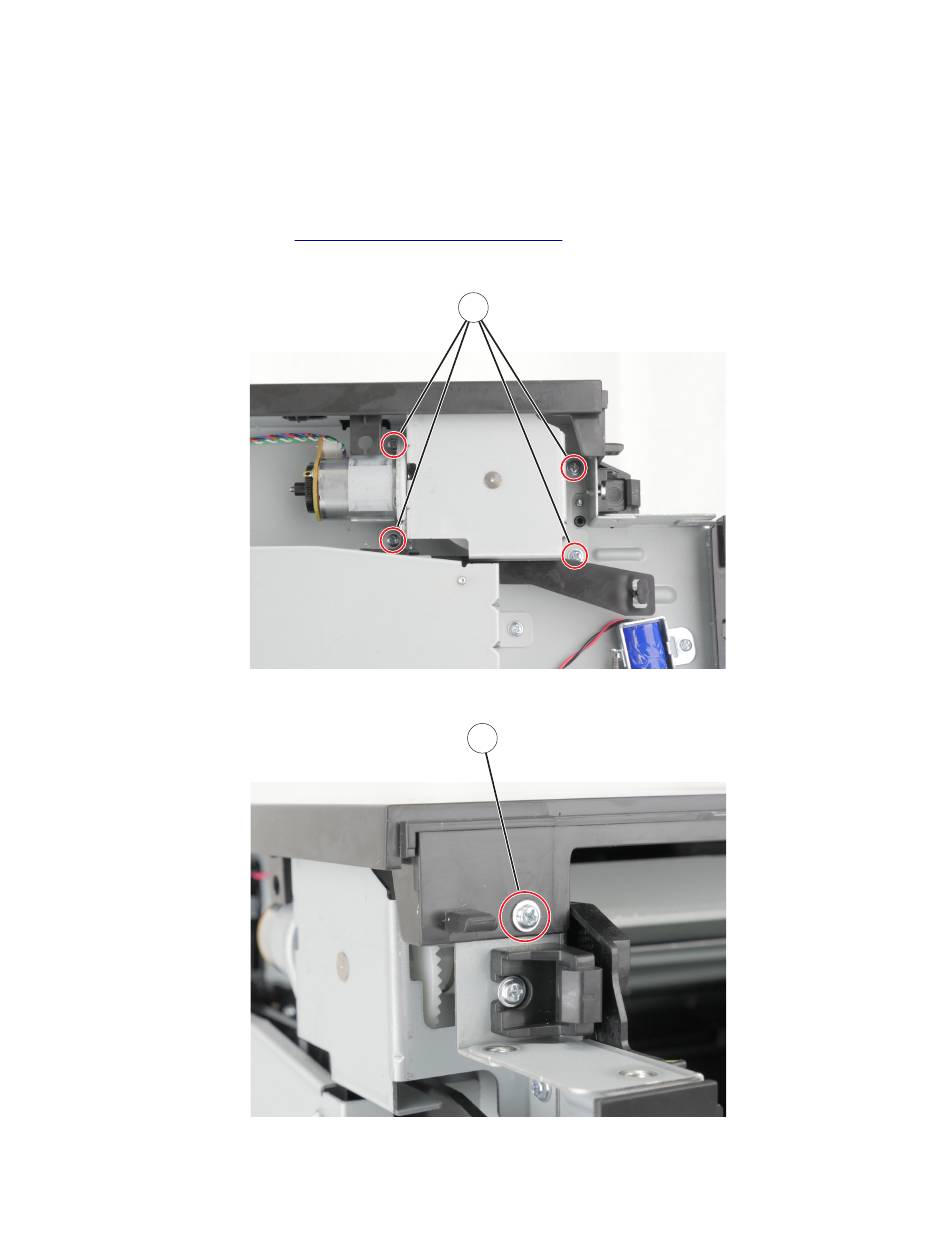

Remove the four screws (A).
3
Remove the screw (B).
"Left cover removal" on page
A
Parts removal
236
226.
B
