MPF gearbox removal

1
Remove the front door. See
2
Remove the left cover. See
3
Remove the main drive gearbox. See
4

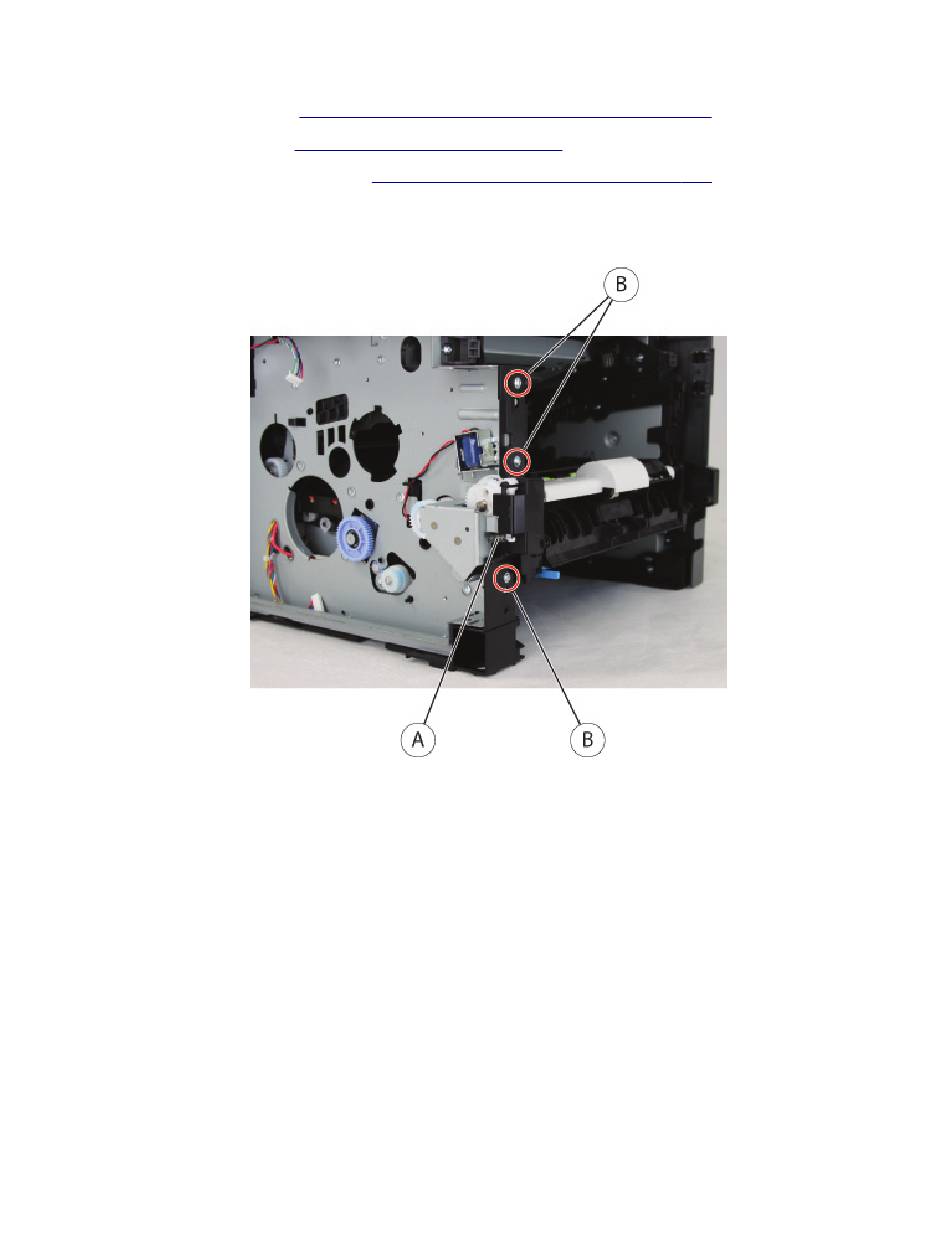

Disconnect the spring (A).
5
Remove the three screws (B) to loosen the mount.
"MPF with front access cover removal" on page
"Left cover removal" on page
"Main drive gearbox removal" on page
Parts removal
229
252.
226.
227.
7018
