Sensor (Stapler Paddle Hp) Removal - Lexmark XM3250 Service Manual

11

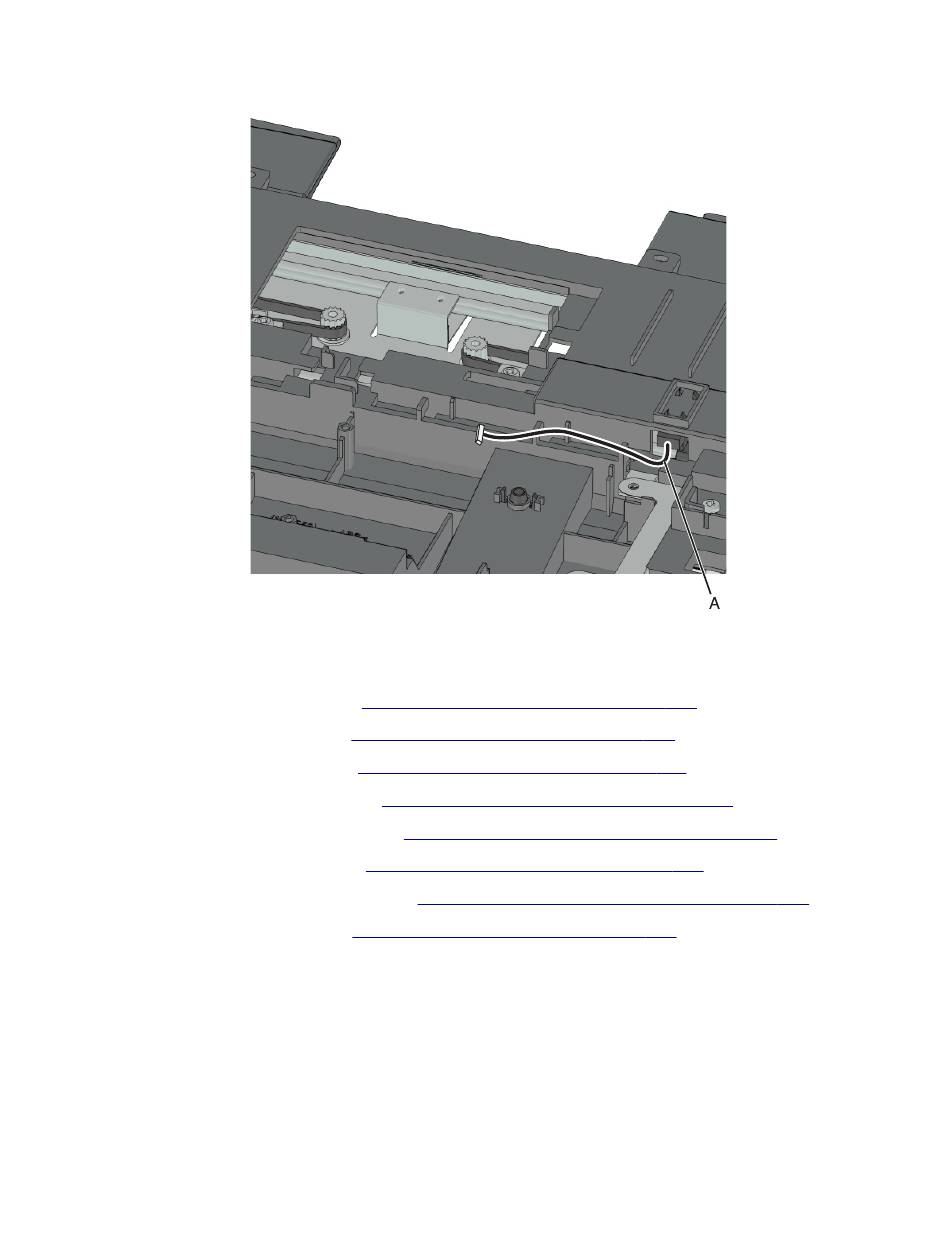

Disconnect the sensor cable (A). Release the latches, and then remove the sensor.

Sensor (stapler paddle HP) removal

1
Remove the stapler right cover. See
2
Remove the stapler left cover. See
3
Remove the stapler rear cover. See
4
Remove the stapler service cover. See
5
Remove the stapler controller board. See
6
Remove the stapler cooling fan. See
7
Remove the stapler power supply unit. See
8
Remove the stapler top cover. See
"Stapler right cover removal" on page
"Stapler left cover removal" on page
"Stapler rear cover removal" on page
"Stapler service cover removal" on page
"Stapler controller board removal" on page
"Stapler cooling fan removal" on page
"Stapler power supply unit removal" on page
"Stapler top cover removal" on page
