Installing the MAPD
Eight wires, hard-connected
across mounting blocks.
Ends of wire stripped of
insulation. Use punch down
tool to press ends of these
eight wires into mounting
block.
Four protector caps snap
over the top of mounting blocks.
A D8W modular wall cord (up to 25 feet long) is used to connect the MAPD
Board RJ45 connector to the 104A connecting block.

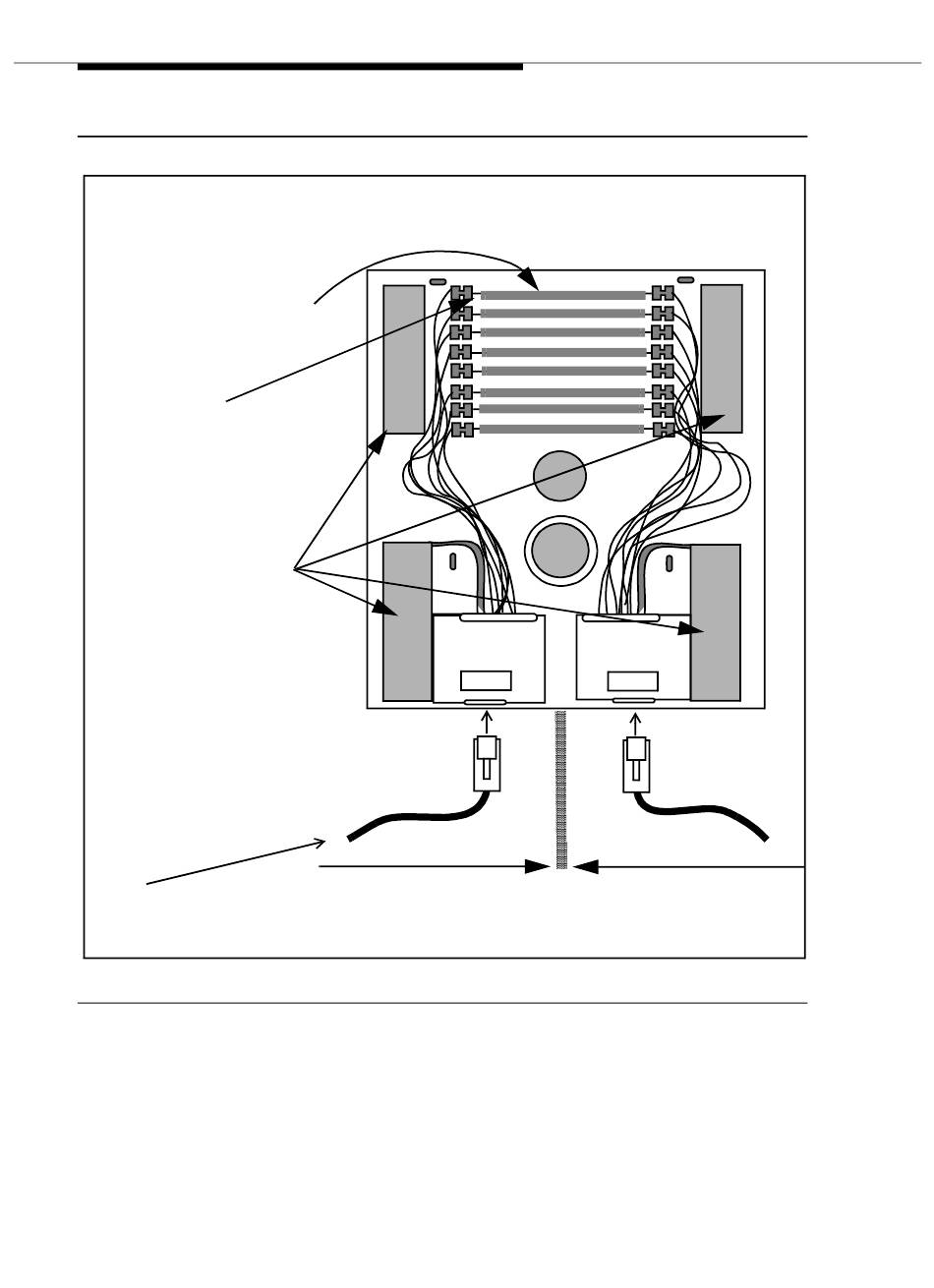

Figure 2-13. 104A Connecting Block
2-24 Issue 3 May 2002
104A Connecting Block
(can be supplied by Avaya)
WE
MAPD board
LAN connection
Avaya
1
1
2 2
2
3
3
4
4
5
5
6
6
7
7
8
8
104A
Customer
Service Boundary
10Base-T
LAN connection
