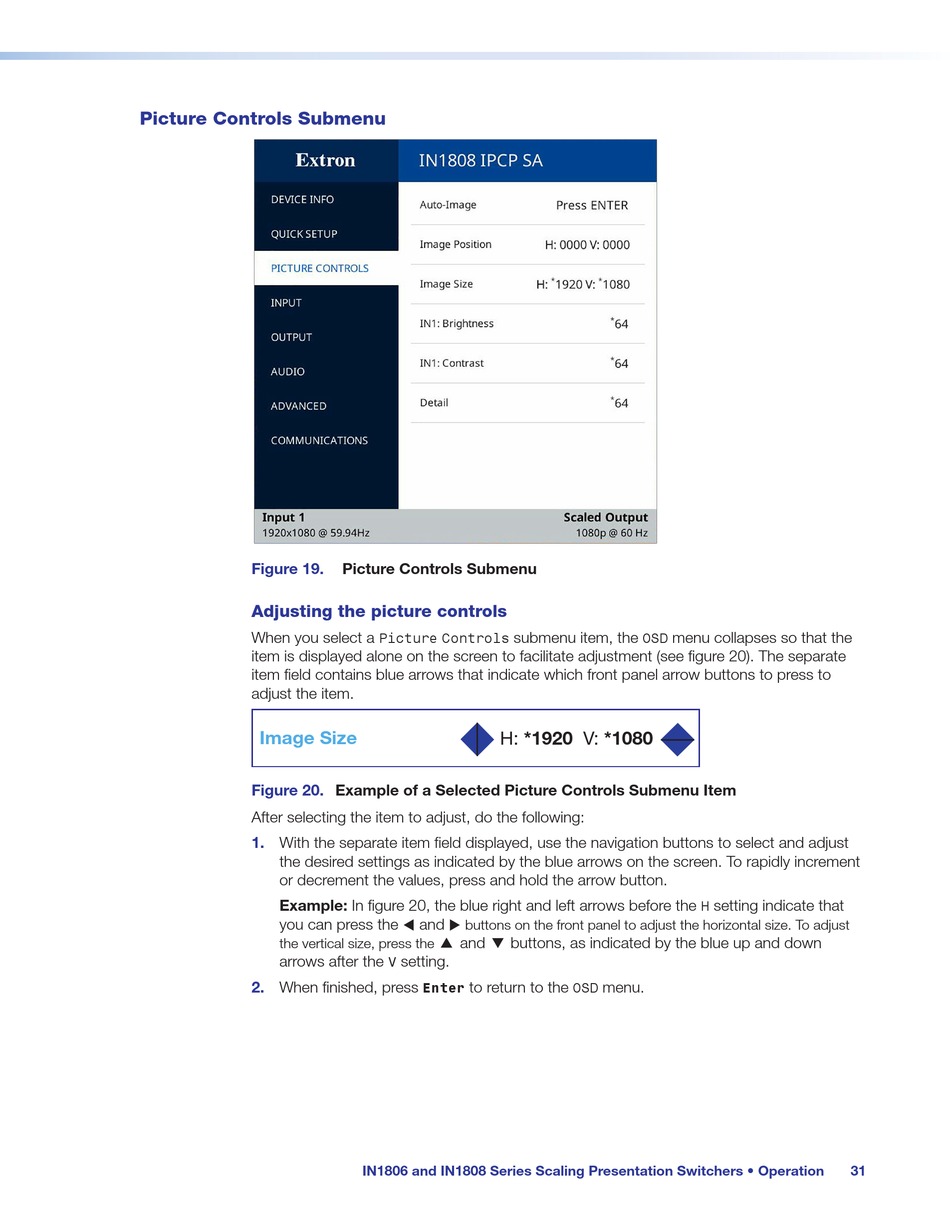

Picture Controls Submenu
Figure 19.
Adjusting the picture controls
When you select a
item is displayed alone on the screen to facilitate adjustment (see figure 20). The separate
item field contains blue arrows that indicate which front panel arrow buttons to press to
adjust the item.
Image Size
Figure 20.
After selecting the item to adjust, do the following:
1.
With the separate item field displayed, use the navigation buttons to select and adjust
the desired settings as indicated by the blue arrows on the screen. To rapidly increment
or decrement the values, press and hold the arrow button.
Example: In figure 20, the blue right and left arrows before the
you can press the
the vertical size, press the
arrows after the
2.
When finished, press
Picture Controls Submenu
submenu item, the
Picture Controls
H: *1920 V: *1080
Example of a Selected Picture Controls Submenu Item
and
u buttons on the front panel to adjust the horizontal size. To adjust
and
buttons, as indicated by the blue up and down
setting.
V
to return to the
Enter
IN1806 and IN1808 Series Scaling Presentation Switchers • Operation
menu collapses so that the
OSD
setting indicate that
H
menu.
OSD
31
