Processor Mass

The processor mass is 88.8 g, and the processor with fabric mass is 91.4 g. This
includes the mass of all components integrated on the processor package.
2.5

Processor Material

The table below lists some of the package components and associated materials.
Table 2-1.

Processor Materials

Integrated Heat Spreader
Substrate
Package Lands
Fabric Edge Connector Fingers
2.6

Processor Markings

Refer to Table C-1
zones.

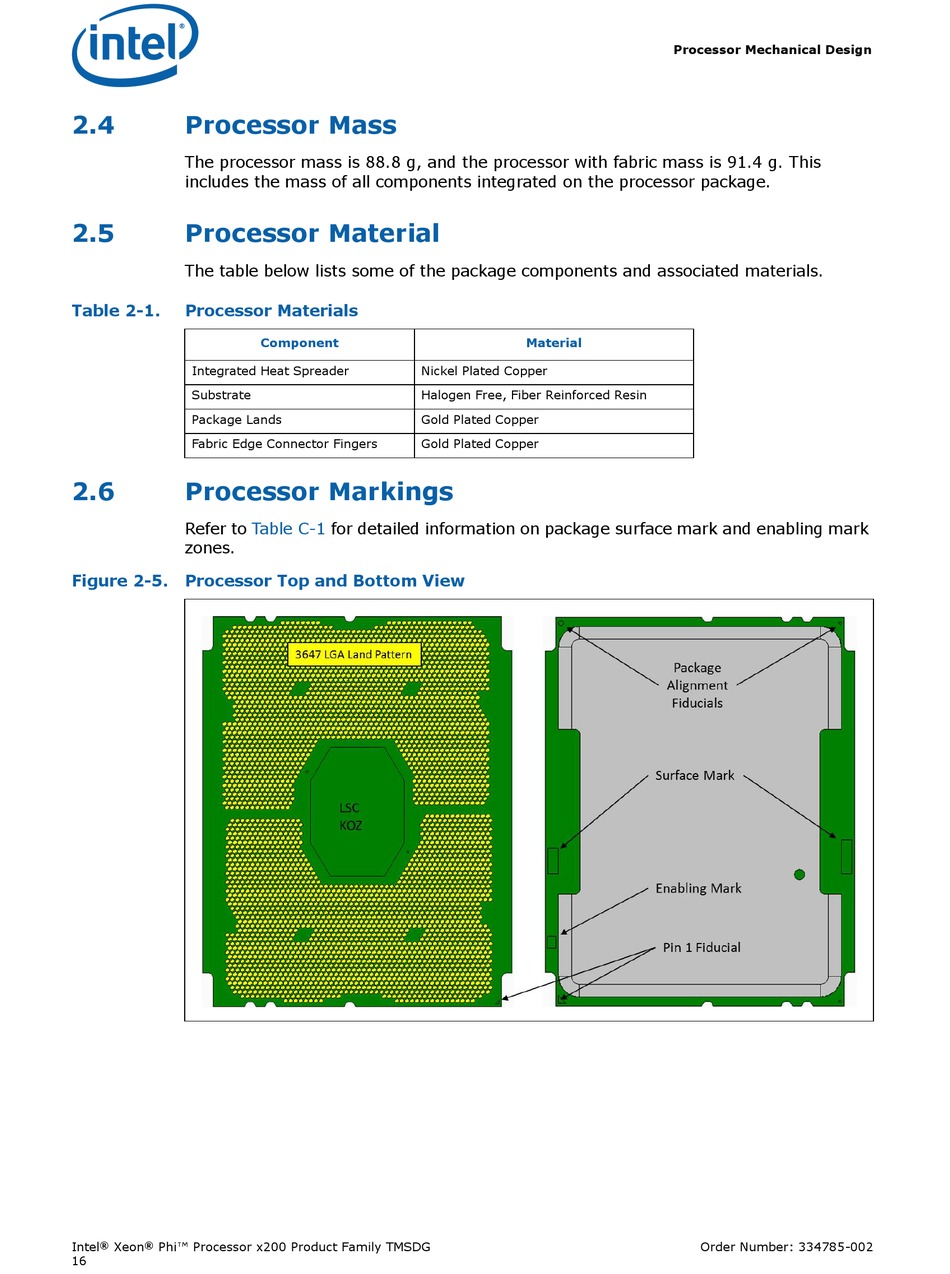

Figure 2-5.

Processor Top and Bottom View

® ®
Intel Xeon Phi™ Processor x200 Product Family TMSDG
16
Component
Nickel Plated Copper
Halogen Free, Fiber Reinforced Resin
Gold Plated Copper
Gold Plated Copper
for detailed information on package surface mark and enabling mark
