Mechanical KOZs
F Mechanical KOZs
F.1

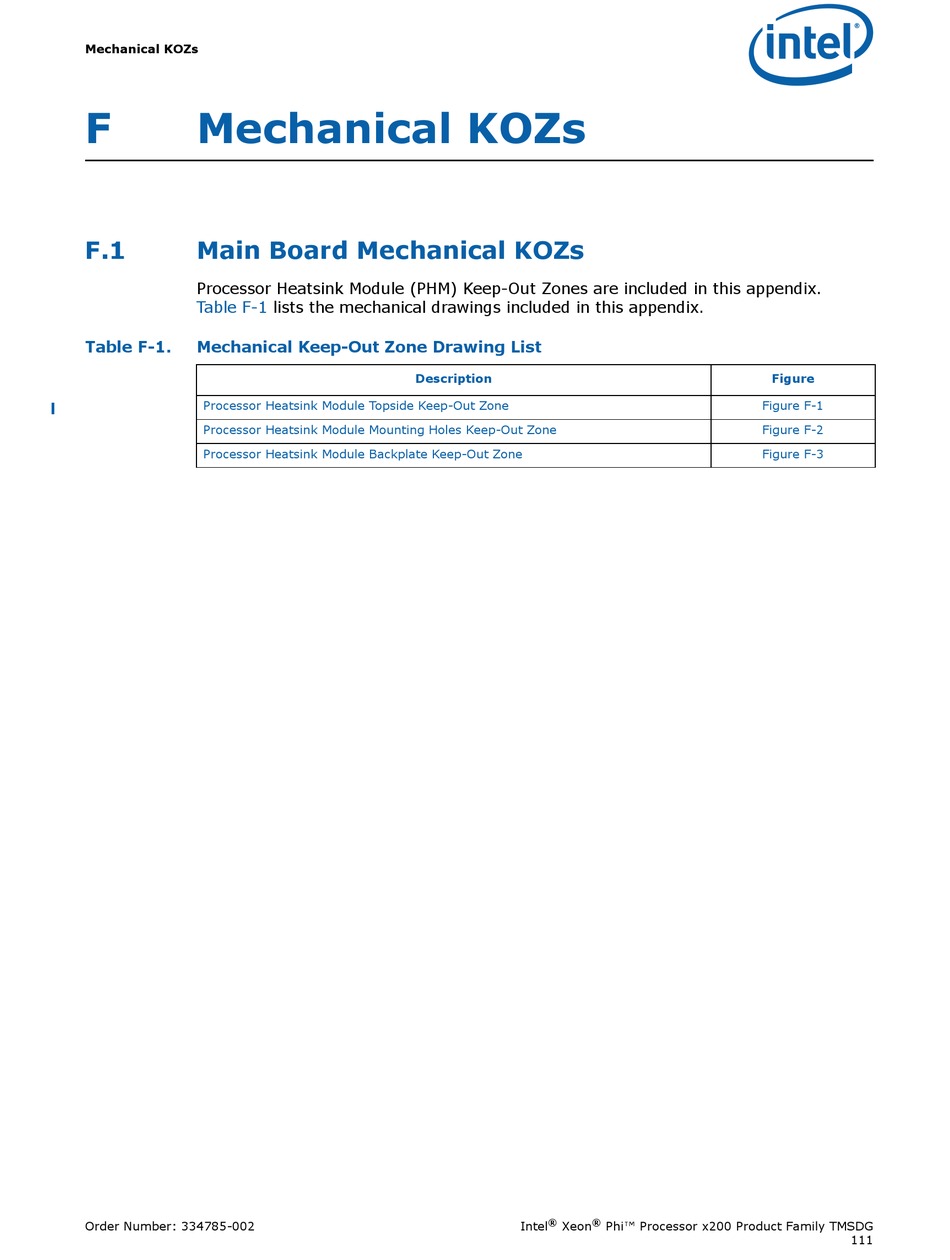

Main Board Mechanical KOZs

Processor Heatsink Module (PHM) Keep-Out Zones are included in this appendix.
Table F-1
Table F-1.

Mechanical Keep-Out Zone Drawing List

Processor Heatsink Module Topside Keep-Out Zone
Processor Heatsink Module Mounting Holes Keep-Out Zone
Processor Heatsink Module Backplate Keep-Out Zone
Order Number: 334785-002
lists the mechanical drawings included in this appendix.
Description
® ®
Intel Xeon Phi™ Processor x200 Product Family TMSDG
Figure
Figure F-1
Figure F-2
Figure F-3
111
