1. This parts catalog for 4LHA-STE,4LHA-STZE is as well as the new one on the
4LHA-STP 4LHA-STZP,4LHA-DTE,4LHA-DTZE,4LHA-DTP,4LHA-DTZP
I
4LHA-HTZE,4LHA-HTP,4LHA-HTZP.
First edition
First edition
1st edition(supplement)
2nd edition (supplement)
2. Standard finish color.
3. This parts catalog dose not contain the technical date needed for servicing.
4. The illustrations used in this parts catalog have been simplified for clarity.
5. The essential points list.
Name of Diesel engine
Type
Jo.of cylinder-internal diameter(mm)
< Stroke length(mm)
KW/min
Co Abous rated
output
(PS/rpm)
Combustion system
Starting system
Power take-off position
Cooling system
Lubricationg system
6. The contents of this parts catalog are subject to change without prior notice.
7. Be sure to use only genuine Yanmar part for repairs. If other parts are used,
the life of the engine may be shortened.

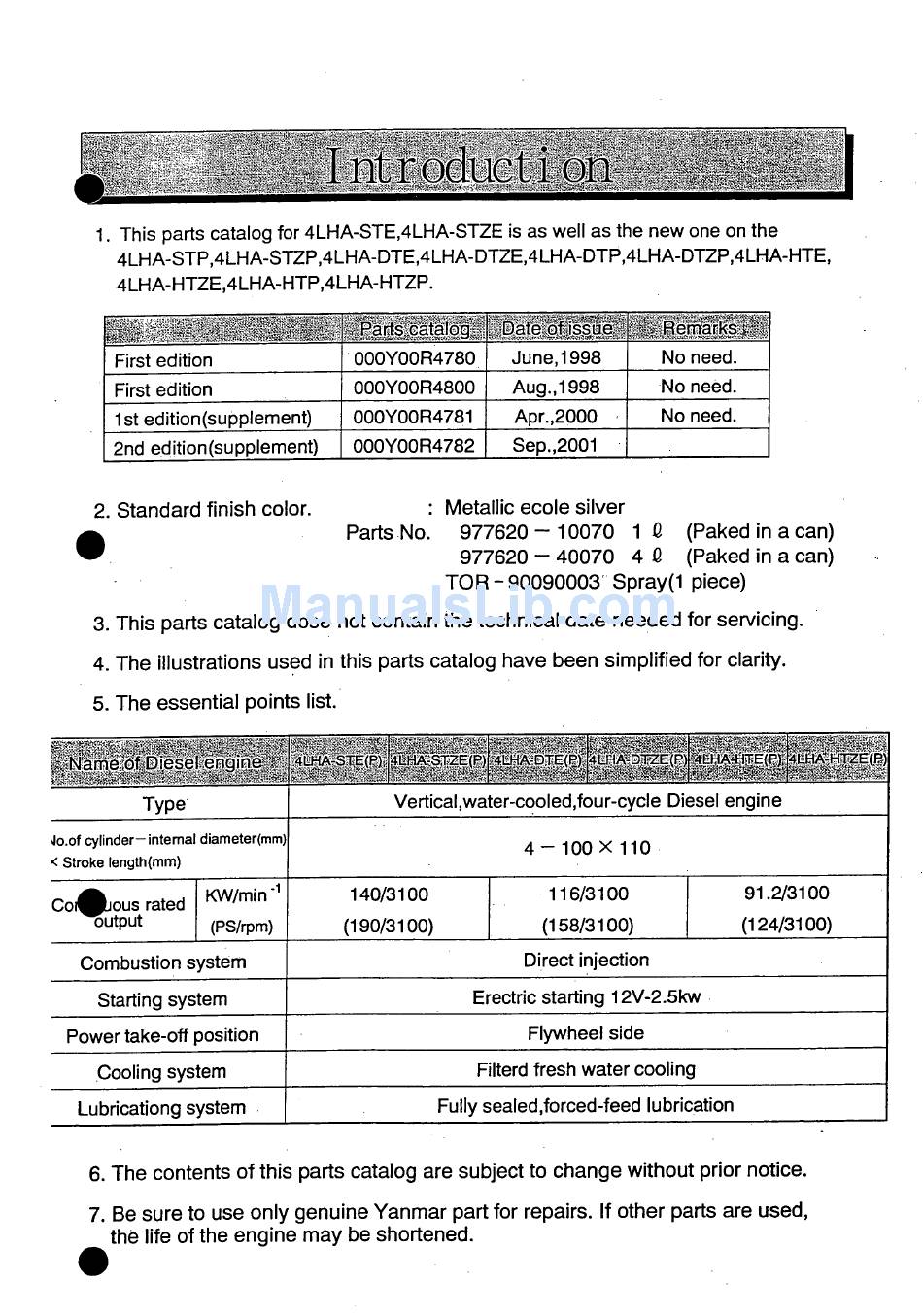

Introducli on
Pdijtsjcatnlog
000Y00R4780
000Y00R4800
000Y00R4781
000Y00R4782
: Metallic ecole silver
Parts No.
4LHA STE(P) 4LHA STZE(P) 4LHA DTE(P) 4LHA DTZE(P) 4LHA HTE(P) 4LHA HTZE(R:
Vertical.water-cooled.four-cycle Diesel engine
-1
140/3100
(190/3100)
Fully sealed.forced-feed lubrication
D k t c S ^ e ^
June, 1998
Aug.,1998
Apr.,2000
Sep.,2001
9 7 7 6 2 0 - 10070 113
977620 - 40070 4 fi (Paked in a can)
TOR - 90090003 Spray(1 piece)
4 - 100X 110
116/3100
(158/3100)
Direct injection
Erectric starting 12V-2.5kw
Flywheel side
Filterd fresh water cooling
4LHA-HTE
I
. Rem^i^^R
No need.
No need.
No need.
(Paked in a can)
91.2/3100
(124/3100)
)
