Chapter 1 General

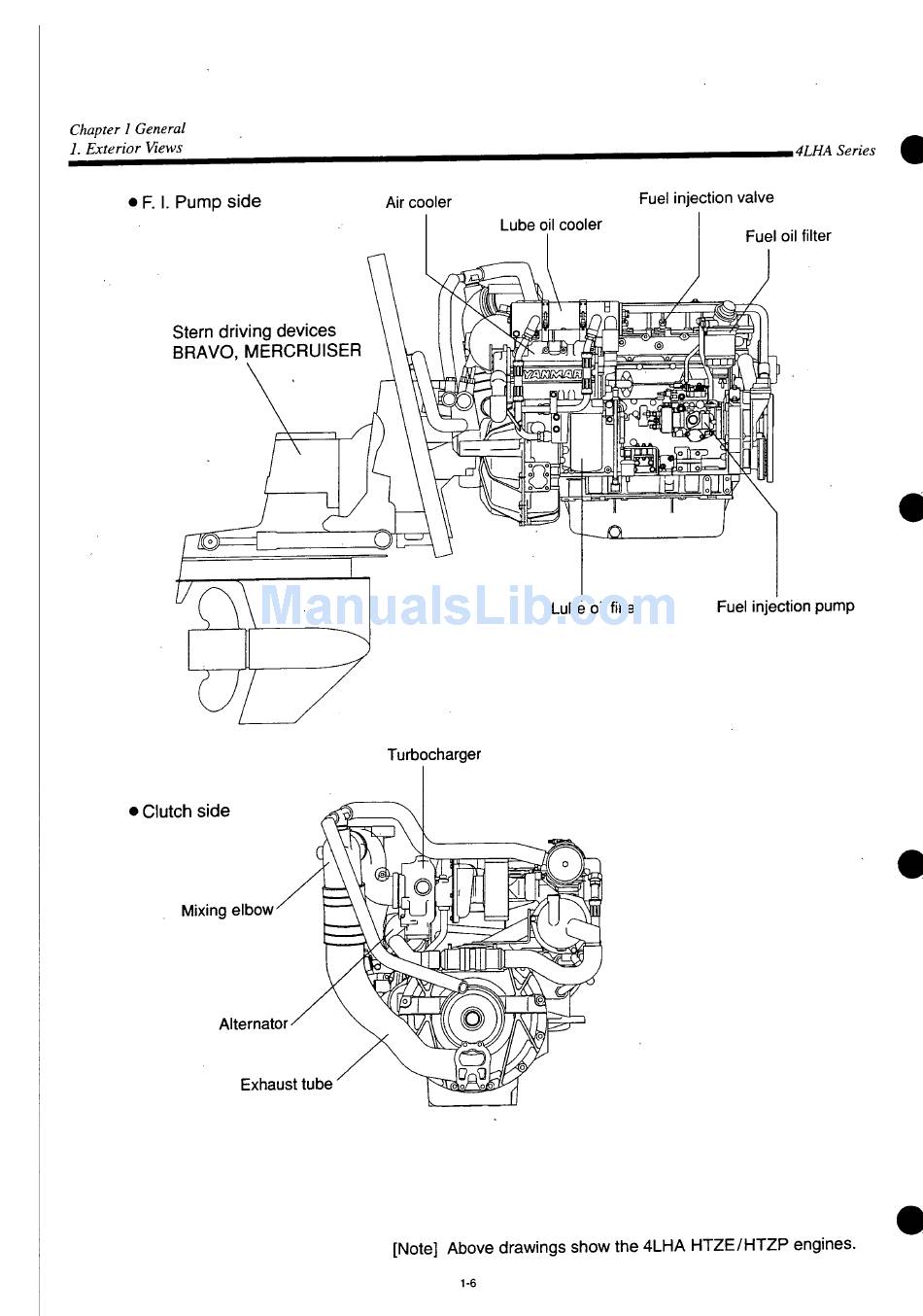

1. Exterior Views
• F. I. Pump side
Stern driving devices
BRAVO, MERCRUISER
> Clutch side
Mixing elbow
Alternator
Exhaust tube
j
| e r
A
r C 0 0
Lube oil cooler
Turbocharger
[Note] Above drawings show the 4LHA HTZE/HTZP engines.
1-6
4LHA Series
t
Fuel injection valve
Fuel oil filter
Fuel injection pump
