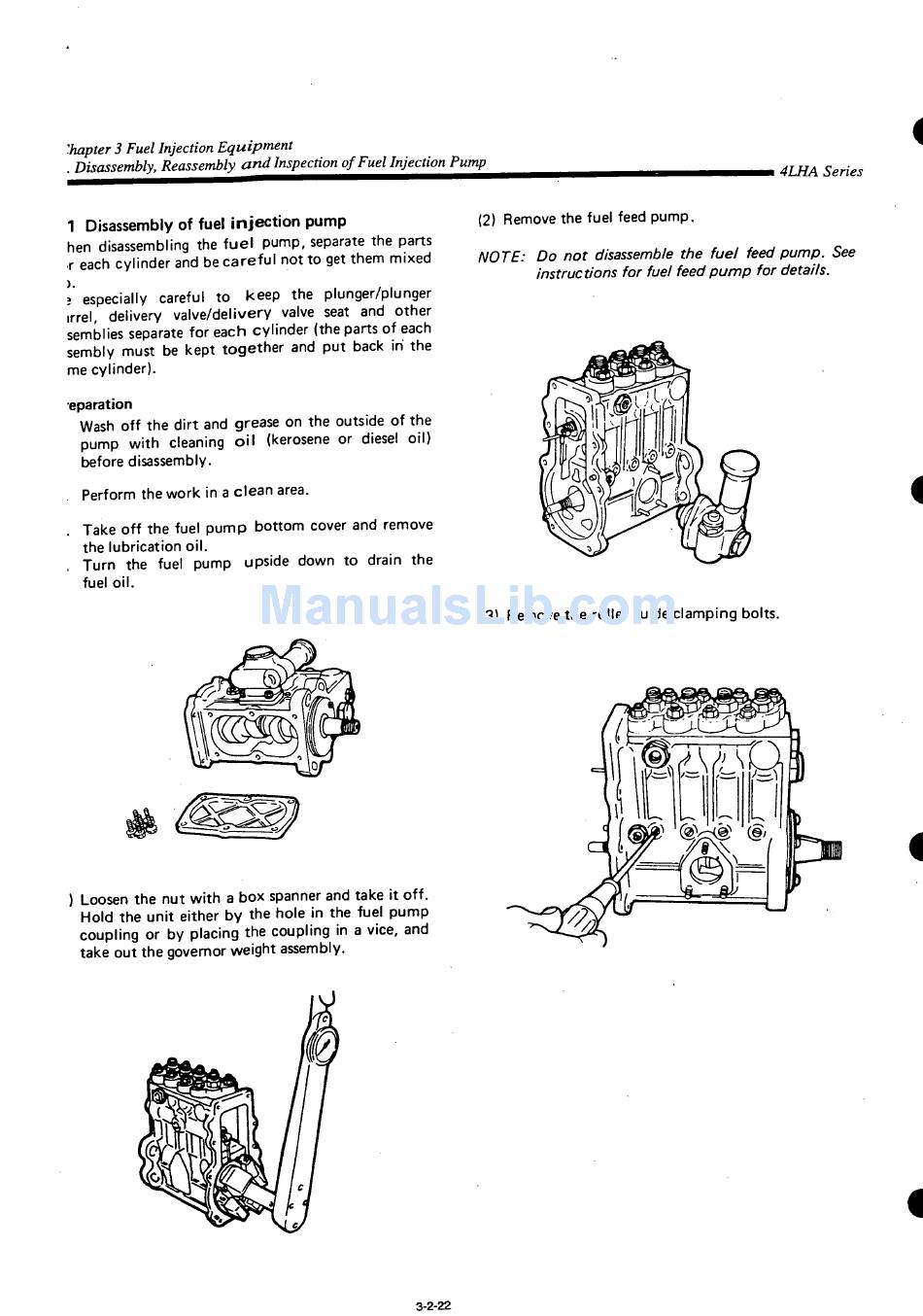

'hapter 3 Fuel Injection Equipment
. Disassembly, Reassembly and Inspection of Fuel Injection Pump
1 Disassembly of fuel injection pump
hen disassembling the f u e l pump, separate the parts
r each cylinder and be c a r e f u l not to get them mixed
\ especially careful to
irrel, delivery valve/delivery valve seat and other
semblies separate for each cylinder (the parts of each
sembly must be kept together and put back in the
me cylinder).
eparation
Wash off the dirt and grease on the outside of the
pump with cleaning o i l (kerosene or diesel oil)
before disassembly.
Perform the work in a clean area.
Take off the fuel pump bottom cover and remove
the lubrication oil.
Turn the fuel pump upside down to drain the
fuel oil.
) Loosen the nut with a box spanner and take it off.
Hold the unit either by the hole in the fuel pump
coupling or by placing the coupling in a vice, and
take out the governor weight assembly.
keep the plunger/plunger
3-2-22
(2) Remove the fuel feed pump.
NOTE: Do not disassemble the fuei feed pump. See
instructions for fuel feedpump
(3) Remove the roller guide clamping bolts.
4LHA Series
for details.
