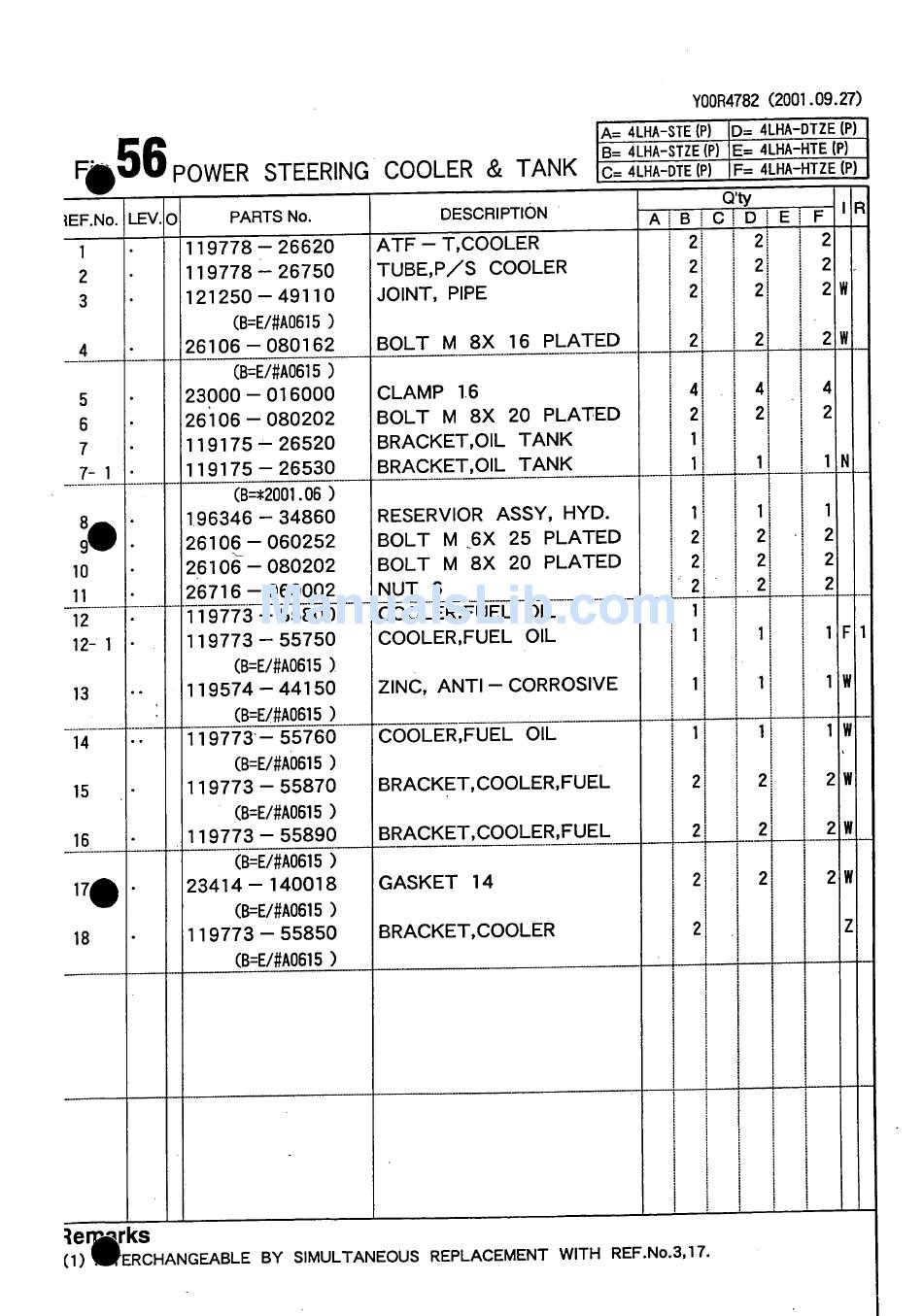

POWER STEERING COOLER & TANK
Fi
PARTS No.
LEV. O
1 1 9 7 7 8 - 2 6 6 2 0
1 1 9 7 7 8 - 2 6 7 5 0
1 2 1 2 5 0 - 4 9 1 1 0
(B=E/#A0615 )
2 6 1 0 6 - 0 8 0 1 6 2
(B=E/#A0615 )
2 3 0 0 0 - 0 1 6 0 0 0
2 6 1 0 6 - 0 8 0 2 0 2
1 1 9 1 7 5 - 2 6 5 2 0
1 1 9 1 7 5 - 2 6 5 3 0
(B=*2001.06 )
196346 - 34860
2 6 1 0 6 - 0 6 0 2 5 2
2 6 1 0 6 - 0 8 0 2 0 2
2 6 7 1 6 - 0 6 0 0 0 2
1 1 9 7 7 3 - 5 5 8 0 0
1 1 9 7 7 3 - 5 5 7 5 0
(B=E/#A0615 )
1 1 9 5 7 4 - 4 4 1 5 0
(B=E/#A0615 )
1 1 9 7 7 3 - 5 5 7 6 0
(B=E/#A0615 )
1 1 9 7 7 3 - 5 5 8 7 0
(B=E/#A0615 )
119773 - 55890
(B=E/#A0615 )
2 3 4 1 4 - 140018
(B=E/#A0615 )
1 1 9 7 7 3 - 5 5 8 5 0
(B=E/#A0615 )
'W
ERCHANGEABLE BY SIMULTANEOUS
DESCRIPTION
A T F - T.COOLER
T U B E , P / S COOLER
JOINT, PIPE
BOLT M 8X 16 PLATED
CLAMP 16
BOLT M 8X 20 PLATED
BRACKET.OIL TANK
BRACKET.OIL TANK
RESERVIOR A S S Y , HYD.
BOLT M 6X 25 PLATED
BOLT M 8X 20 PLATED
NUT 6
COOLER,FUEL OIL
COOLER,FUEL OIL
ZINC, ANTI - CORROSIVE
COOLER,FUEL OIL
BRACKET.COOLER.FUEL
BRACKET,COOLER,FUEL
G A S K E T 14
BRACKET.COOLER
REPLACEMENT WITH
Y00R4782 (2001.09.27)
D= 4LHA-DTZE (P)
A= 4LHA-STE (P)
B= 4LHA-STZE (P) E= 4LHA-HTE (P)
F= 4LHA-HTZE (P)
C= 4LHA-DTE (P)
