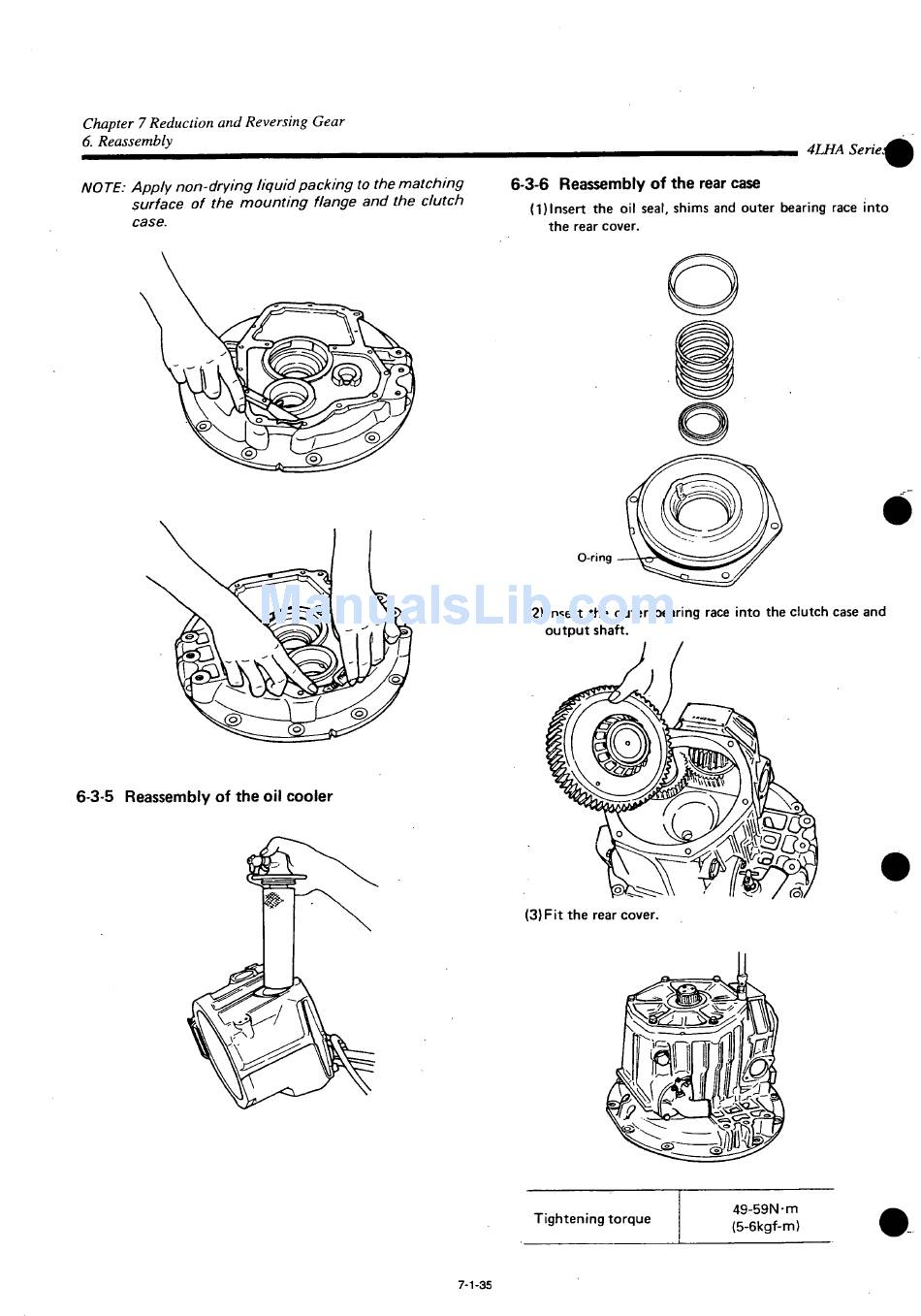

Chapter 7 Reduction and Reversing Gear
6. Reassembly
4LHA
Seriei
6-3-6 Reassembly of the rear case
NOTE: Apply non-drying
liquid packing to the matching
surface of the mounting
flange and the clutch
(l)lnsert the oil seal, shims and outer bearing race into
case.
the rear cover.
O-ring
V c r
(2)Insert the outer bearing race into the clutch case and
output shaft.
6-3-5
Reassembly of the oil cooler
(3) F it the rear cover.
49-59N-m
Tightening torque
(5-6kgf-m)
