Chapter 7 Reduction and Reversing
6. Reassembly

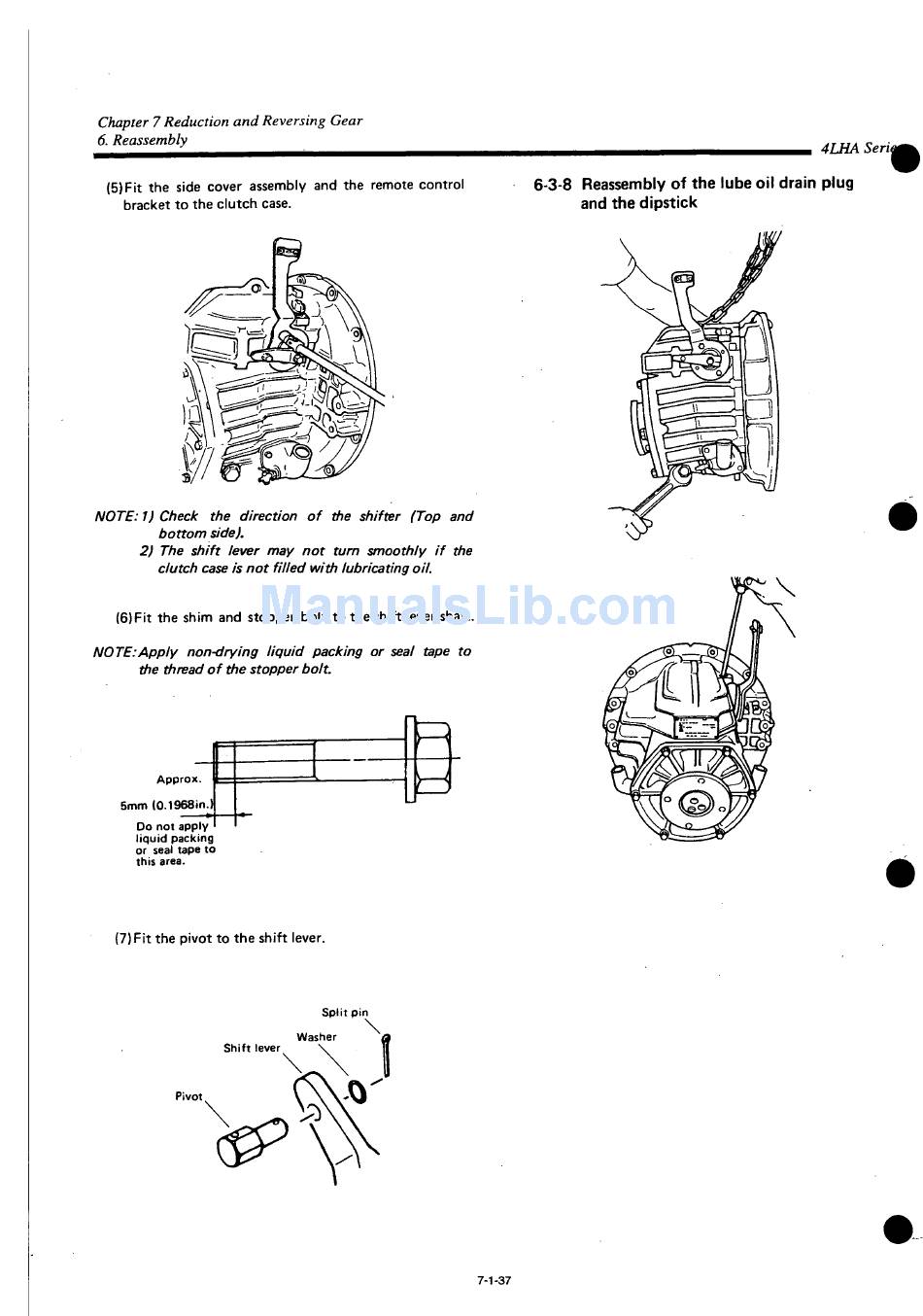

(5)Fit the side cover assembly and the remote control
bracket to the clutch case.
NOTE: 1) Check the direction of the shifter (Top and
bottom side).
2) The shift lever may not turn smoothly if the
clutch case is not filled with lubricating oil.
(6)Fit the shim and stopper bolt to the shift lever shaft.
NOTE:Apply non-drying liquid packing or seal tape to
the thread of the stopper bolt.
A p p r o x .
5mm (0.1968tn.
Oo not apply
liquid packing
or seal tape to
this area.
(7) Fit the pivot to the shift lever.
Shift lever
Pivot
Gear
Split pin
Washer
