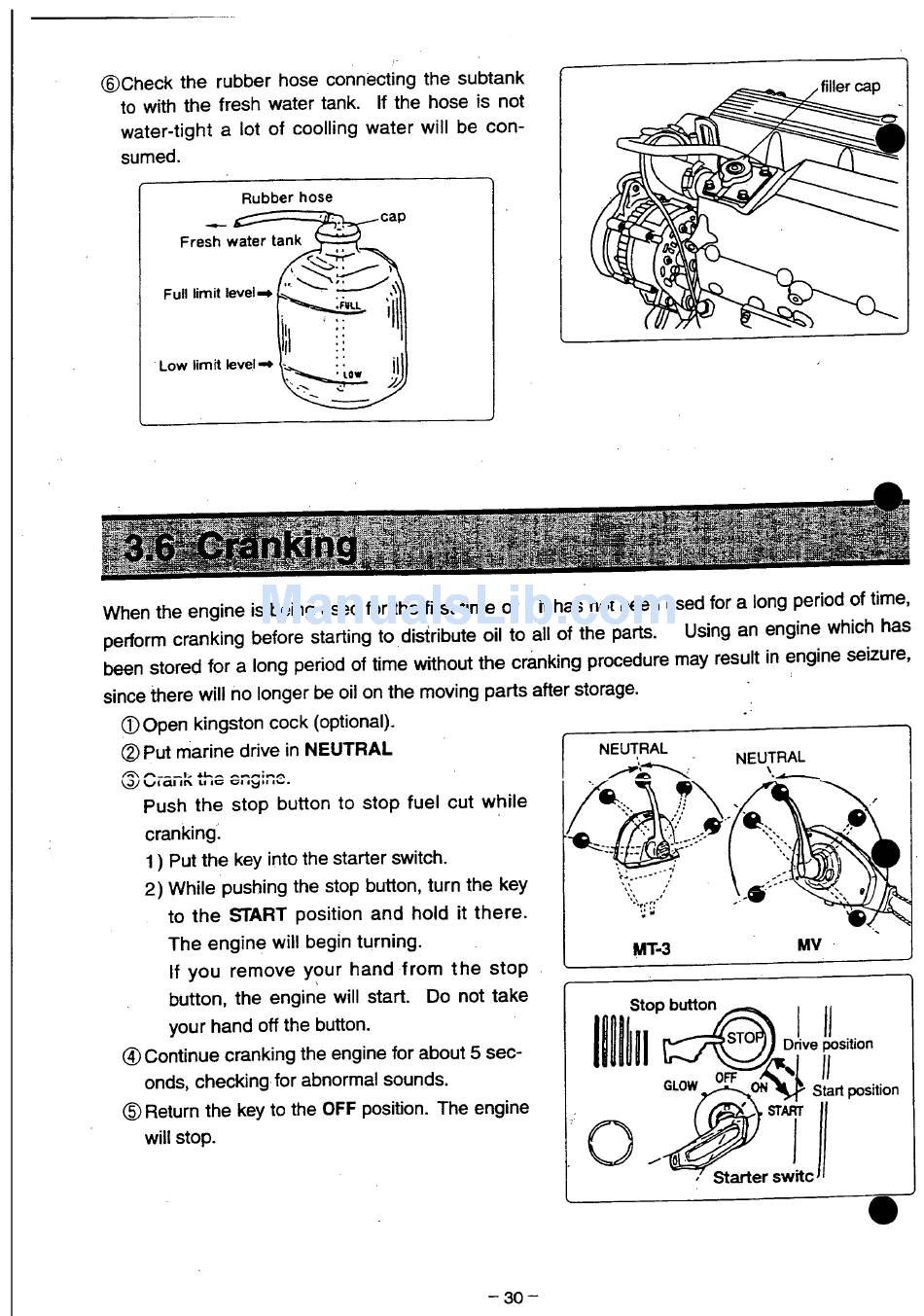

Yanmar 4LHA-HTP Operation Manual page 34

©Check the rubber hose connecting the subtank
to with the fresh water tank. If the hose is not
water-tight a lot of coolling water will be con-
sumed.
Rubber hose
Fresh water tank
Full limit levels
Low limit level-»
When the engine is being used for the first time or if it has not been used for a long period of time,
perform cranking before starting to distribute oil to all of the parts.
been stored for a long period of time without the cranking procedure may result in engine seizure,
since there will no longer be oil on the moving parts after storage.
©Open kingston cock (optional).
© Put marine drive in NEUTRAL
/-v 1^ *i-*>~v S-N*-*^\r*r\
\ O J l _ / f C U irv t i i c o i l y n i w .
Push the stop button to stop fuel cut while
cranking.
1) Put the key into the starter switch.
2) While pushing the stop button, turn the key
to the START position and hold it there.
The engine will begin turning.
If you remove your hand from the stop
button, the engine will start. Do not take
your hand off the button.
® Continue cranking the engine for about 5 sec-
onds, checking for abnormal sounds.
© Return the key to the OFF position. The engine
will stop.
cap
a n * y — — f
NEUTRAL
MT-3
- 3 0 -
Using an engine which has
NEUTRAL
MV
Drive position
Start position
Starter switc
