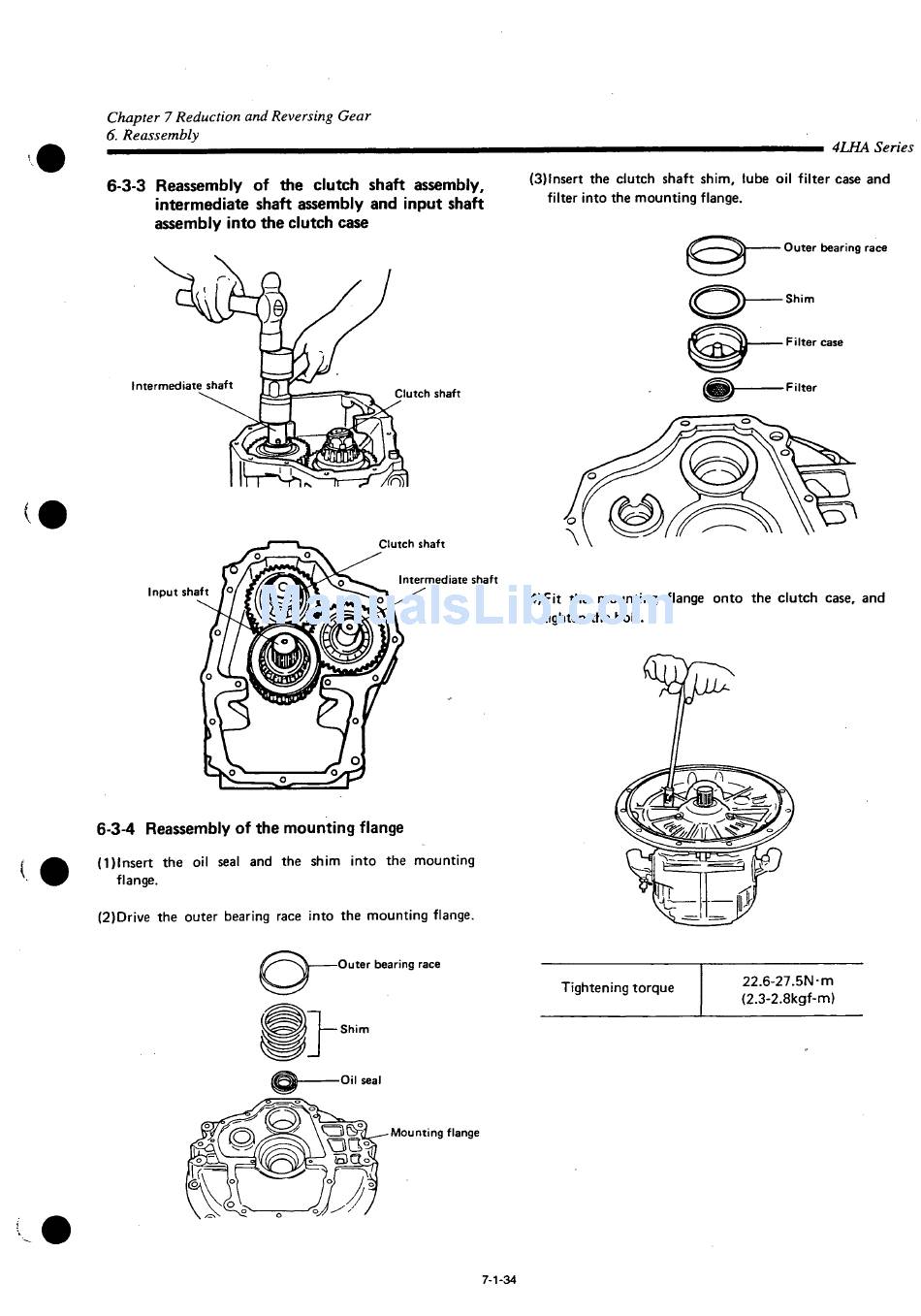

Chapter 7 Reduction and Reversing Gear
6. Reassembly
6-3-3 Reassembly of the clutch shaft assembly,
intermediate shaft assembly and input shaft
assembly into the clutch case
Intermediate shaft
Input shaft
6-3-4 Reassembly of the mounting flange
(1) lnsert the oil seal and the shim into the mounting
flange.
(2) Drive the outer bearing race into the mounting flange.
Clutch shaft
Clutch shaft
Intermediate shaft
- O u t e r bearing race
— S h i m
- O i l seal
Mounting flange
JM
7-1-34
(3)lnsert the clutch shaft shim, lube oil filter case and
filter into the mounting flange.
(4)Fit the mounting flange onto the clutch case, and
tighten the bolt.
Tightening torque
4LHA Series
- O u t e r bearing race
- S h i m
- F i l t e r case
- F i l t e r
22.6-27.5Nm
(2.3-2.8kgf-m)
