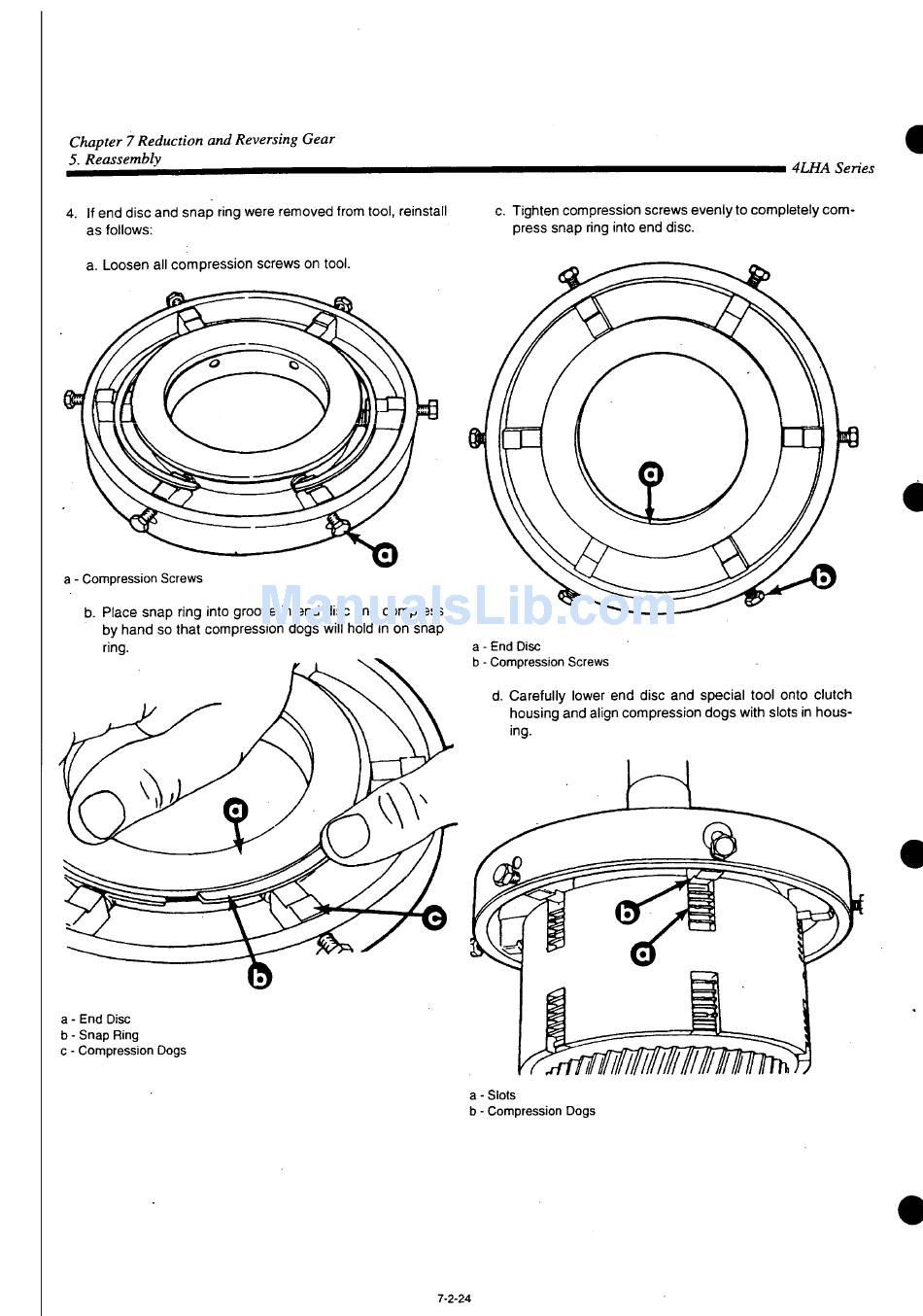

5. Reassembly
4. If end disc and snap ring were removed from tool, reinstall
as follows:
a. Loosen all compression screws on tool.
a - Compression Screws
b. Place snap ring into groove in end disc and compress
by hand so that compression dogs will hold in on snap
ring.
a - End Disc
b - Snap Ring
c - Compression Dogs
c. Tighten compression screws evenly to completely com-
press snap ring into end disc.
a - End Disc
b - Compression Screws
d. Carefully lower end disc and special tool onto clutch
housing and align compression dogs with slots in hous-
ing.
a - Slots
b - Compression Dogs
