Chapter 1 General

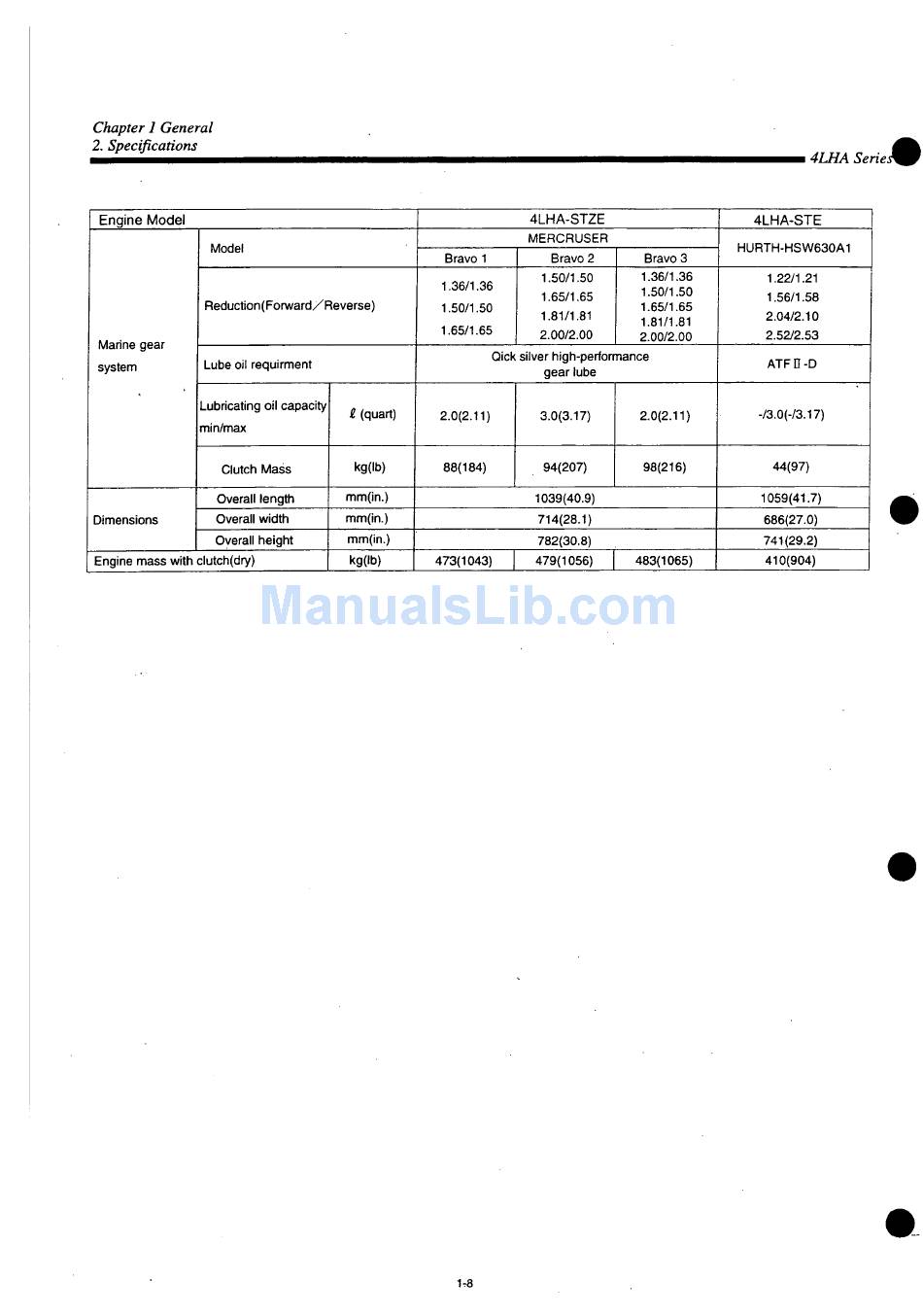

2. Specifications
Engine Model
Model Model
Reduction(Forward/Reverse)
Marine gear Marine gear Marine gear Marine gear Marine gear Marine gear
Lube oil requirment
system system system system system system
Lubricating oil capacity
min/max
Clutch Mass
Overall length
Overall width
Dimensions Dimensions Dimensions
Overall height
Engine mass with clutch(dry)
Bravo 1
1.36/1.36
1.50/1.50
1.65/1.65
Qick silver high-performance
£ (quart)
2.0(2.11)
kg(lb) 88(184)
mm(in.)
mm(in.)
mm(in.)
kg(lb) 473(1043)
1r8
4LHA-STZE
MERCRUSER
Bravo 2 Bravo 3
1.36/1.36
1.50/1.50
1.50/1.50
1.65/1.65
1.65/1.65
1.81/1.81
1.81/1.81
2.00/2.00
2.00/2.00
gear lube
3.0(3.17) 2.0(2.11)
94(207) 98(216)
1039(40.9)
714(28.1)
782(30.8)
479(1056) 483(1065)
i 4LHA Series
4LHA-STE
HURTH-HSW630A1 HURTH-HSW630A1
1.22/1.21
1.56/1.58
2.04/2.10
2.52/2.53
ATF II -D
-/3.0(-/3.17)
44(97)
1059(41.7)
686(27.0)
741(29.2)
410(904)
