Chapter 6 Cooling Water System

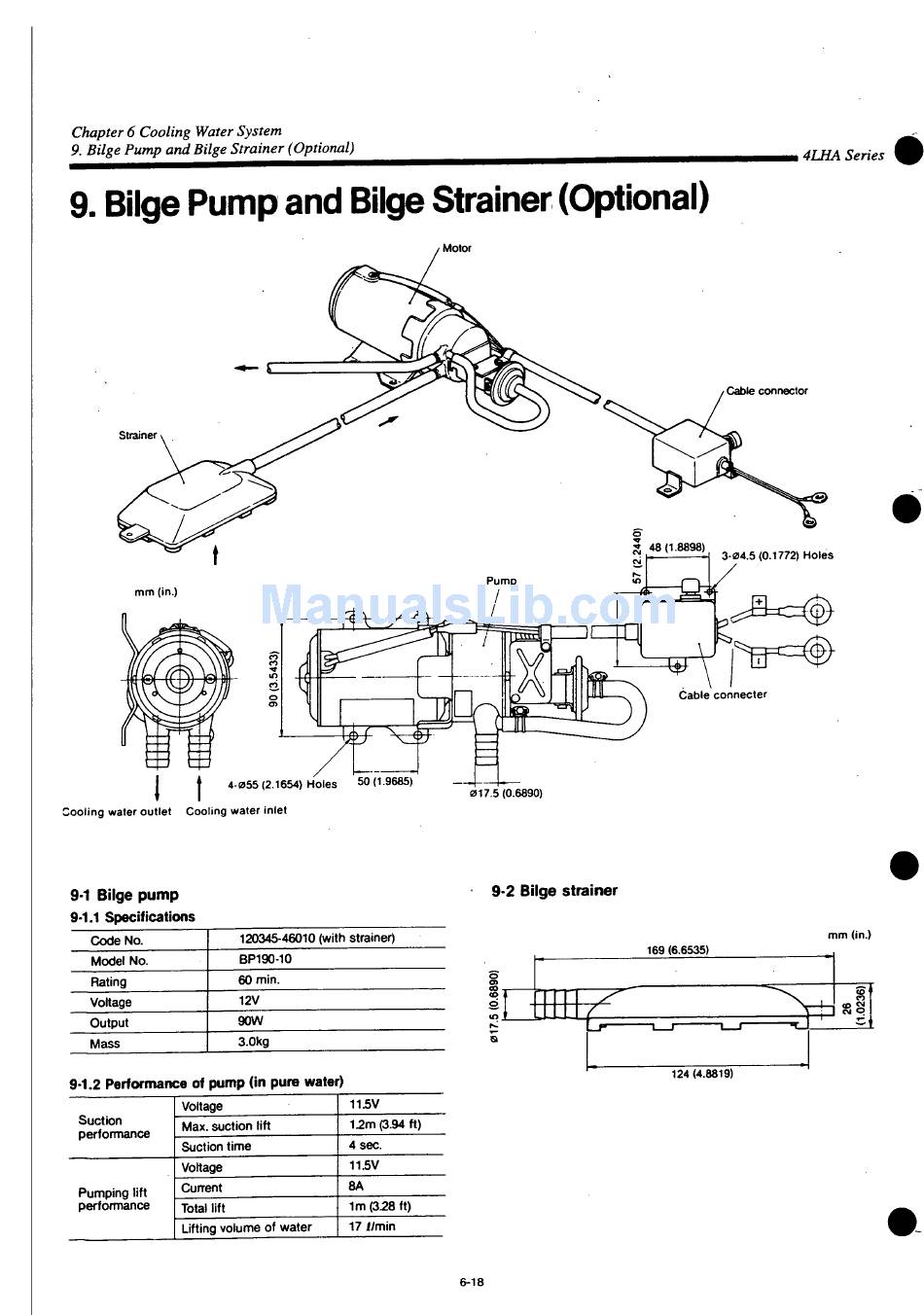

9. Bilge Pump and Bilge Strainer (Optional)
9. Bilge Pump and Bilge Strainer (Optional)
Strainer
j j 4-055 (2.1654) Holes
Pooling water outlet Cooling water inlet
9-1 Bilge pump
9-1.1 Specifications
Code No.
Model No.
60 min.
Rating
12V
Voltage
90W
Output
3.0kg
Mass
9-1.2 Performance of pump (in pure water)
Voltage
Suction Suction Suction
Max. suction lift
performance performance performance
Suction time
Voltage
Current
Pumping lift Pumping lift Pumping lift Pumping lift
performance performance performance performance
Total lift
Lifting volume of water
50(1.9685)
120345-46010 (with strainer)
BP190-10
115V
^2m (3.94 ft)
4 sec.
115V
8A
Im (328 ft)
17 l/min
/ Motor
017.5 (0.6890)
9-2 Bilge strainer
f
f
6-18
i 4LHA Series
Cable connector
169 (6.6535)
1 1 1 ' T
mm (in.)
— 1
