Chapter 7 Reduction and Reversing Gear
2. Shifting Device ,

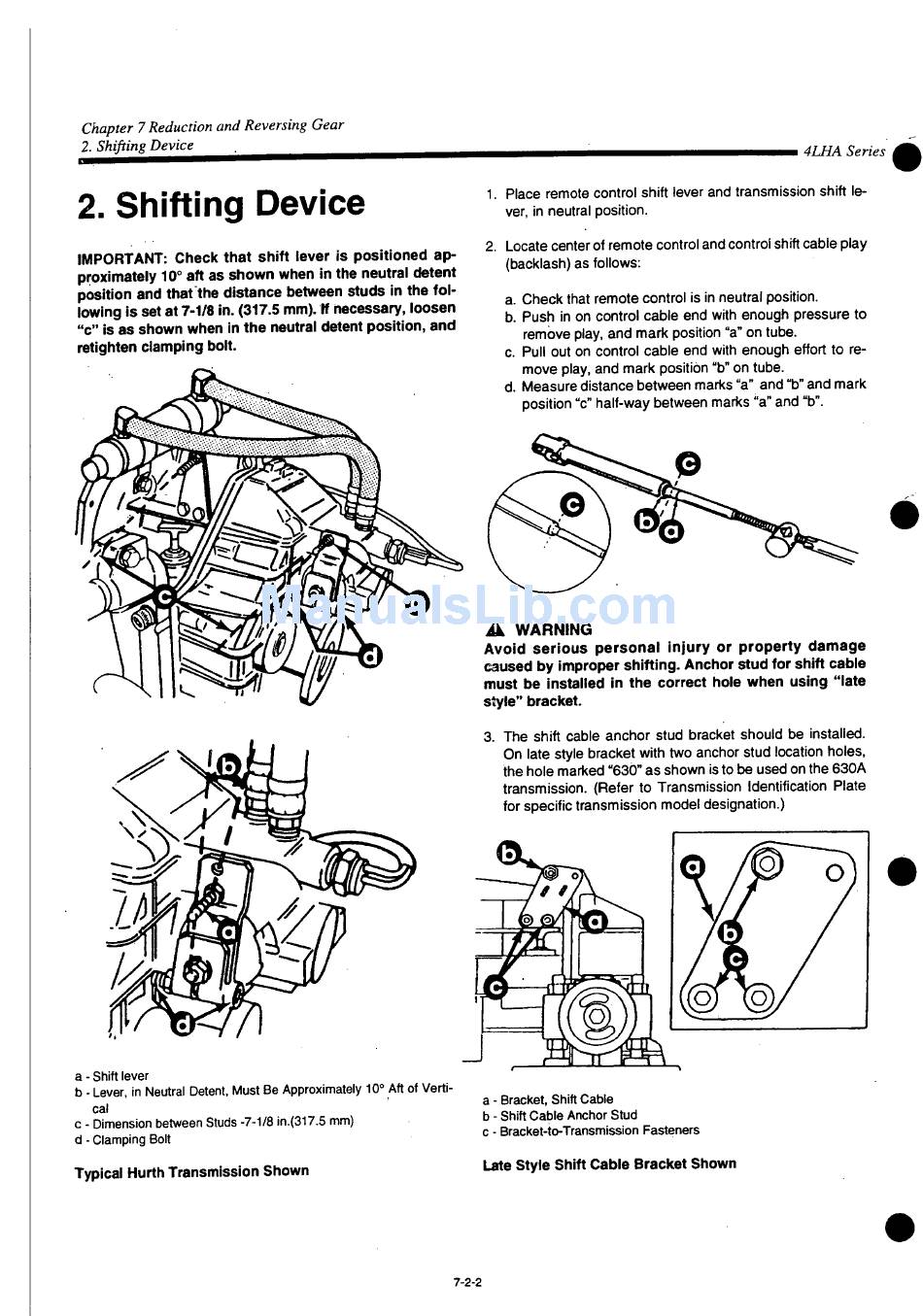

2. Shifting Device
IMPORTANT: Check that shift lever is positioned ap-
proximately 10° aft as shown when in the neutral detent
position and that the distance between studs in the fol-
lowing is set at 7-1/8 in. (317.5 mm). If necessary, loosen
"c" is as shown when in the neutral detent position, and
retighten clamping bolt.
a - Shift lever
b - Lever, in Neutral Detent, Must Be Approximately 10° Aft of Verti-
cal
c - Dimension between Studs -7-1/8 in.(317.5 mm)
d - Clamping Bolt
Typical Hurth Transmission Shown
1. Place remote control shift lever and transmission shift le-
ver, in neutral position.
2. Locate center of remote control and controi shift cable play
(backlash) as follows:
a. Check that remote control is in neutral position.
b. Push in on control cable end with enough pressure to
remove play, and mark position "a" on tube.
c. Pull out on control cable end with enough effort to re-
move play, and mark position "b" on tube.
d. Measure distance between marks "a" and "b" and mark
position "c" half-way between marks "a" and "b".
A WARNING
Avoid serious personal injury or property damage
caused by improper shifting. Anchor stud for shift cable
must be installed in the correct hole when using "late
style" bracket.
3. The shift cable anchor stud bracket should be installed.
On late style bracket with two anchor stud location holes,
the hole marked "630" as shown is to be used on the 630A
transmission. (Refer to Transmission Identification Plate
for specific transmission model designation.)
a - Bracket, Shift Cable
b - Shift Cable Anchor Stud
c - Bracket-to-Transmission Fasteners
Late Style Shift Cable Bracket Shown
7-2-2
4LHA Series
