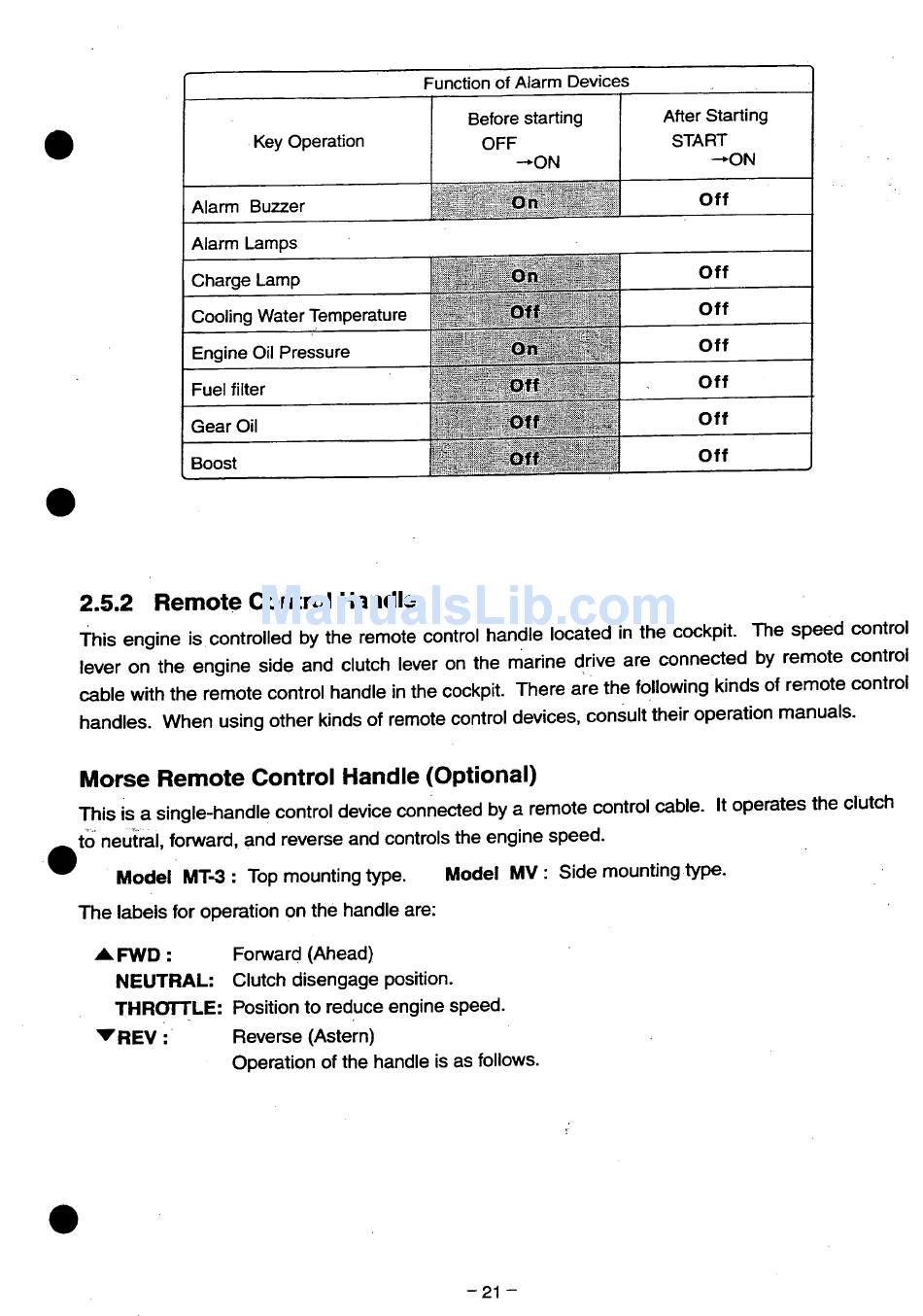

Yanmar 4LHA-HTP Operation Manual page 25

Alarm Buzzer
Alarm Lamps
Charge Lamp
Cooling Water Temperature
Engine Oil Pressure
Fuel filter
Gear Oil
Boost
2.5.2 Remote Control Handle
This engine is controlled by the remote control handle located in the cockpit. The speed control
lever on the engine side and clutch lever on the marine drive are connected by remote control
cable with the remote control handle in the cockpit. There are the following kinds of remote control
handles. When using other kinds of remote control devices, consult their operation manuals.
Morse Remote Control Handle (Optional)
This is a single-handle control device connected by a remote control cable. It operates the clutch
to neutral, forward, and reverse and controls the engine speed.
k
Model MT-3 : Top mounting type.
The labels for operation on the handle are:
A . FWD : Forward (Ahead)
NEUTRAL: Clutch disengage position.
THROTTLE: Position to reduce engine speed.
• R E V : Reverse (Astern)
Operation of the handle is as follows.
Function of Alarm Devices
Key Operation
Before starting
OFF
—ON
O n
Off
On
Off
Off
Off
Model MV : Side mounting type.
-21 -
After Starting
START
— O N
Off
O f f
Off
Off
Off
Off
Off
