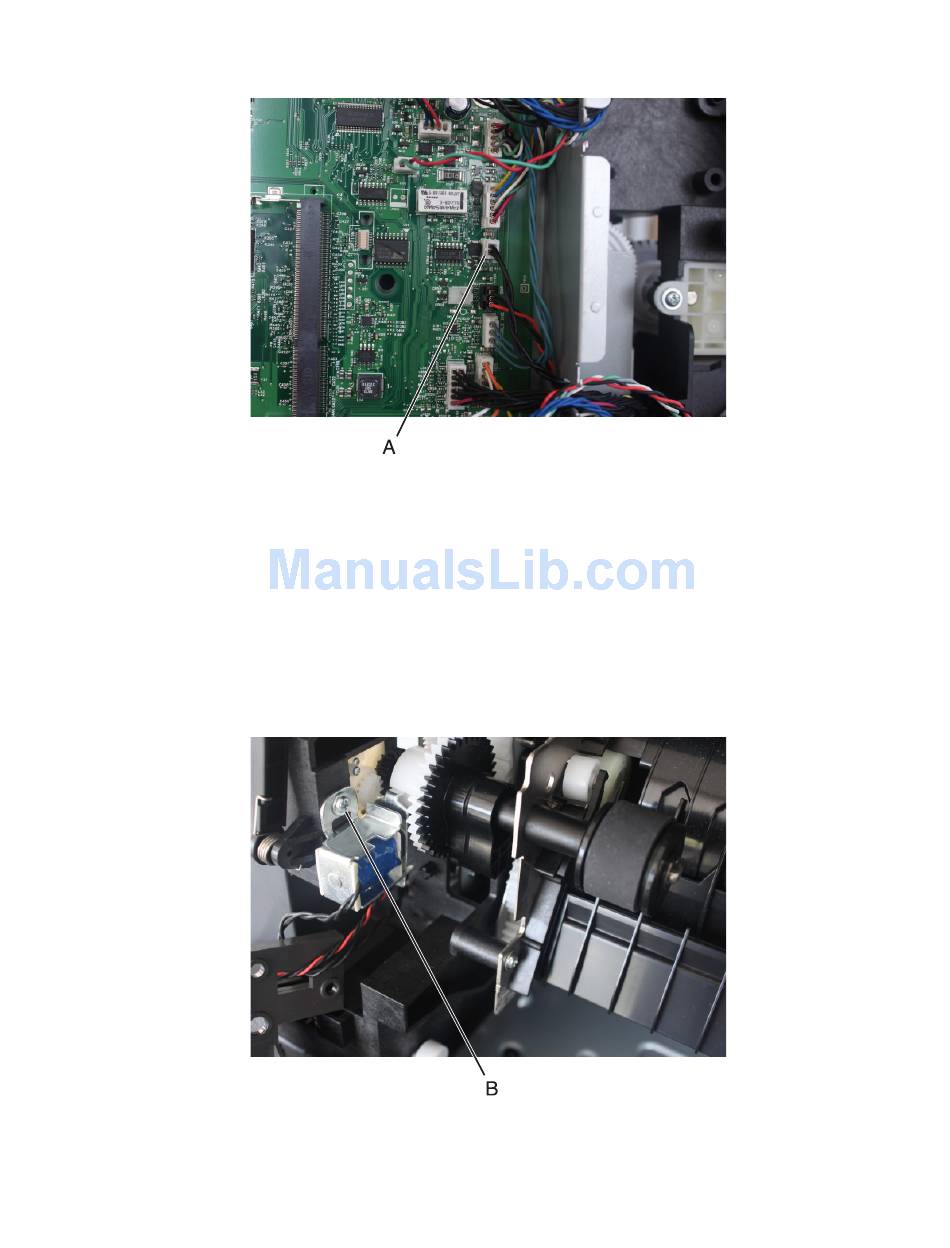

Disconnect the cable (A).
4
Remove the media tray. See
5
Open the control panel door.
6
Remove the toner cartridge.
7
Remove the imaging unit.
8
Remove the MPF feeder lift plate. See
Note: Leave the MPF feeder lift plate hanging. (Do not disconnect the MPF feeder lift plate cable.)
9
Remove the media turn guide. See
10
Remove the screw (B).
Installation note: Make sure the MPF solenoid latch is properly seated in the groove.
"Media tray removal" on page
"MPF feeder lift plate removal" on page
"Media turn guide removal" on page
Repair information
403
479.
397.
394.
