Figure 59: Sliding The Screwdriver To The Narrow Part Of The Keyhole; Figure 60: Removing An Uplink Module From An Ex4200 Switch - Juniper EX4200 Hardware Manual

Related
Documentation
Copyright © 2015, Juniper Networks, Inc.
CAUTION: Ensure the screwdriver does not slip out of the keyhole when
you pull the uplink module out of the switch chassis.
Using both hands, gently pull the screwdriver to slide the uplink module halfway out
4.
of the chassis (see Figure 60 on page
Place one hand under the uplink module to support it and slide it completely out of
5.
the chassis.
Slide the screwdriver out of the keyhole.
6.
Place the uplink module in an antistatic bag or on an antistatic mat placed on a flat,
7.
stable surface.

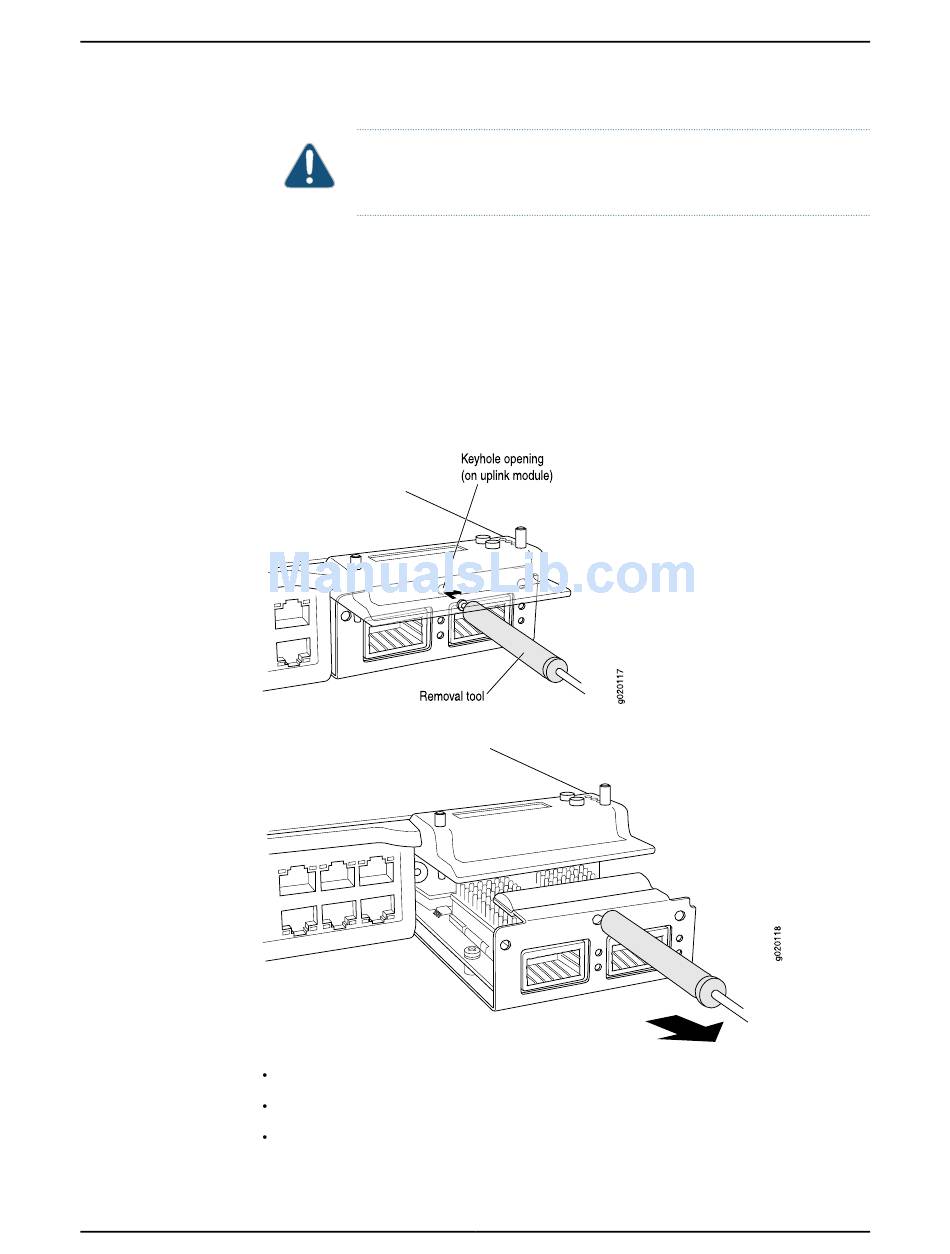

Figure 59: Sliding the Screwdriver to the Narrow Part of the Keyhole

Figure 60: Removing an Uplink Module from an EX4200 Switch

Installing an Uplink Module in an EX4200 Switch on page 215
Installing and Removing EX4200 Switch Hardware Components on page 169
Field-Replaceable Units in EX4200 Switches on page 10
Chapter 18: Replacing Uplink Module
219).
219
