Installing and Removing EX4200 Switch Hardware Components

Copyright © 2015, Juniper Networks, Inc.

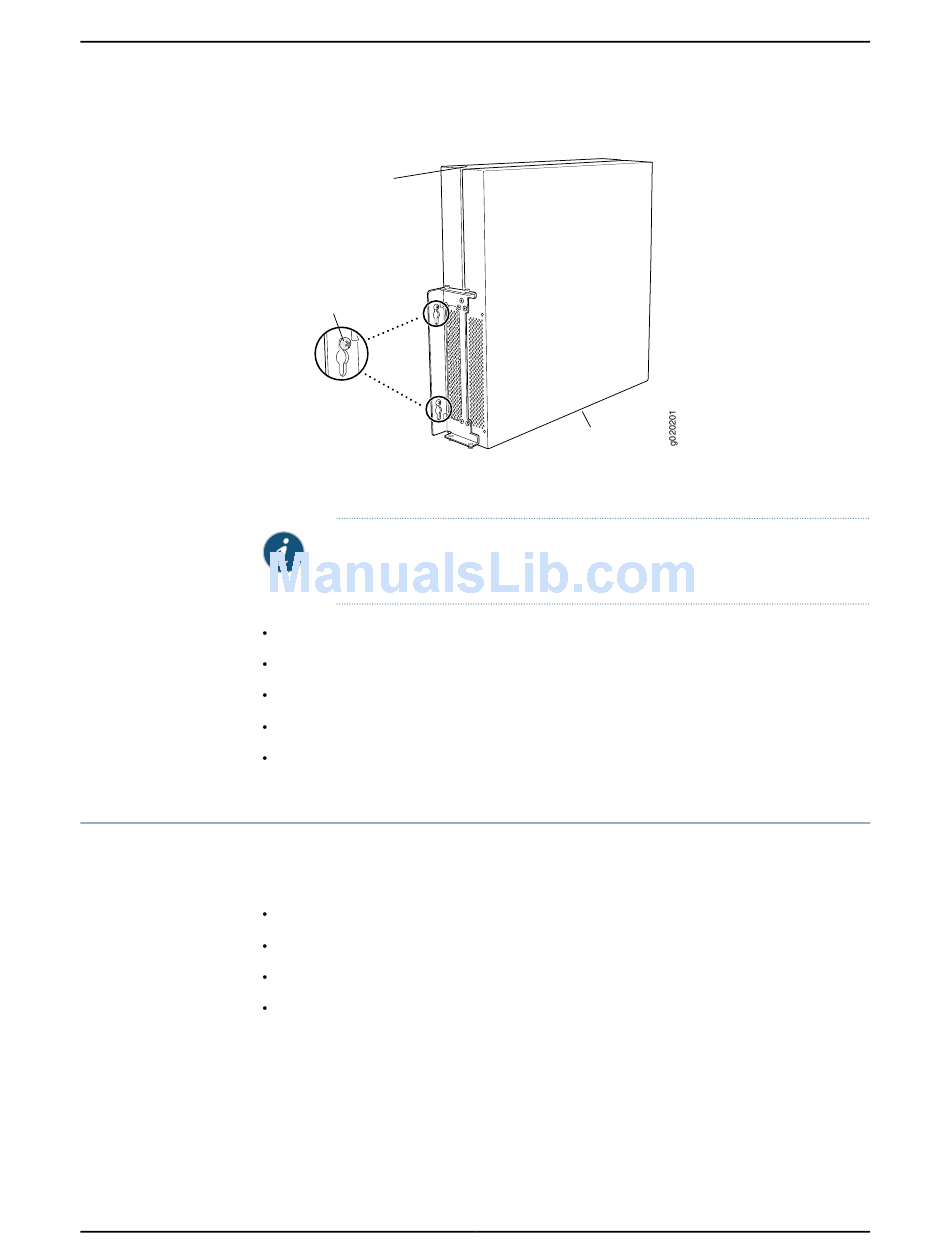

Figure 38: Mounting the Switch on a Wall

Rear panel
Hang attached brackets
on wall-mounted screws.
Tighten the mounting screws.
5.
NOTE: If it is an EX4200-24F switch, we recommend you insert dust covers
in unused SFP ports.
Connecting AC Power to an EX4200 Switch on page 177
Connecting DC Power to an EX4200 Switch on page 179
Connecting and Configuring an EX Series Switch (CLI Procedure) on page 195
Connecting and Configuring an EX Series Switch (J-Web Procedure) on page 198
Wall-Mounting Warning for EX4200 Switches on page 284
The EX4200 switch chassis is a rigid sheet-metal structure that houses the hardware
components. The field-replaceable units (FRUs) in EX4200 switches are:
Power supply
Fan tray
Uplink module
Transceivers
The power supply, fan tray, uplink module, and transceivers are hot-removable and
hot-insertable: You can remove and replace them without powering off the switch or
disrupting switch functions.
To install a power supply in an EX4200 switch, follow instructions in
Supply in an EX4200 Switch" on page
Chapter 12: Installing the Switch
Front
panel
211. To remove a power supply from an EX4200
"Installing a Power
169
