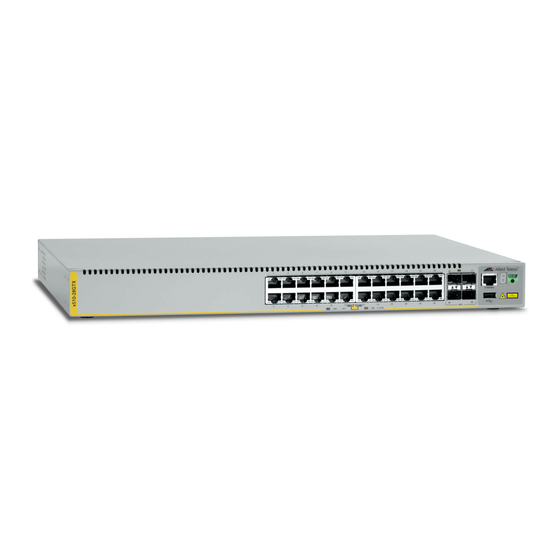

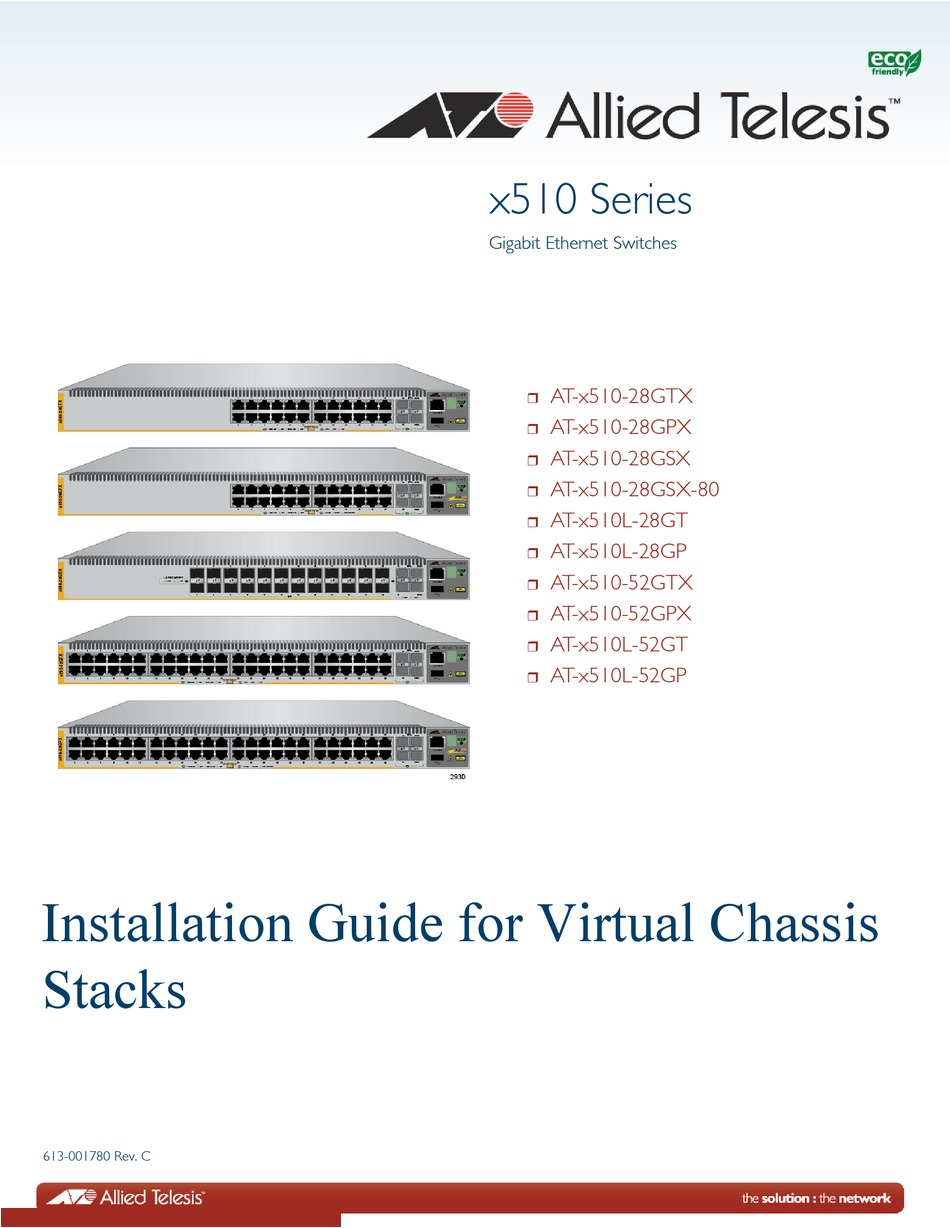

Page 1 Series Gigabit Ethernet Switches AT-x510-28GTX  AT-x510-28GPX  AT-x510-28GSX  AT-x510-28GSX-80  AT-x510L-28GT  AT-x510L-28GP  AT-x510-52GTX  AT-x510-52GPX  AT-x510L-52GT  AT-x510L-52GP  Installation Guide for Virtual Chassis Stacks 613-001780 Rev. C...
Page 2 Telesis, Inc. be liable for any incidental, special, indirect, or consequential damages whatsoever, including but not limited to lost profits, arising out of or related to this manual or the information contained herein, even if Allied Telesis, Inc. has been advised of, known, or should have known, the possibility of such damages.
Page 3: Electrical Safety And Emissions Standards
Electrical Safety and Emissions Standards This product meets the following standards. U.S. Federal Communications Commission Radiated Energy Note: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of FCC Rules.
Page 4: Translated Safety Statements
Translated Safety Statements Important: The indicates that a translation of the safety statement is available in a PDF  document titled “Translated Safety Statements” on the Allied Telesis website at http:// www.alliedtelesis.com/support.
Page 5: Table Of Contents
Contents Preface ....................................11 Document Conventions ...............................12 Contacting Allied Telesis ..............................13 Chapter 1: Overview ................................ 15 Features ....................................16 x510 Models .................................16 10/100/1000 Mbps Twisted Pair Ports .........................16 Power Over Ethernet ..............................16 SFP Slots ..................................17 SFP+ Slots ...................................17 Stacking Slots................................18 LEDs.....................................18 Installation Options ...............................18...
Page 6 Contents Stacking Transceivers................................. 52 Stacking Port Topologies ..............................54 Master and Member Switches ............................58 Selection of the Master Switch ............................ 58 ID Numbers ................................. 59 Specifying Ports in the Command Line Interface........................ 60 Chapter 3: Beginning the Installation ..........................61 Reviewing Safety Precautions ............................
Page 7 Figure 7: Back Panel of the AT-x510-28GSX-80 DC Powered Switch.................23 Figure 8: x510 Series Management Panel ...........................24 Figure 9: LEDs for the 10/100/1000Base-T Ports on the AT-x510-28GTX, AT-x510L-28GT, AT-x510-52GTX, and AT-x510L-52GT Switches..............................35 Figure 10: LEDs for the 10/100/1000Base-T Ports on the AT-x510-28GPX, AT-x510L-28GP, AT-x510-52GPX, and AT-x510L-52GP Switches ..............................37...
Page 8 Figures Figure 48: Rebooting the Switch with the REBOOT Command....................89 Figure 49: Removing the Dust Plug from the S1 Slot ......................92 Figure 50: Removing the Dust Cover from the AT-StackXS/1.0 Transceiver ...............93 Figure 51: Installing the AT-StackXS/1.0 Transceiver in Slot S1..................94 Figure 52: Removing the Dust Plug from the S2 Slot ......................95 Figure 53: Installing the AT-StackXS/1.0 Transceiver in Slot S2..................96 Figure 54: Handle on the AT-StackOP/0.3 and AT-StackOP/9.0 Transceivers..............97...
Page 9 Table 3: Twisted Pair Cable Requirements for the 10/100Base-TX Ports at 10 or 100Mbps ..........28 Table 4: Twisted Pair Cable Requirements for the 10/100/1000Base-T Ports at 1000Mbps ..........29 Table 5: LEDs on the AT-x510-28GTX, AT-x510L-28GT, AT-x510-52GTX, and AT-x510L-52GT ........36 Table 6: LEDs on the 10/100/1000Base-T Ports on the AT-x510-28GPX, AT-x510L-28GP, AT-x510-52GPX, and AT-x510L-52GP Switches ..............................37...
Page 10 Tables...
Page 11: Preface
Layer 2+ and Basic Layer 3, Gigabit Ethernet switches. This preface contains the following sections: “Document Conventions” on page 12  “Contacting Allied Telesis” on page 13  Note This guide explains how to install the switches in a stack ™...
Page 12: Document Conventions
Preface Document Conventions This document uses the following conventions: Note Notes provide additional information. Caution Cautions inform you that performing or omitting a specific action may result in equipment damage or loss of data. Warning Warnings inform you that performing or omitting a specific action may result in bodily injury.
Page 13: Contacting Allied Telesis
Series Installation Guide for Virtual Chassis Stacks Contacting Allied Telesis If you need assistance with this product, you may contact Allied Telesis technical support by going to the Support & Services section of the Allied Telesis web site at www.alliedtelesis.com/support. You can find links for...
Page 14 Preface...
Page 15: Chapter 1: Overview
Chapter 1 Overview This chapter contains the following sections: “Features” on page 16  “Front and Back Panels” on page 20  “Management Panel” on page 24  “10/100/1000Base-T Twisted Pair Ports” on page 25  “Power Over Ethernet” on page 27 ...
Page 16: Features
Chapter 1: Overview Features Here are the switches and their features: x510 Models Here are the x510 Series switches: AT-x510-28GTX  AT-x510-28GPX  AT-x510-28GSX  AT-x510-28GSX-80  AT-x510L-28GT  AT-x510L-28GP  AT-x510-52GTX  AT-x510-52GPX  AT-x510L-52GT  AT-x510L-52GP (not available in North America) ...
Page 17: Sfp Slots
Supports single-port BiDi 1000Base-LX SFP transceivers  Supports 1000Base-ZX SFP transceivers  Note The SFP+ slots do not support 100Mbps 100Base-FX transceivers. Note SFP and SFP+ transceivers must be purchased separately. For a list of supported transceivers, contact your Allied Telesis distributor or reseller.
Page 18: Stacking Slots
Chapter 1: Overview Note SFP+ slots 27 and 28 on the AT-x510-28GTX and AT-x510-28GPX Switches and slots 51 and 52 on the AT-x510-52GTX and AT-x510-52GPX Switches are initially configured as stacking slots for the VCStack feature. If you intend to use the switch as a stand- alone unit, you must disable the VCStack feature before using the slots with standard SFP or SFP+ transceivers.
Page 19: Management Software And Interfaces
 SNMPv1, v2c, and v3  Power Supplies The AT-x510-28GTX, AT-x510-28GPX, AT-x510-28GSX, AT-x510- 52GTX, and AT-x510-52GPX Switches have two pre-installed AC power supplies. The AT-x510L-28GP, AT-x510L-28GT, AT-x510L-52GP, and AT-x510L-52GT Switches have one pre-installed AC power supply. The AT-x510-28GSX-80 Switch has two pre-installed DC power supplies. The DC power supply option is only available in the AT-x510-28GSX-80 Switch.
Page 20: Front And Back Panels
Figure 2 on page 21. AT-x510-28GTX, AT-x510L-28GT 10/100/1000Base-T Ports Management Panel SFP+ Slots SFP+ or Stacking Slots AT-x510-28GPX 10/100/1000Base-T Ports Management Panel with PoE SFP+ Slots SFP+ or Stacking Slots Figure 1. Front Panels of the AT-x510-28GTX, AT-x510L-28GT, and AT- x510-28GPX Switches...
Page 21: Figure 2: Front Panels Of The At-X510-28Gsx, At-X510-28Gsx-80, At-X510-52Gtx, At-X510L-52Gt, At-X510-52Gpx
x510 Series Installation Guide for Virtual Chassis Stacks AT-x510-28GSX, AT-x510-28GSX-80 Slots for 100/1000Base Management Fiber Optic Transceivers Panel SFP+ Slots SFP+ or Stacking Slots AT-x510-52GTX, AT-x510L-52GT 10/100/1000Base-T Ports Management Panel SFP+ Slots SFP+ or Stacking Slots AT-x510-52GPX, AT-x510L-52GP 10/100/1000Base-T Ports Management with PoE Panel...
Page 22: Figure 3: Back Panel Of The At-X510-28Gtx, At-X510-52Gtx, And At-X510-28Gsx Switches
Chapter 1: Overview Figure 3 shows the back panel of the AT-x510-28GTX, AT-x510-52GTX, and AT-x510-28GSX Switches. AC Power AC Power Connector Connector (Power Supply 2) (Power Supply 1) Figure 3. Back Panel of the AT-x510-28GTX, AT-x510-52GTX, and AT- x510-28GSX Switches Figure 4 shows the back panel of the AT-x510-28GPX and AT-x510-52GPX Switches.
Page 23: Figure 5: Back Panel Of The At-X510L-28Gt And At-X510L-52Gt Switches
x510 Series Installation Guide for Virtual Chassis Stacks Figure 5 shows the back panel of the AT-x510L-28GT and AT-x510L-52GT Switches. AC Power Connector (Power Supply) Figure 5. Back Panel of the AT-x510L-28GT and AT-x510L-52GT Switches Figure 6 shows the back panel of the AT-x510L-28GP and AT-x510L-52GP Switches.
Page 24: Management Panel
Chapter 1: Overview Management Panel Figure 8 identifies the components in the management panel on the x510 Series switches. Console Management Port Switch ID LED eco-friendly Button USB Port Figure 8. x510 Series Management Panel...
Page 25: 10/100/1000Base-T Twisted Pair Ports
Series Installation Guide for Virtual Chassis Stacks 10/100/1000Base-T Twisted Pair Ports The AT-x510-28GTX, AT-x510-28GPX, AT-x510L-28GT, and AT-x510L-28GP Switches have 24 10/100/1000Base-T ports. The AT- x510-52GTX, AT-x510-52GPX, AT-x510L-52GT, and AT-x510L-52GP Switches have 48 10/100/1000Base-T ports. Speed The ports can operate at 10, 100, or 1000 Mbps. The speeds may be set manually using the management software or automatically with Auto- Negotiation (IEEE 802.3u), the default setting.
Page 26: Maximum Distance
Chapter 1: Overview You may set the wiring configurations of the ports manually or let the switch configure them automatically with auto-MDI/MDI-X (IEEE 802.3ab- compliant). This feature enables the switch to automatically negotiate with network devices to establish their proper settings. The MDI and MDI-X settings do not apply when ports are operating at 1000 Mbps.
Page 27: Power Over Ethernet
x510 Series Installation Guide for Virtual Chassis Stacks Power Over Ethernet The AT-x510-28GPX, AT-x510L-28GP, AT-x510-52GPX, and AT-x510L-52GP Switches feature Power over Ethernet (PoE) on the 10/ 100/1000Base-T ports. PoE is used to supply power to network devices over the same twisted pair cables that carry the network traffic. The main advantage of PoE is that it can make it easier to install a network.
Page 28: Cable Requirements
Chapter 1: Overview Table 2. IEEE Powered Device Classes Maximum Power Class Output from a Switch PD Power Range Port 15.4W 0.44W to 12.95W 4.0W 0.44W to 3.84W 7.0W 3.84W to 6.49W 15.4W 6.49W to 12.95W 30.0W 12.95W to 25.5W Cable The cable requirements for ports operating at 10 or 100Mbps are given in Table 3.
Page 29: Power Budget
x510 Series Installation Guide for Virtual Chassis Stacks The cable requirements for ports operating at 1000Mbps are given in Table 4. Table 4. Twisted Pair Cable Requirements for the 10/100/1000Base-T Ports at 1000Mbps 1000Mbps Cable Type Non- PoE+ Standard TIA/EIA 568-B-compliant Category 3 shielded or unshielded cabling with 100 ohm impedance and a frequency of 16 MHz.
Page 30: Port Prioritization
Chapter 1: Overview together. The switch should be able to power all of the devices simultaneously as long as the total is below its power budget. If the total exceeds the available power budget, you should consider reducing the number of PoE devices so that all of the devices receive power. Otherwise, the switch powers a subset of the devices, based on port prioritization.
Page 31: Wiring Implementation
x510 Series Installation Guide for Virtual Chassis Stacks You can use port prioritization on dual power supply PoE switches to protect your important networking devices from loss of power should one of the power supplies fail or lose power. If you limit the power requirements of the critical devices connected to a switch to less than 185 watts, the PoE power provided by a single power supply, a switch will have sufficient power to support the critical devices even if it has only one functional...
Page 32: Sfp+ Slots
The switches support a variety of short and long distance SFP and SFP+ modules. For a list of supported SFP modules, contact your Allied Telesis representative or visit our web site. Note...
Page 33: Stacking Sfp+ Slots
x510 Series Installation Guide for Virtual Chassis Stacks Stacking SFP+ Slots Two of the four SFP+ slots on the front panel of the switch can be used with stacking transceivers to create a VCStack of up to four switches. The switches of a VCStack act as a single virtual unit.
Page 34: Eco-Friendly Button
Chapter 1: Overview eco-friendly Button You may turn off the port LEDs to conserve electricity when you are not monitoring the switch. The LEDs are toggled with the eco-friendly button on the front panel of the switch or the ECOFRIENDLY LED and NO ECOFRIENDLY LED commands in the Global Configuration mode of the command line interface.
Page 35: Leds
The LEDs are shown in Figure 9. Ports Link/Activity Duplex Mode Duplex Mode Link/Activity Figure 9. LEDs for the 10/100/1000Base-T Ports on the AT-x510-28GTX, AT-x510L-28GT, AT-x510-52GTX, and AT-x510L-52GT Switches The LEDs are described in Table 5 on page 36.
Page 36: Table 5: Leds On The At-X510-28Gtx, At-X510L-28Gt, At-X510-52Gtx, And At-X510L-52Gt
Chapter 1: Overview Table 5. LEDs on the AT-x510-28GTX, AT-x510L-28GT, AT-x510- 52GTX, and AT-x510L-52GT State Description Solid Green A port has established a 1000 Mbps link to a network device. Flashing A port is transmitting or receiving data at Green 1000 Mbps.
Page 37: Figure 10. Leds For The 10/100/1000Base-T Ports On The At-X510-28Gpx, At-X510L-28Gp, At-X510-52Gpx, And At-X510L-52Gp Switches
x510 Series Installation Guide for Virtual Chassis Stacks Link/Activity Link/Activity Figure 10. LEDs for the 10/100/1000Base-T Ports on the AT-x510-28GPX, AT-x510L-28GP, AT-x510-52GPX, and AT-x510L-52GP Switches The LEDs are described in Table 6. Table 6. LEDs on the 10/100/1000Base-T Ports on the AT-x510-28GPX, AT-x510L-28GP, AT-x510-52GPX, and AT-x510L-52GP Switches State Description...
Page 38: Leds For The Sfp Slots
Chapter 1: Overview Table 6. LEDs on the 10/100/1000Base-T Ports on the AT-x510-28GPX, AT-x510L-28GP, AT-x510-52GPX, and AT-x510L-52GP Switches State Description Green The switch is detecting a powered device (PD) on the port and is delivering power to Solid Amber The switch has shut down PoE+ on the port because of a fault condition.
Page 39: Leds For The Sfp+ Slots
x510 Series Installation Guide for Virtual Chassis Stacks SFP Slot LEDs Figure 11. SFP Slot LEDs on the AT-x510-28GSX and AT-x510-28GSX-80 Switches The LEDs are described in Table 7. Table 7. SFP Slot LEDs on the AT-x510-28GSX and AT-x510-28GSX-80 Switches State Description Link/Activity...
Page 40: Leds For The Stacking Slots
Chapter 1: Overview SFP+ Slot LEDs Figure 12. SFP+ Slot LEDs The LEDs are described in Table 8. Table 8. SFP+ Slot LEDs State Description Link/Activity The slot is empty, the SFP or SFP+ transceiver has not established a link to a network device, or the LEDs are turned off.
Page 41: Switch Id Led
x510 Series Installation Guide for Virtual Chassis Stacks Table 9. Stacking Slot LEDs State Description Link/Activity The slot is empty, the stacking transceiver has not established a link to a network device, or the LEDs are turned off. To turn on the LEDs, use the eco-friendly button.
Page 42: Figure 14: Switch Id Led
Chapter 1: Overview The switch is booting up. The switch has encountered a fault condition. The switch is operating as a stand-alone unit, with the ID number 0. The switch has an ID number of 1 to 4 as part of a VCStack. The dot in the lower right corner flashes when the switch accesses USB memory.
Page 43: Figure 15: Switch Id Leds In The Low Power Mode
x510 Series Installation Guide for Virtual Chassis Stacks The switch is the master switch of a VCStack. The switch is operating as a stand-alone unit. The switch is a member switch of a VCStack. Figure 15. Switch ID LEDs in the Low Power Mode...
Page 44: Usb Port
Chapter 1: Overview USB Port The management panel has a USB port. You may use the port to store configuration files on flash drives and to restore configuration files to switches whose settings have been lost or corrupted, or to quickly configure replacement units.
Page 45: Console Port
x510 Series Installation Guide for Virtual Chassis Stacks Console Port The Console port is used to establish a management session with the switch to configure its features and parameter settings. This type of management uses serial RS-232 and is commonly referred to as local or out-of-band management because it is not conducted over your network.
Page 46: Power Supplies
You can protect the network operations of the switch from a power circuit failure by connecting the power supplies to different circuits. The non-PoE AT-x510-28GTX, AT-x510-28GSX, and AT-x510-  52GTX Switches require only one power supply for full operations.
Page 47 x510 Series Installation Guide for Virtual Chassis Stacks Warning Power cord is used as a disconnection device. To de-energize equipment, disconnect the power cord.  Warning This unit might have more than one power cord. To reduce the risk of electric shock, disconnect all power cords before servicing the unit.
Page 48 Chapter 1: Overview...
Page 49: Chapter 2: Virtual Chassis Stacking
Chapter 2 Virtual Chassis Stacking The sections in this chapter are: “Overview” on page 50  “Stacking Slots” on page 51  “Stacking Transceivers” on page 52  “Stacking Port Topologies” on page 54  “Master and Member Switches” on page 58 ...
Page 50: Overview
Chapter 2: Virtual Chassis Stacking Overview The Virtual Chassis Stacking (VCStack) feature allows you to connect up to four x510 Series switches to form a virtual switch in which the devices function as a single networking unit. The benefits of the VCStack feature are: Simplifies management - You can manage the devices of the stack ...
Page 51: Stacking Slots
x510 Series Installation Guide for Virtual Chassis Stacks Stacking Slots The x510 Series Switches come with two stacking slots. The slots are the last two SFP+ slots on the switches and are labeled “S1/27” and “S2/28” on the 28-port switches and “S1/51” and “S2/52” on the 52-port switches. The slots have two functions.
Page 52: Stacking Transceivers
Chapter 2: Virtual Chassis Stacking Stacking Transceivers You connect the switches of the VCStack with the stacking transceivers listed in Table 10 and shown in Figure 16. Table 10. Stacking Transceivers Stacking Cable Type Operating Distance Transceiver Model AT-StackXS/1.0 Twinax cable 1 meter (3.29 feet) AT-StackOP/0.3 62.5/125 µm multi-...
Page 53 x510 Series Installation Guide for Virtual Chassis Stacks Here are the transceiver guidelines: The stacking transceivers may only be used in the stacking slots  and only with the VCStack feature. You may not use the transceivers as regular networking ports. The AT-StackOP/0.3 and AT-StackOP/9.0 transceivers must be ...
Page 54: Stacking Port Topologies
Chapter 2: Virtual Chassis Stacking Stacking Port Topologies The switches of a stack are connected with the S1 and S2 ports and the stacking transceivers shown in Figure 16 on page 52. There are two wiring configurations. The first topology is called the linear topology.
Page 55: Figure 18: Stack Of Four Switches In The Linear Topology
x510 Series Installation Guide for Virtual Chassis Stacks Figure 18. Stack of Four Switches in the Linear Topology The second topology is called the ring topology. It is similar to the linear topology, except that the unused stacking ports on the end switches of the stack are connected to form a physical loop.
Page 56: Figure 19: Stack Of Two Switches In The Ring Topology
Chapter 2: Virtual Chassis Stacking Figure 19. Stack of Two Switches in the Ring Topology Figure 20 on page 57 is an example of a stack of four switches in the ring topology.
Page 57: Figure 20: Stack Of Four Switches In The Ring Topology
x510 Series Installation Guide for Virtual Chassis Stacks Figure 20. Stack of Four Switches in the Ring Topology The topologies are the same in terms of network speed and performance. However, the ring topology is the recommended wiring configuration because of the secondary path through the stacking ports. The two pathways protect the switches of the stack against the loss of communications due to a failure of a stacking port, cable, or switch.
Page 58: Master And Member Switches
Chapter 2: Virtual Chassis Stacking Master and Member Switches The stack has one master switch. The functions of the master switch include: Coordinating and monitoring stack operations.  Verifying that the switches are using the same version of  management software. It automatically downloads its management software over the stacking cables to switches with different software versions.
Page 59: Id Numbers
x510 Series Installation Guide for Virtual Chassis Stacks ID Numbers Each switch must be assigned an ID number. The range is 1 to 4 and the default is 1. The ID numbers are displayed on the ID LEDs on the front panels of the units.
Page 60: Specifying Ports In The Command Line Interface
Chapter 2: Virtual Chassis Stacking Specifying Ports in the Command Line Interface The command line interface in the management software on the switch has a parameter that you use to specify the individual ports. The parameter is the PORT parameter, and Figure 21 shows its format. port1 Stack ID Module ID...
Page 61: Chapter 3: Beginning The Installation
Chapter 3 Beginning the Installation The chapter contains the following sections: “Reviewing Safety Precautions” on page 62  “Choosing a Site for the Switches” on page 66  “Planning a Stack” on page 67  “Unpacking the Switch” on page 69 ...
Page 62: Reviewing Safety Precautions
Chapter 3: Beginning the Installation Reviewing Safety Precautions Please review the following safety precautions before beginning the installation procedure. Note Safety statements that have the symbol are translated into  multiple languages in the Translated Safety Statements document at www.alliedtelesis.com/support. Warning Class 1 Laser product.
Page 63 Only one grounding post on the DC powered AT-x510-28GSX-80 Switch should be connected to the building protective earth. The second grounding post should not be used. Allied Telesis recommends using the grounding post for power supply 1 (PSU 1). Note Pluggable Equipment.
Page 64 Chapter 3: Beginning the Installation Caution Circuit Overloading: Consideration should be given to the connection of the equipment to the supply circuit and the effect that overloading of circuits might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.
Page 65 x510 Series Installation Guide for Virtual Chassis Stacks Caution Installation of the equipment in a rack should be such that the amount of air flow required for safe operation of the equipment is not compromised.  Warning Reliable earthing of rack-mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuits (e.g., use of power strips).
Page 66: Choosing A Site For The Switches
Chapter 3: Beginning the Installation Choosing a Site for the Switches Observe these requirements when planning the installation of the switches of a stack. If you plan to install the switches in an equipment rack, check to be  sure that the rack is safely secured so that it will not tip over. Devices in a rack should be installed starting at the bottom, with the heavier devices near the bottom of the rack.
Page 67: Planning A Stack
x510 Series Installation Guide for Virtual Chassis Stacks Planning a Stack Here are the guidelines to planning a stack: A stack can have up to four x510 Series switches.  A stack can have different models of x510 Series switches. ...
Page 68: Table 11: Operating Distances Of The At-Stackop/0.3 Transceiver
Chapter 3: Beginning the Installation Table 11. Operating Distances of the AT-StackOP/0.3 Transceiver Minimum Modal Fiber Type Bandwidth @ 850 Operating Range nm (MHz*km) 62.5/125 µm multi- 2 to 26 meters mode fiber optic (7 to 85 feet) cable 2 to 33 meters (7 to 108 feet) 50/125 µm multi- 2 to 66 meters...
Page 69: Unpacking The Switch
Unpacking the Switch Figure 22 lists the items that come with the switch. If any item is missing or damaged, contact your Allied Telesis sales representative for assistance. One 2 m (6.6 ft) local management cable with RJ-45 (8P8C) and DB-9 (D-sub 9-pin)
Page 70 Chapter 3: Beginning the Installation...
Page 71: Chapter 4: Installing The Switches On A Table Or In An Equipment Rack
Chapter 4 Installing the Switches on a Table or in an Equipment Rack The procedures in this chapter are: “Installing the Switches on a Table or Desktop” on page 72  “Installing the Switch in an Equipment Rack” on page 73 ...
Page 72: Installing The Switches On A Table Or Desktop
Chapter 4: Installing the Switches on a Table or in an Equipment Rack Installing the Switches on a Table or Desktop This section contains the procedure for installing the switch on a table. Note The rubber feet on the bottom of the chassis should be left on for table installation.
Page 73: Installing The Switch In An Equipment Rack
66. Here is the procedure for installing the switch in a 19-inch equipment rack. Caution The chassis may be heavy and awkward to lift. Allied Telesis recommends that you get assistance when mounting the chassis in an equipment rack.
Page 74: Figure 25: Attaching The Equipment Rack Brackets
Chapter 4: Installing the Switches on a Table or in an Equipment Rack 3. Turn the switch over. 4. Attach the two rack mount brackets to the sides of the switch using the eight bracket screws included with the unit. Figure 25 and Figure 26 on page 75 illustrate the four possible bracket positions.
Page 75: Figure 26: Attaching The Equipment Rack Brackets (Continued)
x510 Series Installation Guide for Virtual Chassis Stacks Figure 26. Attaching the Equipment Rack Brackets (Continued) 5. While another person holds the switch in the equipment rack, secure it using standard equipment rack screws (not provided), as shown in Figure 27. Figure 27.
Page 76: Wiring The Dc Connectors On The At-X510-28Gsx-80 Switch
Chapter 4: Installing the Switches on a Table or in an Equipment Rack Wiring the DC Connectors on the AT-x510-28GSX-80 Switch The procedures in this section are for the AT-x510-28GSX-80 Switch which has DC power supplies. They explain how to connect the grounding and power wires to the DC connectors on the back panel of the switch.
Page 77: Connecting The Grounding Wire
Only one grounding post on the switch should be connected to the building protective earth. The second grounding post should not be used. Allied Telesis recommends using the grounding post for power supply 1 (PSU 1). 1. Strip an adequate amount of insulation from one end of the ground cable, for the ring lug.
Page 78: Figure 30: Attaching The Stranded Grounding Wire To The Ring Lug
4. Attach the grounding lug and wire to the grounding post and secure them with the nut removed in Step 3 and a 7mm wrench. Allied Telesis recommends tightening the nut to 15 in-lbs. Refer to Figure 32 on...
Page 79: Connecting The -48/-60Vdc And Return Wires
x510 Series Installation Guide for Virtual Chassis Stacks Figure 32. Installing the Grounding Wire 5. Connect the other end of the grounding wire to the building protective earth. 6. After installing the grounding wire, go to “Connecting the -48/-60VDC and RETURN Wires,” next. Connecting the After installing the grounding wire, connect the -48/-60VDC and RETURN wires by performing the following procedure:...
Page 80: Figure 33: Loosening The Two Captive Screws On The Dc Connector
Chapter 4: Installing the Switches on a Table or in an Equipment Rack Warning The power input must be provided by a SELV source only, per IEC60950. Do not connect to a centralized DC battery bank.  1. Use a 3mm flat-head screwdriver to loosen the two captive screws that secure the DC connector to the chassis.
Page 81: Figure 35: Loosening The Captive Screws On The Dc Connector
Figure 36. Stripping a Stranded Power Wire 5. Insert the black RETURN wire into the right connector and secure it by tightening the captive screw with a flat-head screwdriver. Allied Telesis recommends tightening the screw to 5 in-lbs. Refer to Figure 37.
Page 82: Figure 38: Inserting The -48/-60Vdc Wire
-48/-60VDC wire. Refer to Figure 36 on page 81. 7. Insert the red -48/-60VDC wire into the left connector and secure it by tightening the captive screw with a flat-head screwdriver. Allied Telesis recommends tightening the screw to 5 in-lbs. Refer to Figure 38.
Page 83: Figure 40: Securing The Dc Connector To The Switch
x510 Series Installation Guide for Virtual Chassis Stacks 9. Tighten the two captive screws on the sides of the DC connector to secure the connector to the switch. Refer to Figure 40. Figure 40. Securing the DC Connector to the Switch Caution Verify that the DC circuit is powered off before connecting the power wires from the switch to the circuit.
Page 84 Chapter 4: Installing the Switches on a Table or in an Equipment Rack...
Page 85: Chapter 5: Verifying The Status Of Vcstack
Chapter 5 Verifying the Status of VCStack The procedures in this chapter are: “Verifying the Status of VCStack” on page 86  “Activating the VCStack Feature” on page 87 ...
Page 86: Verifying The Status Of Vcstack
Chapter 5: Verifying the Status of VCStack Verifying the Status of VCStack Before you install the stacking transceivers to build the stack, you should first test the switches to determine whether the VCStack feature is enabled or disabled, and enable it on any units where it is disabled. On new switches, the feature should be activated because that is the default setting.
Page 87: Activating The Vcstack Feature
x510 Series Installation Guide for Virtual Chassis Stacks Activating the VCStack Feature Perform the following two procedures to activate the VCStack feature on switches that display the number “0” on their ID LEDs in the previous procedure. The tasks assume that you are continuing directly from the previous procedure and that the switch is powered on.
Page 88: Activating Vcstack
Chapter 5: Verifying the Status of VCStack Note The port settings are for a DEC VT100 or ANSI terminal, or an equivalent terminal emulator program. 4. Press Enter. You are prompted for a user name and password. 5. If this is the initial management session of the switch, enter “manager” as the user name and “friend”...
Page 89: Figure 45: Activating Vcstack With The Stack Enable Command
x510 Series Installation Guide for Virtual Chassis Stacks 3. Enter the STACK ENABLE command to activate VCStack on the switch, as shown in Figure 45: awplus(config)# stack enable % The device needs to be restarted for this change to take effect. awplus(config)# Figure 45.
Page 90 Chapter 5: Verifying the Status of VCStack 9. Check the ID LED and do one of the following: If the ID LED is displaying the number 1, 2, 3, or 4, VCStack is now  enabled on the switch. Power off the switch by either disconnecting the power cord or, for the DC powered AT-x510-28GSX-80 Switch, power off the DC circuit, and repeat the procedures in this chapter on the next switch.
Page 91: Chapter 6: Cabling The Stacking Ports
Chapter 6 Cabling the Stacking Ports This chapter contains the following procedures: “Cabling Switches with AT-StackXS/1.0 Transceivers” on page 92  “Cabling Switches with AT-StackOP/0.3 or AT-StackOP/9.0  Transceivers” on page 97...
Page 92: Cabling Switches With At-Stackxs/1.0 Transceivers
Chapter 6: Cabling the Stacking Ports Cabling Switches with AT-StackXS/1.0 Transceivers To cable the switches of the stack with AT-StackXS/1.0 transceivers, perform the following procedure: Warning A transceiver can be damaged by static electricity. Be sure to observe all standard electrostatic discharge (ESD) precautions, such as wearing an antistatic wrist strap, to avoid damaging the device.
Page 93: Figure 50: Removing The Dust Cover From The At-Stackxs/1.0 Transceiver
x510 Series Installation Guide for Stand-alone Switches Figure 50. Removing the Dust Cover from the AT-StackXS/1.0 Transceiver 4. Position the transceiver with the release tab on top and slide the transceiver into the slot, as shown in Figure 51 on page 94.
Page 94: Figure 51: Installing The At-Stackxs/1.0 Transceiver In Slot S1
Chapter 6: Cabling the Stacking Ports Release Figure 51. Installing the AT-StackXS/1.0 Transceiver in Slot S1 5. Remove the dust cover from the S2 slot in the next switch in the stack as shown in Figure 52 on page 95. Note The cable must cross over to different slots on the switches.
Page 95: Figure 52: Removing The Dust Plug From The S2 Slot
x510 Series Installation Guide for Stand-alone Switches Figure 52. Removing the Dust Plug from the S2 Slot 6. Remove the dust cover from the connector on the other end of the transceiver. 7. Position the transceiver with the release tab on the bottom and slide it into the slot until it clicks into place, as shown in Figure 53 on page 96.
Page 96: Figure 53: Installing The At-Stackxs/1.0 Transceiver In Slot S2
Chapter 6: Cabling the Stacking Ports Figure 53. Installing the AT-StackXS/1.0 Transceiver in Slot S2 8. Repeat this procedure to connect additional switches to the stack with AT-StackXS/1.0 transceivers. 9. To create the redundant path with the ring topology shown in Figure 19 on page 56 and Figure 20 on page 57, connect a stacking cable to the empty stacking slots on the top and bottom switches.
Page 97: Cabling Switches With At-Stackop/0.3 Or At-Stackop/9.0 Transceivers
x510 Series Installation Guide for Stand-alone Switches Cabling Switches with AT-StackOP/0.3 or AT-StackOP/9.0 Transceivers For guidelines to cabling the switches with AT-StackOP/0.3 or AT- StackOP/9.0 fiber optic transceivers, refer to “Planning a Stack” on page 67. To cable switches with fiber optic transceivers, perform the following procedure: 1.
Page 98: Figure 55: Installing The At-Stackop/0.3 Or At-Stackop/9.0 Transceiver
Chapter 6: Cabling the Stacking Ports Figure 55. Installing the AT-StackOP/0.3 or AT-StackOP/9.0 Transceiver 4. Remove the dust cover from the transceiver, as shown in Figure 56 on page 99.
Page 99: Figure 56: Removing The Dust Cover From A Stacking Transceiver
x510 Series Installation Guide for Stand-alone Switches Figure 56. Removing the Dust Cover from a Stacking Transceiver 5. Verify the position of the handle on the transceiver. If the transceiver is in the S1 slot, the handle should be in the upright position, as shown in Figure 57.
Page 100: Figure 58: Connecting The Fiber Optic Cable To The Stacking Transceiver
Chapter 6: Cabling the Stacking Ports Figure 58. Connecting the Fiber Optic Cable to the Stacking Transceiver 7. Repeat this procedure if the switch is to have two stacking transceivers. 8. Repeat this procedure on the other switches of the stack to install their stacking transceivers.
Page 101: Chapter 7: Powering On The Stack
Chapter 7 Powering On the Stack This chapter contains the following procedures: “Powering On the Switches Individually” on page 102  “Powering On the Switches Simultaneously” on page 105  “Verifying the Stack” on page 107  “Monitoring the Initialization Processes” on page 110 ...
Page 102: Powering On The Switches Individually
Chapter 7: Powering On the Stack Powering On the Switches Individually This procedure explains how you can control the assignment of the ID numbers of the switches by powering on the units one at a time during the initial power-on sequence. The first switch is assigned ID number 1, the next unit is assigned ID number 2, and so on.
Page 103: Figure 59: Plugging In The Ac Power Cords
Series Installation Guide for Stand-alone Switches appropriate power sources. The AT-x510-28GTX, AT-x510-28GPX, AT-x510-28GSX, AT-x510-52GTX, and AT-x510-52GPX models have two power supplies with separate connectors. The AT-x510L-28GT, AT-x510L-28GP, AT-x510L-52GT and AT-x510L-52GP models have one power supply with one connector. Figure 59. Plugging in the AC Power Cords For the DC powered AT-x510-28GSX-80 Switch, connect the grounding and power wires to the switch, as explained in “Wiring the...
Page 104 Chapter 7: Powering On the Stack Consider the following items as you power on the switch: Connecting the two power cords to power sources that are on  different circuits will provide power redundancy to the switch in the event a circuit fails. Refer to “Power Specifications”...
Page 105: Powering On The Switches Simultaneously
x510 Series Installation Guide for Stand-alone Switches Powering On the Switches Simultaneously If you want the switches of the stack to use their MAC addresses to automatically assign the ID numbers during the initial power-on sequence, all you have to do is power them on simultaneously, rather than one at a time as in the previous procedure.
Page 106 Chapter 7: Powering On the Stack For the DC powered AT-x510-28GSX-80 Switch, connect the grounding and power wires to the switch, as explained in “Wiring the DC Connectors on the AT-x510-28GSX-80 Switch” on page 76, and power on the DC circuits. Consider the following items as you power on a switch: Connecting the two power cords to power sources that are on ...
Page 107: Verifying The Stack
x510 Series Installation Guide for Stand-alone Switches Verifying the Stack To verify stack operations, perform the following procedure: 1. Establish a local management session on any switch in the stack. For instructions, refer to “Starting a Local Management Session” on page 87.
Page 108: Setting The Priority Numbers
Chapter 7: Powering On the Stack Otherwise, go to Chapter 8, “Cabling the Networking Ports” on  page 113, to continue with the installation. Setting the This procedure is optional. It explains how to configure the priority settings of the switches. Changing the priority settings protects the stack Priority Numbers configuration should you ever power on the stack with a new member switch that has a lower MAC address than an existing master or member...
Page 109: Figure 62: Returning To The Privileged Exec Mode
x510 Series Installation Guide for Stand-alone Switches awplus(config)# exit awplus# Figure 62. Returning to the Privileged Exec Mode 4. Enter the WRITE command to save your change in the configuration file. The switch displays the confirmation prompt in Figure 63. awplus# write Building configuration ...
Page 110: Monitoring The Initialization Processes
\ \_ __/ /| ______ | | ______ | \ ____ / /______/\____\ \/ /____________/ Allied Telesis Inc. AlliedWare Plus (TM) v5.4.2A Current release filename: x510-5.4.2a-20120727-1.rel Original release filename: x510-5.4.2A-20120727-1.rel Built: Fri Jul 27 04:11:42 NZST 2012 by: maker@maker04-build Mounting static filesystems...
Page 111: Figure 65: Switch Initialization Messages (Continued)
x510 Series Installation Guide for Stand-alone Switches Received event poefw.done Starting base/portmapper... Received event syslog.done Starting base/reboot-stability... Starting base/autofs-card... Checking system reboot stability... Starting base/cron... Starting base/appmond... Starting hardware/openhpi... Starting hardware/timeout... Starting base/inet... Starting base/modules... Received event modules.done Received event board.inserted Received event hardware.done Starting network/startup...
Page 112: Figure 66: Switch Initialization Messages (Continued)
Chapter 7: Powering On the Stack Received event network.activated Loading default configuration Warning: flash:/default.cfg does not exist, loading factory defaults. done! Received event network.configured awplus login: 21:12:34 awplus VCS[734]: Duplicate member-ID 1 detected for 0015.774f.ed30 and 0011.2233.4455 21:12:34 awplus VCS[734]: Automatically renumbering member-1 (0015.774f.ed30), selecting unused member-ID...
Page 113: Chapter 8: Cabling The Networking Ports
Chapter 8 Cabling the Networking Ports This chapter contains the following procedures: “Cabling the Twisted Pair Ports” on page 114  “Installing SFP and SFP+ Transceivers” on page 116 ...
Page 114: Cabling The Twisted Pair Ports
Chapter 8: Cabling the Networking Ports Cabling the Twisted Pair Ports Here are the guidelines to cabling the 10/100/1000Base-T twisted pair ports: The cable specifications for the 10/100/1000Base-T twisted pair  ports are listed in Table 1 on page 26. The connectors on the cables should fit snugly into the ports, and ...
Page 115 x510 Series Installation Guide for Stand-alone Switches The default duplex mode setting of Auto-Negotiation is not  appropriate for ports connected to network devices that do not support Auto-Negotiation and have a fixed duplex mode. You should disable Auto-Negotiation on those ports and set their duplex modes manually to avoid the possibility of duplex mode mismatches.
Page 116: Installing Sfp And Sfp+ Transceivers
SFP and SFP+ transceivers are hot-swappable. You may install  them while the chassis is powered on. Your Allied Telesis sales representative can provide you with a list  of supported transceivers for the line cards. The operational specifications and fiber optic cable requirements ...
Page 117: Figure 67: Removing The Dust Plug From An Sfp Slot
3. If you are installing the transceiver in a top slot, position the transceiver with the Allied Telesis label facing up. If you are installing the transceiver in a bottom slot, position the transceiver with the label facing down.
Page 118: Figure 68: Installing An Sfp Transceiver
Chapter 8: Cabling the Networking Ports Figure 68. Installing an SFP Transceiver Note If you are ready to attach the fiber optic cable to the transceiver, continue with the next step. Otherwise, repeat Step 1 through Step 4 to install the remaining SFP transceivers in the switch. 5.
Page 119: Figure 70: Positioning The Sfp Handle In The Upright Position
x510 Series Installation Guide for Stand-alone Switches SFP Handle Figure 70. Positioning the SFP Handle in the Upright Position 7. Connect the fiber optic cable to the transceiver, as shown in Figure 71. The connector on the cable should fit snugly into the port, and the tab should lock the connector into place.
Page 120: Installing Sfp And Sfp+ Modules
3. If you are installing the transceiver in a top slot, position the transceiver with the Allied Telesis label facing up. If you are installing the transceiver in a bottom slot, position the transceiver with the label facing down.
Page 121: Figure 73: Installing An Sfp Or Sfp+ Transceiver
x510 Series Installation Guide for Stand-alone Switches Figure 73. Installing an SFP or SFP+ Transceiver Note If you are ready to attach the fiber optic cable to the transceiver, continue with the next step. Otherwise, repeat Step 1 through Step 4 to install the remaining SFP or SFP+ transceivers in the line cards.
Page 122: Figure 75: Positioning The Sfp Or Sfp+ Handle In The Upright Position
Chapter 8: Cabling the Networking Ports SFP Handle Figure 75. Positioning the SFP or SFP+ Handle in the Upright Position 7. Connect the fiber optic cable to the transceiver, as shown in Figure 76. The connector on the cable should fit snugly into the port, and the tab should lock the connector into place.
Page 123: Chapter 9: Troubleshooting
This chapter contains suggestions on how to troubleshoot the switch if a problem occurs. Note For further assistance, please contact Allied Telesis Technical Support at www.alliedtelesis.com/support. Problem 1: The Switch ID LED on the front of the switch is off.
Page 124 Chapter 9: Troubleshooting Verify that VCStack is activated on the switches. For instructions,  refer to Chapter 5, “Verifying the Status of VCStack” on page 85. It could be that the switches have incompatible versions of the  management software. When a stack forms or a new switch is added to an existing stack, the master switch downloads its management software to member switches that do not have the same version.
Page 125 x510 Series Installation Guide for Stand-alone Switches If you are using SFP+ slots 27 or 28 on a 28-port switch or slots 51  and 52 on a 52-port switch, check that the VCStack feature is disabled on the switch. The VCStack feature has to be disabled before you can use the slots with regular SFP or SFP+ transceivers.
Page 126 The internal temperature of the switch has exceeded the normal  operating range and the switch may shut down. Contact your Allied Telesis sales representative for assistance. Problem 9: The AT-x510-28GPX, AT-x510L-28GP, AT-x510-52GPX, or AT-x510L-52GP Switch is not providing power to a PoE device.
Page 127 x510 Series Installation Guide for Stand-alone Switches Use the management software on the switch to determine whether  the PoE power setting for the port has been reduced to a value below the power requirements of the device. Try connecting the device to a different port on the switch. ...
Page 128 Chapter 9: Troubleshooting...
Page 129: Appendix A: Technical Specifications
Transceivers” on page 136 Physical Specifications Dimensions (H x W x D) Table 12. Product Dimensions AT-x510-28GTX (AC model) 4.4 cm x 44.0 cm x 32.3 cm (1.7 in. x 17.3 in. x 12.7 in.) AT-x510-28GPX (AC model) 4.4 cm x 44.0 cm x 39.8 cm (1.7 in.
Page 130: Table 13: Product Weights
AT-x510L-52GP (AC model) 4.4 cm x 44.0 cm x 32.3 cm (1.7 in. x 17.3 in. x 12.7 in.) Weights Table 13. Product Weights AT-x510-28GTX (AC model) 4.3 kg (9.5 lb.) AT-x510-28GPX (AC model) 5.8 kg (12.8 lb.) AT-x510-28GSX (AC model) 4.8 kg (10.6 lb.)
Page 131: Environmental Specifications
3,000 m (9,842 ft) Maximum Nonoperating Altitude 4,000 m (13,100 ft) Power Specifications Maximum Power Consumption Table 16. Maximum Power Consumption AT-x510-28GTX (AC model) 40 watts per input AT-x510-28GPX (AC model) 210 watts per input AT-x510-28GSX (AC model) 40 watts per input...
Page 132: Table 17: Input Voltages
Appendix A: Technical Specifications Input Voltages Table 17. Input Voltages AT-x510-28GTX (AC model) 100-240 VAC, 1.0A maximum, 50/ 60 Hz per input AT-x510-28GPX (AC model) 100-240 VAC, 3.0A maximum, 50/ 60 Hz per input AT-x510-28GSX (AC model) 100-240 VAC, 1.0A maximum, 50/...
Page 133: Certifications
x510 Series Installation Guide for Stand-alone Switches Certifications Table 18. Product Certifications EMI (Emissions) FCC Class A, EN55022 Class A, EN61000-3-2, EN61000-3-3, VCCI Class A, CISPR Class A, C-TICK, EMC (Immunity) EN55024 Electrical and Laser Safety EN60950-1 (TUV), UL 60950-1 ), EN60825 Compliance Marks , TUV, C-Tick...
Page 134: Table 19: Pin Signals For 10 And 100 Mbps
Appendix A: Technical Specifications Table 19 lists the pin signals for 10 and 100 Mbps. Table 19. Pin Signals for 10 and 100 Mbps MDI Signal MDI-X Signal Not used Not used Not used Not used Not used Not used Not used Not used Table 20 lists the pin signals when a port operating at 1000 Mbps.
Page 135: Rj-45 Style Serial Console Port Pinouts
x510 Series Installation Guide for Stand-alone Switches RJ-45 Style Serial Console Port Pinouts Table 21 lists the pin signals of the RJ-45 style serial Console port. Table 21. RJ-45 Style Serial Console Port Pin Signals Signal Looped to pin 8 Looped to pin 7 Transmit Data Ground...
Page 136: Fiber Optic Specifications For The At-Stackop/0.3 And At-Stackop/9.0 Transceivers
Appendix A: Technical Specifications Fiber Optic Specifications for the AT-StackOP/0.3 and AT-StackOP/ 9.0 Transceivers Table 22 lists the fiber optic port specifications for the AT-StackOP/0.3 transceiver. Table 22. Fiber Optic Port Specifications for the AT-StackOP/0.3 Module General Maximum Distances 33 m with 62.5/125 µm (core/ cladding) multimode fiber optic cable 300 m with 50/125 µm (core/...
Page 137: Table 23: Fiber Optic Port Specifications For The At-Stackop/9.0 Transceiver
x510 Series Installation Guide for Stand-alone Switches Table 23 lists the fiber optic port specifications for the AT-StackOP/9.0 transceiver. Table 23. Fiber Optic Port Specifications for the AT-StackOP/9.0 Transceiver General Maximum Distances 9 km Fiber Optic Cable 9/125 µm (core/cladding) single- mode fiber optic cable Transmitter Wavelength...
Page 138 Appendix A: Technical Specifications...
